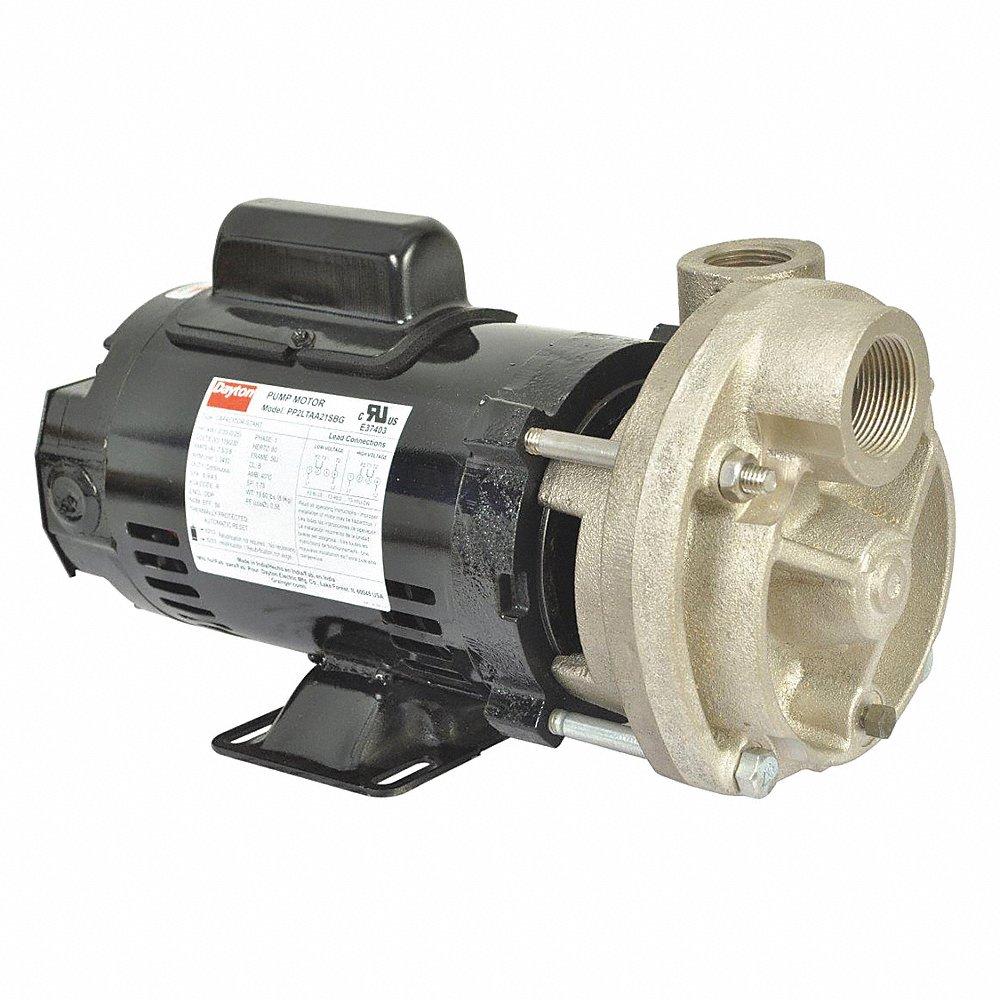

DAYTON 53EC05 Turbine Pump, 1 HP, 115/230V
Get it by Tuesday, Dec 23
10.00% off
€761.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Turbine pump |
| Best Efficiency Head | 75 ft. |
| Compatible Discharge Pipe Size | 1" |
| Compatible Intake Pipe Size | 1 1/4" |
| Compatible With Media Type | Non Flammable Liquids, Water |
| Connection Type | NPT |
| Discharge Rotation | 90° Increments |
| Discharge Rotation Increments | 90° |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Face Seal Material | Buna N, Carbon, Ceramic , Grade 304 |
| Flow Rate @ 10 Psi | 11.2 GPM |
| Flow Rate @ 100 Psi | 3 GPM |
| Flow Rate @ 140 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 160 Psi | Not Applicable |
| Flow Rate @ 180 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 10.9 GPM |
| Flow Rate @ 200 Psi | Not Applicable |
| Flow Rate @ 220 Psi | Not Applicable |
| Flow Rate @ 240 Psi | Not Applicable |
| Flow Rate @ 260 Psi | Not Applicable |
| Flow Rate @ 30 Psi | 10.3 GPM |
| Flow Rate @ 40 Psi | 9.8 GPM |
| Flow Rate @ 50 Psi | 8.6 GPM |
| Flow Rate @ 60 Psi | 7.3 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 4.3 GPM |
| Flow Rate @ 90 Psi | 3.4 GPM |
| For Media Type | Non-Flammable Liquids, Water |
| Housing Material | Cast Iron |
| Hp | 1 hp |
| Impeller Design | Regenerative Turbine |
| Impeller Material | Bronze |
| Impeller Type | Regenerative Turbine |
| Inlet Pressure | 150 psi |
| Installation Position | Horizontal |
| Intake And Discharge Size | 1 1/4", 1" |
| Manufacturer Warranty Length | 1 yr. |
| Max. Case Pressure | 200 psi |
| Max. Dia. Solids | 0.25 µm |
| Max. Flow Rate | 11.2 GPM |
| Max. Media Temp. | 230°F |
| Max. Motor Ambient Temp. | 104°F |
| Max. Rpm | 3450 RPM |
| Max. Specific Gravity | 1 |
| Media Type | Non Flammable Liquids, Water |
| Mfr. Part No. | 53EC05 |
| Min. Flow Rate | 3.4 GPM |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Designation | 56J |
| Motor Type | Capacitor Start/Run |
| Mounting Orientation | Horizontal |
| Nameplate Voltage | 115/230V AC |
| Npshr | 150 psi |
| Overall Height | 7 1/2" |
| Overall Width | 6 3/4" |
| Overload Protection | Yes |
| Overload Thermal Protection | Yes |
| Phase | Single |
| Pump Housing Material | Cast Iron |
| Seal Type | Mechanical |
| Shut Off Pressure | 120 psi |
| Shut Off Pressure (maximum) | 120 psi |
| Solid Diameter (maximum) | 0.25 µm |
| Specific Gravity (maximum) | 1 |
| Thermal Protection | Yes |
| Wetted Material Grade | Grade 316 , Stainless Steel, Bronze, Buna N, Carbon, Cast Iron, Ceramic |
Shipping Info:
| Ship weight (kg) | 23.18 |
Product Variants
| Product | Model | Flow Rate @ 10 Psi | Flow Rate @ 20 Psi | Flow Rate @ 30 Psi | Motor Enclosure Design | Nameplate Voltage | Shut Off Pressure | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4JPE9 | 18.7 GPM | 17.8 GPM | 16.8 GPM | Totally Enclosed Fan Cooled | - | 120 psi | 1" | 1" | €1.24 | |
 |
4JPF6 | 7.6 GPM | 7.3 GPM | 7.1 GPM | Open Dripproof | 208-230/460V AC | 120 psi | 1 1/4" | 1" | €1,591.67 | |
 |
4JPF9 | 9.7 GPM | 9.2 GPM | 8.8 GPM | Totally Enclosed Fan Cooled | 208-230/460V AC | 140 psi | 1 1/4" | 1" | €1,721.31 | |
 |
4JPG1 | 22.5 GPM | 21.5 GPM | 20.5 GPM | Totally Enclosed Fan Cooled | 115/208-230V AC | 100 psi | 1 1/4" | 1" | €2,160.54 | |
 |
4JPG2 | 22.5 GPM | 21.5 GPM | 20.5 GPM | Totally Enclosed Fan Cooled | 208-230/460V AC | 100 psi | 1 1/4" | 1" | €1,736.40 | |
 |
4UP50 | 3.35 GPM | 3.15 GPM | 2.95 GPM | Open Dripproof | 115/208-230V AC | 125 psi | 3/4" | 3/4" | €1,288.35 | |
 |
4UP58 | 25 GPM | 23.7 GPM | 22.8 GPM | Totally Enclosed Fan Cooled | 208-230/460V AC | 85 psi | 1" | 1" | €2,073.97 |
