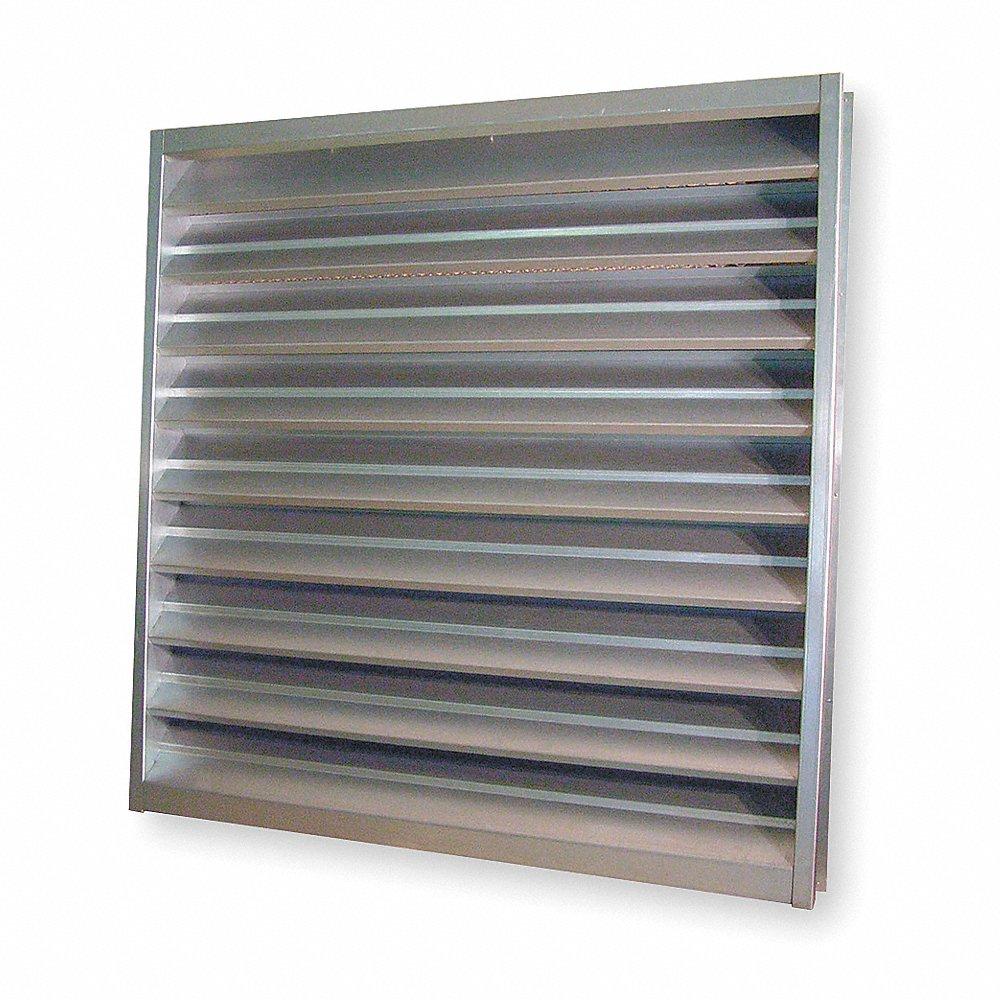

DAYTON 53DR09 Intake Louver, 42 Inch Height, 42 Inch Width, 5543 CFM Max. Exhaust
Get it by Tuesday, Dec 23
10.00% off
€696.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Intake Louver |
| Blade Angle | 45° |
| Blade Type | Non-Drainable |
| Finish | Mill |
| Flange Width | 1 1/4" , Not Applicable |
| Frame Depth | 4" |
| Frame Height | 41 1/2" |
| Frame Type | Hat Channel |
| Frame Width | 41 1/2" |
| Free Area | 5.4 sq. ft. |
| Includes | Bird Screen |
| Inside Height | 37" |
| Inside Width | 39" |
| Intake Louver Inside Width | 39" |
| Intake Louver Outside Height | 41 1/2" |
| Intake Or Exhaust Application | Exhaust, Intake |
| Louver Item | Modular Intake Louver |
| Louver Material | Galvannealed Steel |
| Louver Type | Stationary Blade |
| Material | Galvanized Steel |
| Maximum Air Velocity | 4875 FPM |
| Maximum Exhaust | 5543 CFM |
| Maximum Frame Width | 41 1/2" |
| Maximum Intake | 3876 CFM |
| Maximum Outside Width | 41 1/2" |
| Minimum Frame Width | 41 1/2" |
| Minimum Outside Width | 41 1/2" |
| Mounting Style | Flush Mount |
| Number Of Blades | 9 |
| Outside Height | 41 1/2" |
| Outside Width | 41 1/2" |
| Point Of Water Penetration | 709 FPM |
| Rough Opening Height | 42" |
| Rough Opening Width | 42" |
Shipping Info:
| Ship weight (kg) | 27.77 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Rough Opening Height | Rough Opening Width | Free Area | Max. Intake | Max. Exhaust | Number Of Blades | Flange Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2FTX2 | Aluminum | 24" | 36" | 3.2 sq. ft. | 3030 CFM | 4330 CFM | 3 | 2" | €601.92 | |
 |
2FTY1 | Galvanized Steel | 24" | 36" | 3.2 sq. ft. | 3030 CFM | 4330 CFM | 3 | 2" | €437.98 | |
 |
5NKK0 | Aluminum | 48" | 48" | - | 5484 CFM | 7834 CFM | 10 | 1 1/4" | €1,022.17 | |
 |
20UA58 | Aluminum | 18" | 42" | - | - | - | 3 | 1 1/2" | €651.50 | |
 |
20UA18 | Aluminum | 54" | 54" | 11.1 sq. ft. | - | - | 11 | 1 1/2" | €1,598.81 | |
|
20UA65 | Aluminum | 18" | 48" | 2.8 sq. ft. | - | - | 3 | 1 1/2" | €693.85 | |
|
20UA13 | Aluminum | 36" | 36" | 4.4 sq. ft. | - | - | 7 | 1 1/2" | €809.14 |
