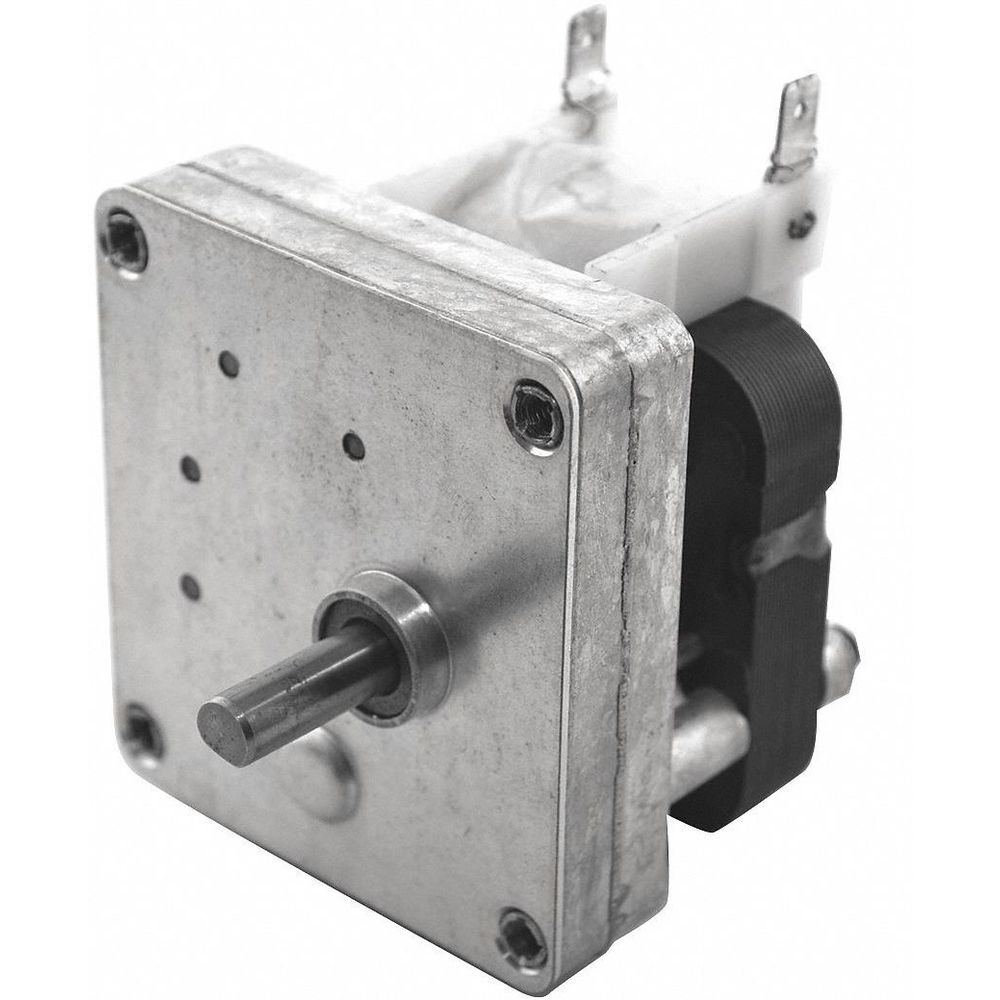

DAYTON 52JE22 AC Gearmotor 230 Nameplate RPM 5.8, Max. Torque 35.0 Inch-Lbs Enclosure Open
Item: CD2LHQModel: 52JE22
7 In Stock
Ships within 2 days via
10.00% off
€80.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | AC Gearmotor |
| Amps | 0.26A |
| Application | Agriculture, Amusement Devices, Controls, Conveyors, Dvd Kiosks, Food And Restaurant Equipment, Ice Dispensing, Industrial Machinery, Ingredient Motors, Mail Sorting, Packaging, Pellet And Corn Stoves, Power Transmission, Printing Press, Pumps, Security Systems, Ticket Dispensing, Valve Actuators, Vending, Water Softeners, X-Ray Equipment |
| Base To Center Of Shaft | 1.58" |
| Bearing Type | Sintered Bronze Sleeve |
| Capacitor Required | No |
| Enclosure Type | Open |
| Finish | Unpainted |
| Frequency | 50 Hz |
| Full Load Amps | 0.26A |
| Gear Case Material | Die Cast Zinc |
| Gear Material | Sintered Steel |
| Gear Ratio | 439.3:1 |
| Gear Type | Spur |
| Gearmotor Enclosure | Open |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |
| Gears | Spur |
| Housing Material | Die Cast Zinc |
| Housing Material Finish | Unpainted |
| Input Horsepower | 0.1 hp |
| Input Hp | 1/10 hp |
| Length Less Shaft | 2 3/4" |
| Lubrication | Grease Filled |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Torque | 35 lbs.-in. |
| Motor Enclosure | Open Air Over |
| Motor Insulation Class | Class A |
| Motor Shaft Design | Flat |
| Motor Type | Shaded Pole |
| Mount Hole Center-to-center Length | 2 1/2" |
| Mount Hole Center-to-center Width | 2.38" |
| Mount Type | Any Position |
| Mounting Orientation | Any Angle |
| Nameplate Rpm | 5.8 RPM |
| Nameplate Rpm Range | 0-15 RPM |
| No Load Rpm | 7.9 RPM |
| No. Of Output Shafts | 1 |
| Number Of Brake Discs Required | 0 |
| Number Of Output Shafts | 1 |
| Operating Voltage | 230V AC |
| Output Shaft Dia. | 5/16" |
| Output Shaft Diameter | 5/16" |
| Output Shaft Height | 1.58" |
| Output Shaft Length | 1" |
| Overall Height | 3" |
| Overall Length | 3 3/4" |
| Overall Width | 2 3/4" |
| Overhung Load | 30 lbs. |
| Overhung Load Capacity | 30 lbs.-ft. |
| Phase | 1 |
| Reversible Shaft Output | No |
| Rotation | CW |
| Rpm @ 50 Hz | 5.8 |
| Rpm @ 50 Hz | 5.8 RPM |
| Service Factor | 1 |
| Shaft | Single Output |
| Shaft Dia. | 0.312" |
| Shaft Length | 1" |
| Shaft Orientation | Parallel |
| Shaft Type | Single |
| Standards | Ul Recognized |
| Starting Torque | 27 lbs.-in. |
| Thermal Protection | Impedance |
| Type | AC Gearmotor , Shaded Pole |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 9.53 |
| Ship width (cm) | 6.99 |
| Country of Origin | MX |
Product Variants
| Model | Mounting Orientation | Operating Voltage | Gear Ratio | Overhung Load Capacity | Rotation | Base To Center Of Shaft | Nameplate Rpm Range | Brake Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1LNF7 | Any Angle | 115V AC | 762:1 | 56 lbs.-ft. | CW | 1.38" | 0-15 RPM | - | €141.41 | |
| 1LNF8 | Any Angle | 115V AC | 529:1 | 65 lbs.-ft. | CW | 1.38" | 0-15 RPM | - | €158.33 | |
| 1LNF9 | Any Angle | 115V AC | 126:1 | 15 lbs.-ft. | CW | 1.38" | 16-30 RPM | - | €168.16 | |
| 1LNG1 | Any Angle | 115V AC | 63:1 | - | - | - | 51-75 RPM | - | €168.03 | |
| 1LNG2 | Any Angle | 115V AC | 63:1 | 10 lbs.-ft. | CW | 1.38" | 0-15 RPM | - | €151.07 | |
| 1MBF3 | Any Angle | 115V AC | 3231:1 | 41 lbs.-ft. | CW | 1.41" | 0-15 RPM | - | €136.13 | |
| 1MBF4 | Any Angle | 115V AC | 1526:1 | 41 lbs.-ft. | CW | 1.41" | 0-15 RPM | - | €142.00 |
