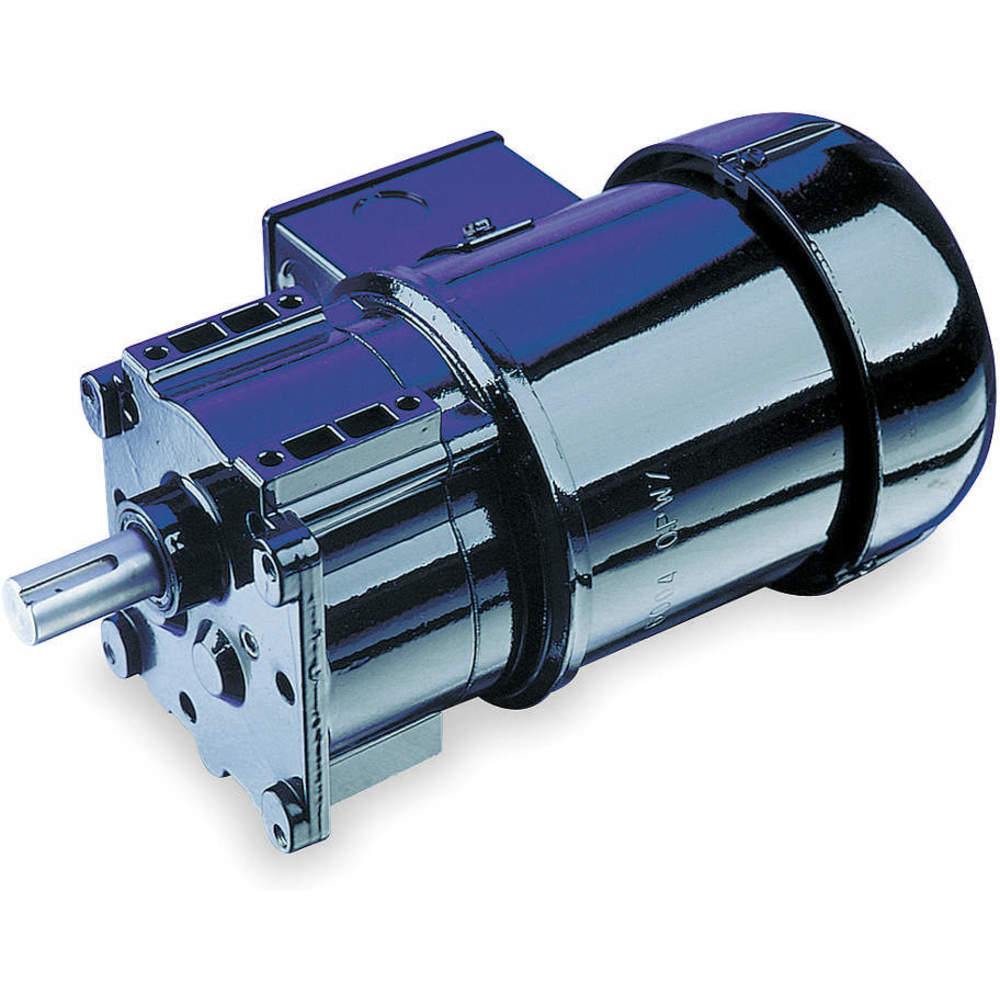

DAYTON 4ZJ52 Ac Gearmotor 60 Rpm Tefc 230v
60 RPM
1/4 hp
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,150.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Agma Gear Class | Class 9 |
| Amps | 0.75A |
| Application | Inverter Duty |
| Base To Center Of Shaft | 3 1/2" |
| Dimension A | 3/4" |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frequency | 50/60 Hz |
| Full Load Amps | 0.75A |
| Gear Case Material | Die Cast Aluminium |
| Gear Material | Hardened Steel |
| Gear Ratio | 28:1 |
| Gear Type | Helical, Spur |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |
| Housing Material | Die Cast Aluminium |
| Input Hp | 1/4 hp |
| Inverter Rated | Yes |
| Keyway Depth | 1/8" |
| Keyway Width | 3/16" |
| Length Less Shaft | 11 7/25" |
| Lubrication | Lifetime Oil Sealed |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Torque | 244 lbs.-in. |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Type | 3-Phase |
| Mount Hole Center-to-center Length | 1 1/2" |
| Mount Hole Center-to-center Width | 4" |
| Mount Type | Any Position |
| Mounting | All Position |
| Mounting Orientation | Any Angle |
| Nameplate Rpm | 60 RPM |
| Nameplate Rpm Range | 51-75 RPM |
| No. Of Output Shafts | 1 |
| Number Of Output Shafts | 1 |
| Operating Voltage | 230V AC |
| Output Shaft Dia. | 3/4" |
| Output Shaft Diameter | 3/4" |
| Output Shaft Height | 3 1/2" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 5.13" |
| Overall Width | 6" |
| Overhung Load | 257 lbs. |
| Overhung Load Capacity | 257 lbs.-ft. |
| Phase | 3 |
| Rotation | CW/CCW |
| Rpm Range | 51-75 RPM |
| Seal Type | Lip Type on Input, Output Shaft |
| Seals | Lip Type On Input, Output Shaft |
| Shaft Dia. | 3/4" |
| Shaft Orientation | Parallel |
| Thermal Protection | Thermostat |
| Type | Three Phase |
Shipping Info:
| Ship weight (kg) | 8.39 |
| Ship height (cm) | 16.26 |
| Ship length (cm) | 37.59 |
| Ship width (cm) | 20.83 |
| HS code | 8501514020 |
| Country of Origin | US |
Product Variants
| Model | Rotation | Operating Voltage | Gear Ratio | Nameplate Rpm Range | Motor Enclosure | Overhung Load Capacity | Mounting Orientation | Inverter Rated | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4FDZ4 | CW/CCW | 208-230/460V AC | 11:1 | 151-200 RPM | Open Air Over | 245 lbs.-ft. | Horizontal | - | €1,941.09 | |
| 4Z384 | CW/CCW | 230/460V AC | 64:1 | 16-30 RPM | Totally Enclosed Fan Cooled | 325 lbs.-ft. | Any Angle | No | €1,679.02 | |
| 4Z385 | CW/CCW | 230/460V AC | 43:1 | 31-50 RPM | Totally Enclosed Fan Cooled | 325 lbs.-ft. | Any Angle | No | €1,479.61 | |
| 4Z386 | CW/CCW | 230/460V AC | 29:1 | 51-75 RPM | Totally Enclosed Fan Cooled | 325 lbs.-ft. | Any Angle | No | €1,557.35 | |
| 4Z387 | CW/CCW | 230/460V AC | 19:1 | 76-100 RPM | Totally Enclosed Fan Cooled | 325 lbs.-ft. | Any Angle | No | €1,557.35 | |
| 4Z388 | CW/CCW | 230/460V AC | 11:1 | 151-200 RPM | Totally Enclosed Fan Cooled | 325 lbs.-ft. | Any Angle | No | €1,679.02 | |
| 4Z389 | CW/CCW | 230/460V AC | 6:1 | 251-500 RPM | Totally Enclosed Fan Cooled | 325 lbs.-ft. | Any Angle | No | €1,716.65 |
