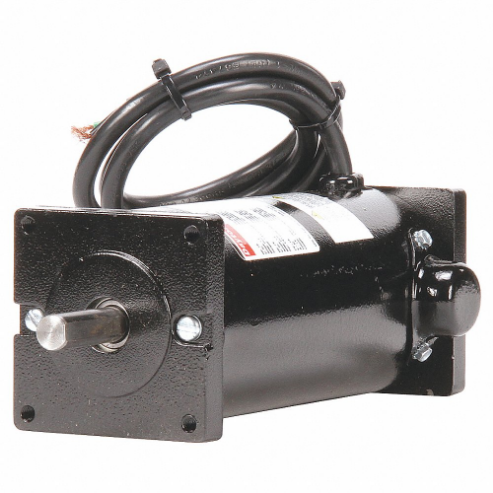

DAYTON 4Z528 Dc Motor Pm Tenv 1/6 Hp 1800 Rpm 90vdc
Item: AE2QXXModel: 4Z528
7 In Stock
Ships within 2 days via
10.00% off
€465.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | DC Permanent Magnet Motor |
| Armature Amps | 1.8A |
| Base Mounting O.c. | 7-7/16 x 2" |
| Bearing Type | Ball |
| Bolt Circle Dia. | 3 11/16" |
| Brush Material | Carbon |
| Brush Type | Carbon |
| Duty Cycle | Continuous |
| Enclosure Type | Totally Enclosed Non Ventilated |
| Face Mounting O.c. | 2-5/8 x 2-5/8 |
| Frame | Non-Standard |
| Full Load Amps | 1.72A |
| Full Load Torque | 5.6 lbs.-in. |
| Full Load Torque | 5.6 in.-lbs. |
| Hp | 1/6 hp |
| Ins. Class | Class F |
| Insulation Class | Class B |
| Length | 9 3/8" |
| Length Less Shaft | 8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Purpose |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet Dc |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | Universal |
| Motor Mounting Type | Face/Base |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Permanent Magnet DC |
| Mounting Stud Location | 4/Bottom |
| Mounting Type | Face/Base |
| No. Of Studs | 4 |
| Nominal Efficiency | 79.9% |
| Overall Length | 9 7/16" |
| Removable Base | No |
| Rpm | 1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Standards | Ul Recognized (E47479) |
| Stud Length | 7/16" |
| Stud Quantity | 4 |
| Stud Size | 1/4"-20 |
| Thermal Protection | None |
| Voltage | 90V DC |
| Weight | 5.5 lbs. |
Shipping Info:
| Ship weight (kg) | 4.37 |
| Ship height (cm) | 14.73 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 14.22 |
| HS code | 8501314000 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Hp | Rpm | Motor Application | Armature Amps | Shaft Dia. | Full Load Amps | Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1Z851E | 180V DC | 1/6 hp | 1800 RPM | General Purpose | 0.9A | 1/2" | 0.86A | Ball | €490.32 | |
 |
CCC-003 | 12V DC | 1/35 hp | 2350 RPM | HVAC/R | 3.8A | 1/4" | 3.8A | Sleeve | €113.05 | |
 |
3XE19E | 12/24V DC | 1/18 hp, 1/44 hp | 1800/4300 RPM | General Purpose | 2.4A | 1/4" | 2.61A | Ball | €429.57 | |
|
3XE20F | 12/24V DC | 1/9 hp, 1/20 hp | 1725/4000 RPM | General Purpose | 5.1A | 5/16" | 4.51A | Ball | €444.25 | |
|
3XE21E | 90V DC | 1/53 hp | 2500 RPM | General Purpose | 0.3A | 1/4" | 0.29A | Ball | €417.00 | |
 |
3XE22E | 90V DC | 1/27 hp | 1800 RPM | General Purpose | 0.5A | 5/16" | 0.46A | Ball | €447.51 | |
 |
4Z140E | 90V DC | 1/8 hp | 1800 RPM | General Purpose | 1.5A | 1/2" | 1.28A | Ball | €489.40 |
