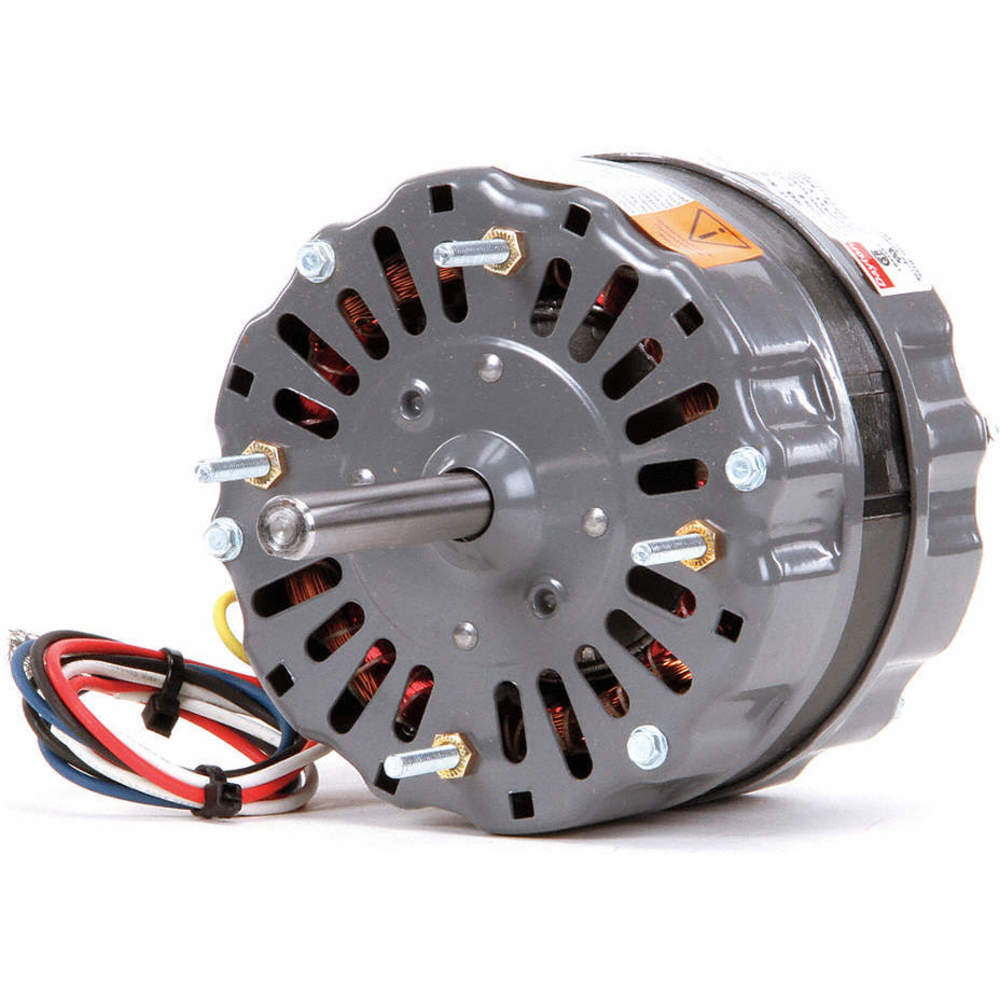

DAYTON 4YU34 Motor Psc 1/8 Hp 1550 Rpm 115v 42y Oao
Item: AE2PGAModel: 4YU34
7 In Stock
2.6A
Ships within 2 days via
10.00% off
€300.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Direct Drive Blower Motor |
| Bearing Type | Ball |
| Body Dia. | 5 1/8" |
| Bolt Circle Dia. | 3 7/8" |
| Capacitor Included | Yes |
| Capacitor Required | Included |
| Duty Cycle | Continuous |
| Frame | 42Y |
| Frequency | 60 Hz |
| Full Load Amps | 2.6A |
| Hp | 1/8 hp |
| Includes | Mounted 5 MFD 370V AC Capacitor |
| Insulation Class | Class A |
| Length Less Shaft | 3 5/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Extended Studs |
| Motor Mounting Type | Ring, Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Sub Application | Direct Drive |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting | Stud |
| Mounting Holes | (4) #10-32 |
| Mounting Stud Location | Shaft End |
| Mounting Stud Pattern | 2 3/4" x 2 3/4" |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1550/1300/1050 RPM |
| No. Of Mounting Holes | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 3 |
| No. Of Studs | 4 |
| Number Of Mounting Holes | 4 |
| Number Of Shafts | 1 |
| Number Of Studs | 4 |
| Phase | 1 |
| Replacement For | 4YC66, 4YC67, 5DVP6, 5DVP7 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 3/4" |
| Shaft Type | Flat |
| Stud Location | Shaft End |
| Stud Pattern | 2 3/4" x 2 3/4" |
| Stud Size | #10-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 4.07 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 18.8 |
| Ship width (cm) | 14.99 |
| HS code | 8501404040 |
| Country of Origin | US |
Product Details:
Dayton 4YU34 motor is used in heating, ventilation and air conditioning systems. They come with a capacitor that reduces the power consumed for a given load, making them more energy-efficient than shaded pole motors.
Features:
- Dayton 4YU34 permanent split capacitor motor has a rigid base for installation on flat surfaces and pedestals.
- It has a forward curve style wheel and a rectangular outlet to maximise the airflow.
- It features Class A motor insulation for safety and an open motor enclosure for cool operation.
- This direct drive blower motor offers all position mounting with minimum noise and vibration.
- This permanent split capacitor (PSC) motor has a continuous duty cycle for efficient operation.
Standards and Approvals:
- UL
- CSA
Frequently Asked Questions:
Q. What are the different types of motor rotation direction codes?
A. CWLE, CCWLE, CWSE & CCWSE are some of the different types of motor rotation direction codes. These codes indicate whether the motor shaft rotates clockwise (CW) or counter-clockwise (CCW) as seen from the shaft end (SE) or from the lead end (LE).
Q. What is the maximum ambient temperature of this Dayton 4YU34 motor?
A. This Dayton 4YU34 motor provides a maximum ambient temperature of 40 Degrees C.
Q. What is the motor shaft design of this Dayton 4YU34 motor?
A. Dayton 4YU34 motor offers a flat motor shaft design.
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Motor Type | Shaft Dia. | Motor Shaft Rotation | Hp | No. Of Speeds | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1AGF8 | 115V AC | 1550 RPM | Shaded Pole | 1/2" | Counter Clockwise Shaft End | 1/17 hp | 3 | 2 3/4" | €288.91 | |
 |
1AGF9 | 115V AC | 1550 RPM | Permanent Split Capacitor | 1/2" | Counter Clockwise Shaft End | 1/8 hp | 3 | 3 3/4" | €309.38 | |
 |
3LU71 | 115V AC | 1075 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/6 hp | 4 | 6" | €179.41 | |
 |
3LU72 | 208-230V AC | 1075 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/6 hp | 4 | 5 13/16" | €263.33 | |
 |
3LU73BG | 115V AC | 1625 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/4 hp | 3 | 6" | €346.96 | |
 |
3LU74 | 208-230V AC | 1625 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/4 hp | 3 | 6" | €379.29 | |
 |
3LU75 | 115V AC | 1075 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/4 hp | 4 | 6" | €319.51 |
