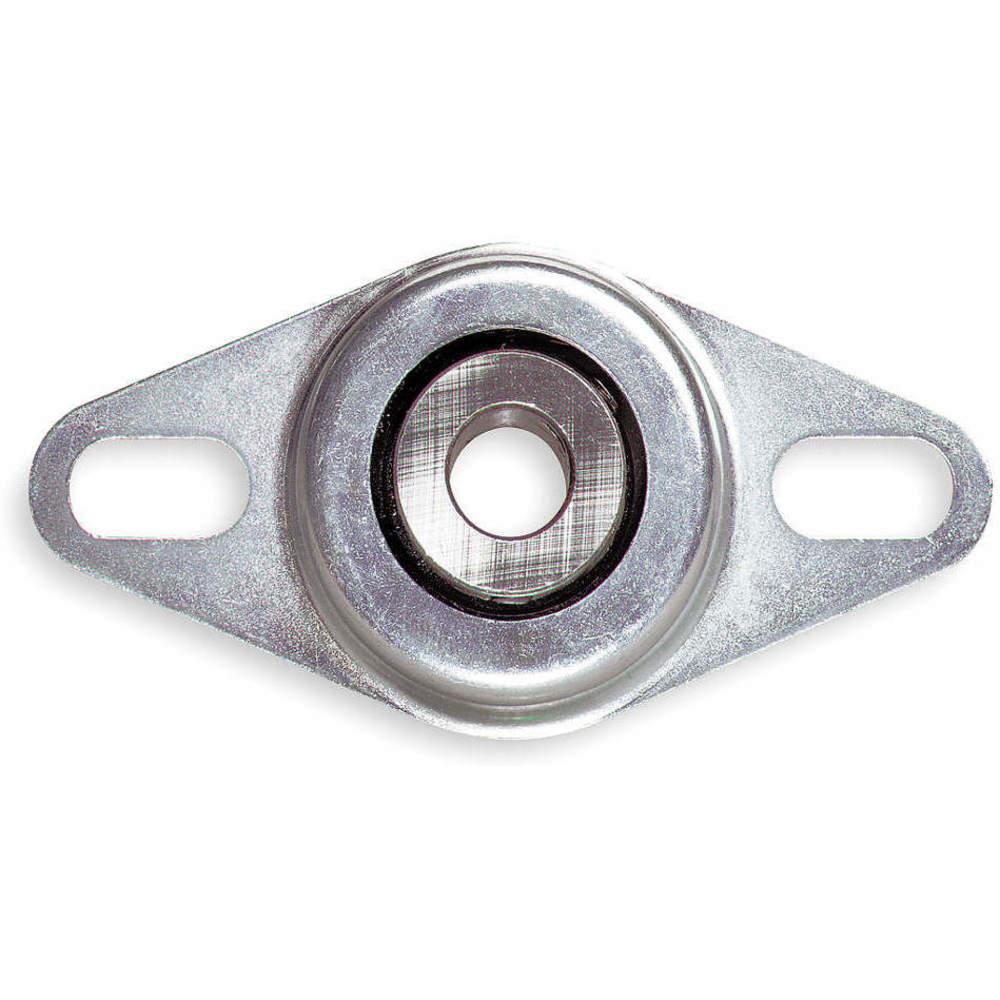

DAYTON 4X730 Flange Mount Bearing 1 Inch Bore
Item: AE2EXCModel: 4X730
7 In Stock
Ships within 2 days via
10.00% off
€48.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flange Mount Bearing |
| Bearing Housing Material Type | Pressed Steel |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bolt Center To Center Length | 3 3/8" |
| Bolt Hole Size | 0.438" |
| Bolt Size | 7/16" |
| Bore Dia. | 1" |
| Bore Dia. Tolerence | +0.001" |
| Bore Diameter Tolerance | 0.001", 0.0005" |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Dimension B | 4 1/2" |
| Dimension C | 3 3/8" |
| Dimension D | 2 1/2" |
| Dimension E | 3 3/8" |
| Dimension F | 1 1/8" |
| Dimension H | 1/16" |
| Dimension J | 7/16" |
| Dimension L | 1-1/8 |
| Dimension L | 1 1/8" |
| Dynamic Load Capacity | 3153 lbf. |
| Expansion Type | Fixed |
| Features | Ball Bearing Is Pre-Lubricated And Made To Abec-1 Tolerance, Bearing Inserts Are Encased In Non-Conductive, Oil Resistant Rubber Liner Which Corrects Upto A 2° Misalignment While Reducing Vibration And Noise, Neoprene Seal Keeps Contaminants Out Allowing For Usage In Wet Or Dry Conditions, One-Piece Steel Housing Has A Rust-Proof Plated Finish, Wide Inner Race Locks Securely To The Shaft With Two Set Screws |
| Finish | Rustproof Plated |
| Grade | Grade 52100 |
| Housing Material | Steel |
| Housing Material Finish | Rustproof Plated |
| Housing Material Grade | 52100 |
| Housing Type | Rhombus |
| Includes | (2) Set Screws |
| Includes Mounting Hardware | Yes |
| Insert | Ball Bearing |
| Insert Finish | Chrome Plated |
| Insert Material | Alloy Steel |
| Insert Type | Ball |
| Insert Type | Radial Ball |
| Lock Type | Set Screw |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Material | Steel |
| Maximum Misalignment Angle | 2° |
| Maximum Speed | 3500 RPM |
| Maximum Temperature | 200°F |
| Minimum Temperature | -30°F |
| Mount Hole Center-to-center Height | 3 3/8" |
| Mount Hole Center-to-center Length | 3 3/8" |
| Mount Hole Size | 7/16" |
| Mounting Bolt Size | 7/16" |
| Mounting Hole Center | 3 3/8" |
| Number Of Bolts | 2 |
| Number Of Mount Holes | 2 |
| Overall Height | 1 1/8" |
| Overall Length | 4 1/2" |
| Overall Width | 2 1/2" |
| Resistance Properties | Non Conductive |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Shaft Locking Type | Set Screws |
| Static Load Capacity | 1768 lbs. |
| Static Radial Load Capacity | 1768 lbf. |
| System Of Measurement | Inch |
| Temp. Range | -30°F to +200°F |
| Type | Flange Mount |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 2.86 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 6.35 |
| HS code | 8483208040 |
| Country of Origin | CN |
Product Variants
| Model | Housing Material | Bore Dia. | Overall Length | Overall Width | Mount Hole Center-to-center Length | Mount Hole Center-to-center Height | Overall Height | Bearing Insert Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1A396 | Zinc Die Cast | 1/2" | 3 1/4" | 2" | 2 1/2" | 2 1/2" | 1 1/16" | Radial Ball | €44.58 | |
| 1A397 | Zinc Die Cast | 5/8" | 3 1/4" | 2" | 2 1/2" | 2 1/2" | 1 1/16" | Radial Ball | €61.84 | |
| 1A398 | Zinc Die Cast | 3/4" | 3 5/8" | 2 1/4" | 2 13/16" | 2 13/16" | 1 1/8" | Radial Ball | €61.82 | |
| 1A399 | Zinc Die Cast | 1" | 3 7/8" | 2 1/2" | 3" | 3" | 1 3/16" | Radial Ball | €42.61 | |
| 1A400 | Steel | 1/2" | 5" | 3" | 4" | 4" | 1 3/4" | Radial Ball | €61.35 | |
| 1A401 | Steel | 5/8" | 5" | 3" | 4" | 4" | - | - | €61.52 | |
| 1A402 | Steel | 3/4" | 5" | 3" | 4" | 4" | 1 3/4" | Radial Ball | €67.06 |
