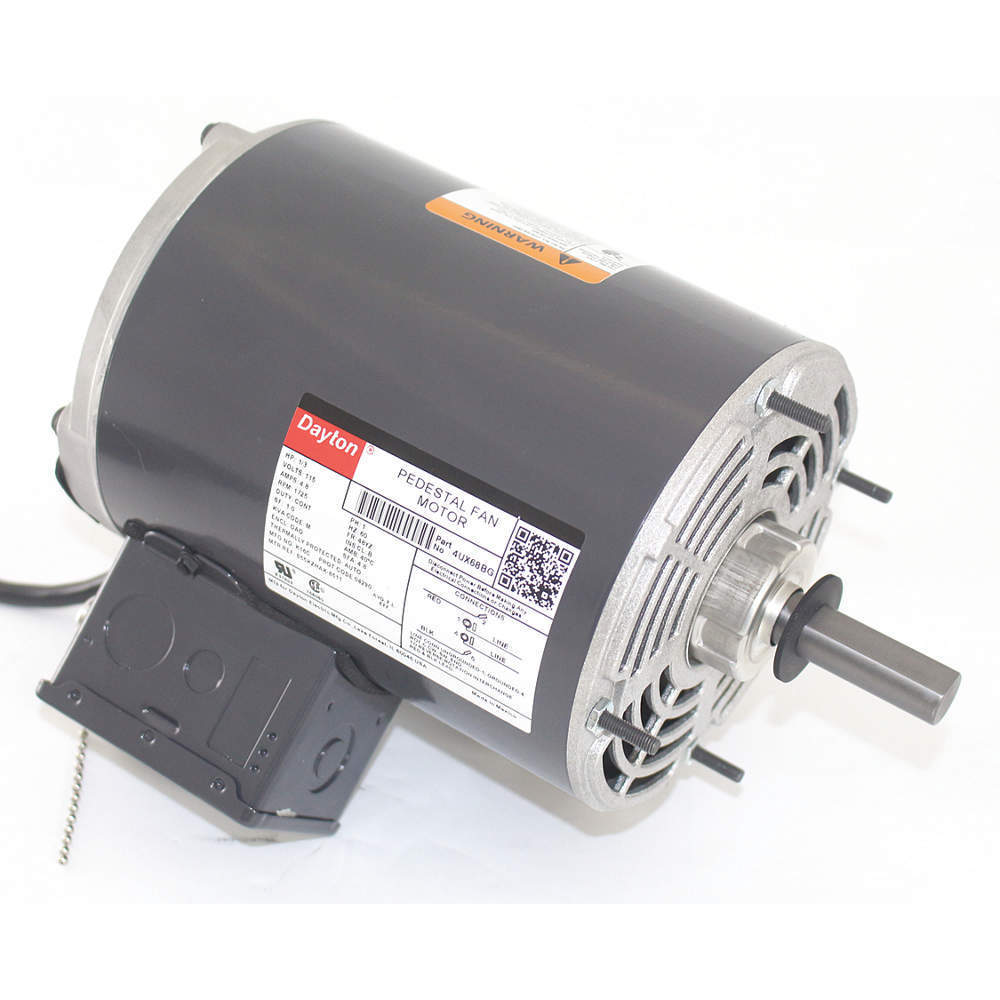

DAYTON 4UX68 Fan Motor Split-ph 1/3 Hp 1725 115v.48yz
Get it by Monday, Aug 31
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€436.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pedestal Fan Motor |
| 10 Ft. Cord And Pull Chain Switch | Yes |
| Ambient Temp. | 40°C |
| Application | HVAC/R |
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Capacitor Included | No |
| Capacitor Required | No |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Frame | 48YZ |
| Frequency | 60 Hz |
| Full Load Amps | 4.8A |
| Hp | 1/3 hp |
| Ins. Class | Class B |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC, R |
| Motor Bearings | Ball |
| Motor Design | Split Phase |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Yoke |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | CW, CCW |
| Motor Sub Application | Pedestal Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Mounting Type | Yoke |
| Nameplate Speed | 1725 RPM |
| No. Of Speed | 1 |
| No. Of Speeds | 1 |
| Overall Length | 10" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2" |
| Speed | 1701-1800 RPM |
| Thermal Protection | Automatic |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 7.6 |
| Ship height (cm) | 23.62 |
| Ship length (cm) | 29.97 |
| Ship width (cm) | 20.07 |
| HS code | 8501404040 |
| Country of Origin | US |
Product Details:
- 10 Ft. Cord & Pull Chain Switch (Yes)
Product Variants
| Product | Model | Voltage | Hp | No. Of Speeds | Nameplate Speed | Full Load Amps | Shaft Dia. | Speed | 10 Ft. Cord And Pull Chain Switch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3M469 | 115V AC | 1/3 hp | 2 | 1075 RPM | 5.3A | 1/2" | 1001-1100 RPM | No | €329.43 | |
 |
3M504 | 115V AC | 1/4 hp | 2 | 1075 RPM | 3.1A | 1/2" | 1001-1100 RPM | No | €267.41 | |
 |
3M505 | 115V AC | 1/2 hp | 2 | 1075 RPM | 7.2A | 5/8" | - | No | €338.00 | |
 |
4C354 | 115V AC | 1/4 hp | 2 | 1075/875 RPM | 2.8A | 1/2" | 1001-1100 RPM | Yes | €364.90 | |
 |
4UX59 | 115V AC | 1/2 hp | 1 | 825 RPM | 6.4A | 5/8" | 0-1000 RPM | No | €410.37 | |
 |
4UX60 | 115V AC | 1/4 hp | 2 | 1075 RPM | 3.1A | 1/2" | 1001-1100 RPM | Yes | €341.15 | |
 |
4UX61 | 115V AC | 1/4 hp | 2 | 1075 RPM | 3.1A | 1/2" | 1001-1100 RPM | Yes | €327.88 |
