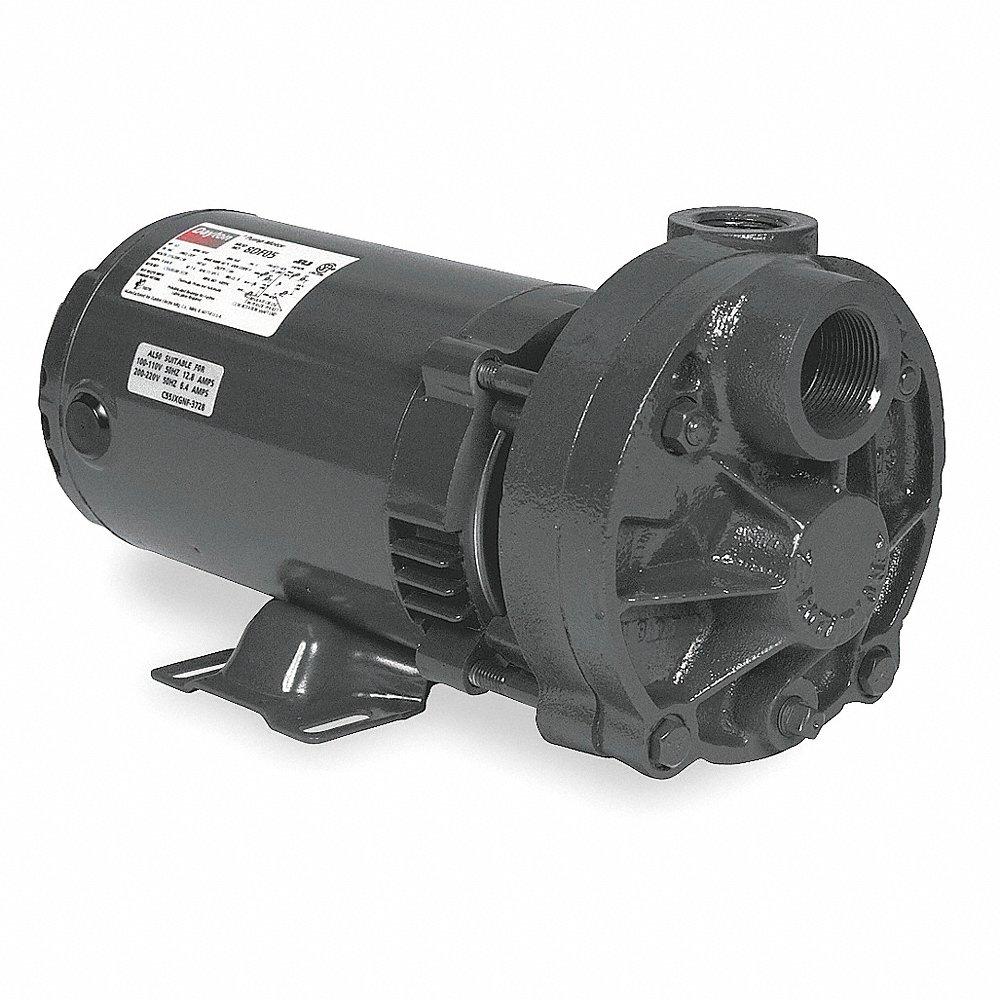

DAYTON 4UP56 Turbine Pump, 2 HP, 115/208-230V
Get it by Tuesday, Aug 25
5.00% off
€2,188.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Turbine pump |
| Best Efficiency Head | 70 ft. |
| Compatible Discharge Pipe Size | 1" |
| Compatible Intake Pipe Size | 1" |
| Compatible With Media Type | Water |
| Connection Type | NPT |
| Discharge Rotation | 90° Increments |
| Discharge Rotation Increments | 90° |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Face Seal Material | Buna N, Carbon, Ceramic |
| Flow Rate @ 10 Psi | 21.2 GPM |
| Flow Rate @ 100 Psi | 13.5 GPM |
| Flow Rate @ 120 Psi | 12 GPM |
| Flow Rate @ 140 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 160 Psi | Not Applicable |
| Flow Rate @ 180 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 46.2 GPM |
| Flow Rate @ 200 Psi | Not Applicable |
| Flow Rate @ 220 Psi | Not Applicable |
| Flow Rate @ 240 Psi | Not Applicable |
| Flow Rate @ 260 Psi | Not Applicable |
| Flow Rate @ 30 Psi | 18.5 GPM |
| Flow Rate @ 40 Psi | 18.2 GPM |
| Flow Rate @ 50 Psi | 17.3 GPM |
| Flow Rate @ 60 Psi | 16.5 GPM |
| Flow Rate @ 70 Psi | 15.4 GPM |
| Flow Rate @ 80 Psi | 15 GPM |
| Flow Rate @ 90 Psi | 14.2 GPM |
| For Media Type | Water |
| Housing Material | Cast Iron |
| Hp | 2 hp |
| Impeller Design | Regenerative Turbine |
| Impeller Material | Bronze |
| Impeller Type | Regenerative Turbine |
| Included | Cast Casing |
| Inlet Pressure | 200 psi |
| Intake And Discharge Size | 1", 1" |
| Max. Case Pressure | 300 psi |
| Max. Dia. Solids | 25 µm |
| Max. Flow Rate | 21 GPM |
| Max. Shut Off Pressure | 110 psi |
| Max. Solid Dia. | 25 µm |
| Max. Specific Gravity | 1 |
| Media Type | Water |
| Min. Flow Rate | 13 GPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 56C |
| Motor Type | Capacitor Start |
| Nameplate Voltage | 115/208-230V AC |
| Npshr | 200 psi |
| Outlet | 1" |
| Overall Height | 8.63" |
| Overall Width | 8 1/2" |
| Phase | 1 |
| Pump Housing Material | Cast Iron |
| Shut Off Pressure | 110 psi |
| Wetted Material | Bronze, Buna N, Carbon, Cast Iron, Ceramic , Bronze, Buna N, Carbon, Ceramic, Ci |
Shipping Info:
| Ship weight (kg) | 29.25 |
| Ship height (cm) | 21.92 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 21.59 |
| Country of Origin | US |
Product Variants
| Product | Model | Hp | Flow Rate @ 10 Psi | Flow Rate @ 30 Psi | Max. Flow Rate | Min. Flow Rate | Flow Rate @ 40 Psi | Flow Rate @ 50 Psi | Flow Rate @ 70 Psi | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4JPF6 | 3/4 hp | 7.6 GPM | 7.1 GPM | 7.6 GPM | 4.8 GPM | 6.8 GPM | 6.4 GPM | Not Applicable | €1,498.05 | |
 |
4JPF9 | 1 1/2 hp | 9.7 GPM | 8.8 GPM | 9.7 GPM | 4.7 GPM | 8.3 GPM | 7.8 GPM | Not Applicable | €1,620.06 | |
 |
4JPG1 | 2 hp | 22.5 GPM | 20.5 GPM | 22.5 GPM | 7.4 GPM | 19.4 GPM | 18.3 GPM | Not Applicable | €2,033.45 | |
 |
4JPG2 | 2 hp | 22.5 GPM | 20.5 GPM | 22.5 GPM | 7.4 GPM | 19.4 GPM | 18.3 GPM | Not Applicable | €1,634.25 | |
 |
4UP50 | 1/3 hp | 3.35 GPM | 2.95 GPM | 3.3 GPM | 2.2 GPM | 2.8 GPM | 2.65 GPM | 2.25 GPM | €1,297.43 | |
 |
4UP58 | 2 hp | 25 GPM | 22.8 GPM | 25 GPM | 19 GPM | 39 GPM | 21.7 GPM | 18.8 GPM | €2,088.61 | |
|
4UP66 | 7 1/2 hp | 41.5 GPM | 39.8 GPM | 41 GPM | 36 GPM | 39 GPM | 38.3 GPM | 36.4 GPM | €5,050.44 |
