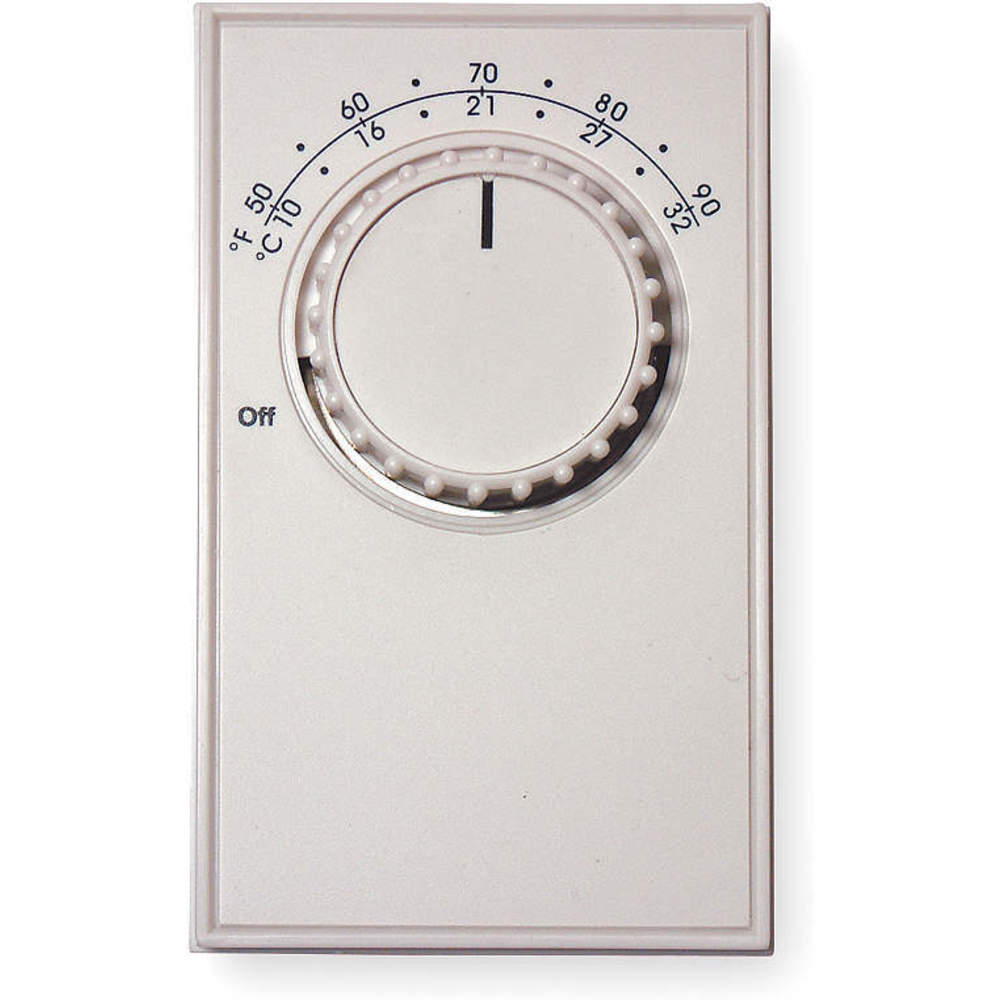

DAYTON 4PU48C Thermostat Line Volt
Item: AD9DTPModel: 4PU48CCross Ref: 4PU48
7 In Stock
Ships within 2 days via
10.00% off
€69.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line Volt Mechanical Tstat |
| Application | Heat Only |
| Bi-metal Actuator | Bi Metal Actuator |
| Color | White |
| Compatible System Type | Electric Heating |
| Contact Rating | 120-277V AC |
| Contact Rating Resistive @ 120v | 22A |
| Contact Rating Resistive @ 240v | 22A |
| Control Range | +50°F to +90°F |
| Control Type | Exposed Dial |
| Depth | 1 1/2" |
| Differential | +2°F to +4°F |
| Differential Type | Fixed |
| Display Type | Analog |
| Enclosure Color | White |
| Fan Settings | No Fan Setting |
| Full Load Amps @ 120v | 15A |
| Full Load Amps @ 120v Ac | 22A |
| Full Load Amps @ 240v Ac | 22A |
| Full Load Amps @ 240vac | 10A |
| Height | 4 3/4" |
| Housing Color | White |
| Housing Material | Plastic |
| Includes Positive Off | Yes |
| Inductive Amps @ 120v | 4.5A |
| Inductive Amps @ 120v | 13.8A |
| Inductive Amps @ 240v | 4.5A |
| Inductive Amps @ 240v | 10A |
| Locked Rotor Amps @ 120v | 82.8A |
| Locked Rotor Amps @ 240v | 60A |
| Maximum Control Temperature | 90°F |
| Minimum Control Temperature | 50°F |
| Mounting Direction | Vertical |
| Number Of Heating Stages | 1 |
| Number Of Poles | 2 |
| Number Of Switches | 1 |
| Overall Depth | 1 1/2" |
| Overall Height | 4 3/4" |
| Overall Width | 2 7/8" |
| Sensor Type | Bi Metallic Spring |
| Switch Action | Open On Rise |
| System Settings | On Off |
| Temp. Control Range | +50°F to +90°F |
| Temp. Differential | 2°F to 4°F |
| Temp. Sensitivity | -2°F to +2°F |
| Temp. Sensitivity | +/-2 Degrees F |
| Temperature Readout | Yes |
| Temperature Scale | Fahrenheit, Celsius |
| Thermostat Type | Line Voltage |
| Voltage | 120-277V AC |
| Voltage Range | 120-277V AC |
| Width | 2 3/4" |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 13.46 |
| Ship length (cm) | 9.14 |
| Ship width (cm) | 8.89 |
| HS code | 9032100030 |
| Country of Origin | CN |
Product Variants
| Product | Model | Switch Action | Temp. Control Range | Voltage | Depth | Switch Type | Height | Full Load Amps @ 120v | Locked Rotor Amps @ 120v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

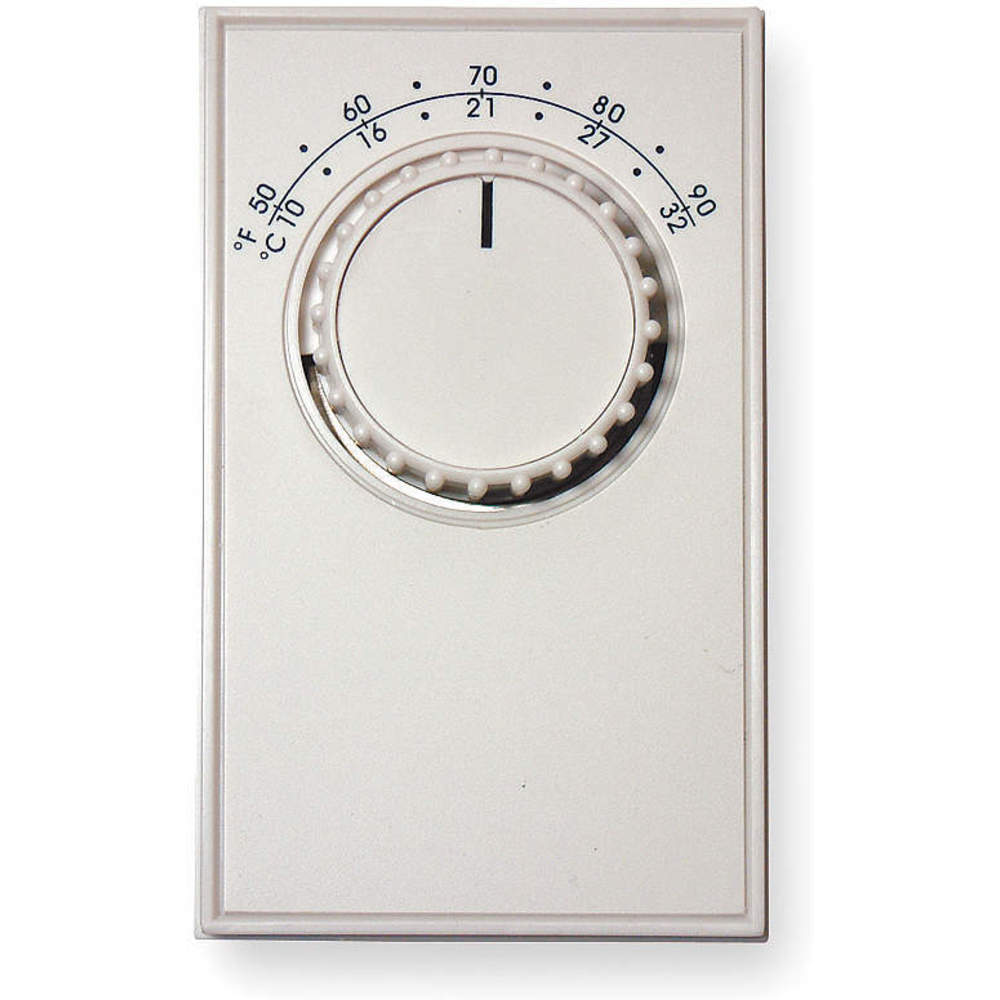

4PU49C | Open On Rise | +50°F to +90°F | 120-277V AC | 1 1/2" | SPST | - | 15A | 82.8A | €72.01 | |
 |

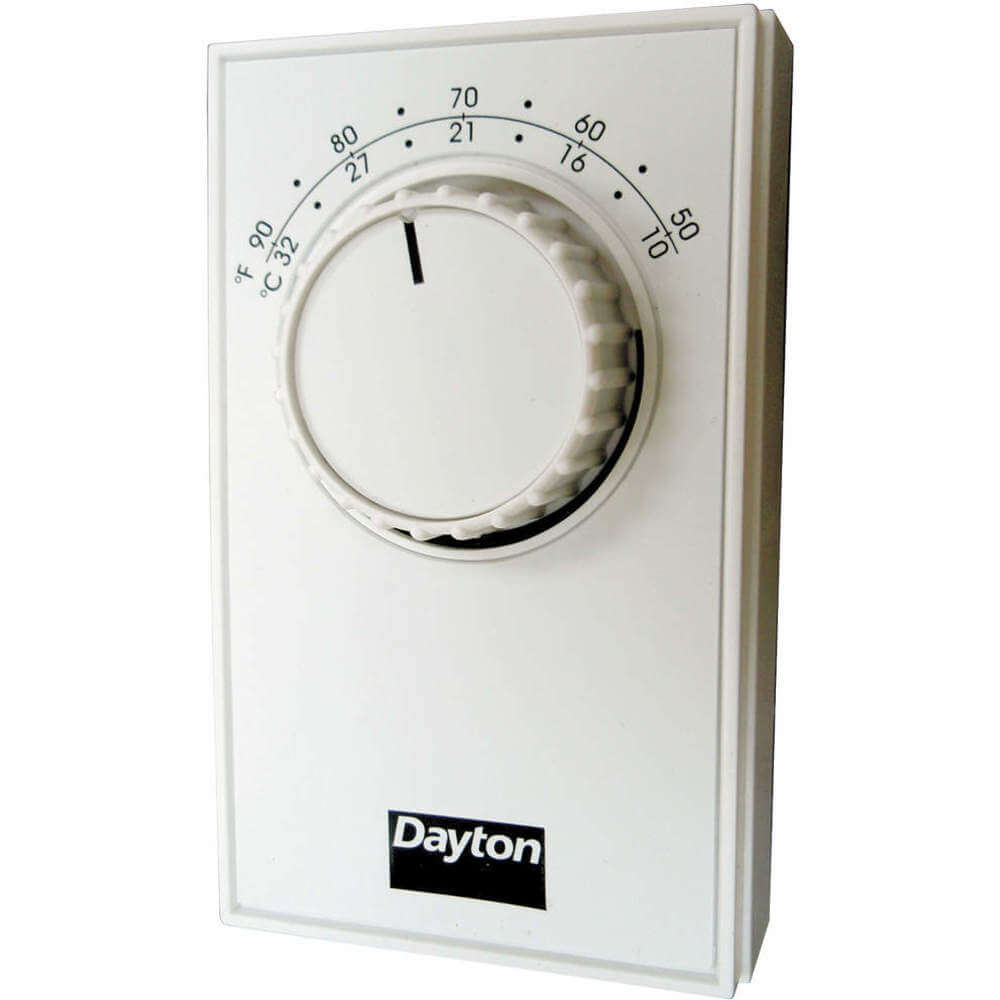

6GVX8C | Close On Rise | +50°F to +90°F | 120-277V AC | 1 1/2" | SPST | - | 22A | 82.8A | €76.44 | |
 |
10N203 | Close On Rise | +60°F to +120°F | 120V AC | 1 7/8" | 2 SPST | 4 3/16" | 10A | 3A | €81.27 |
