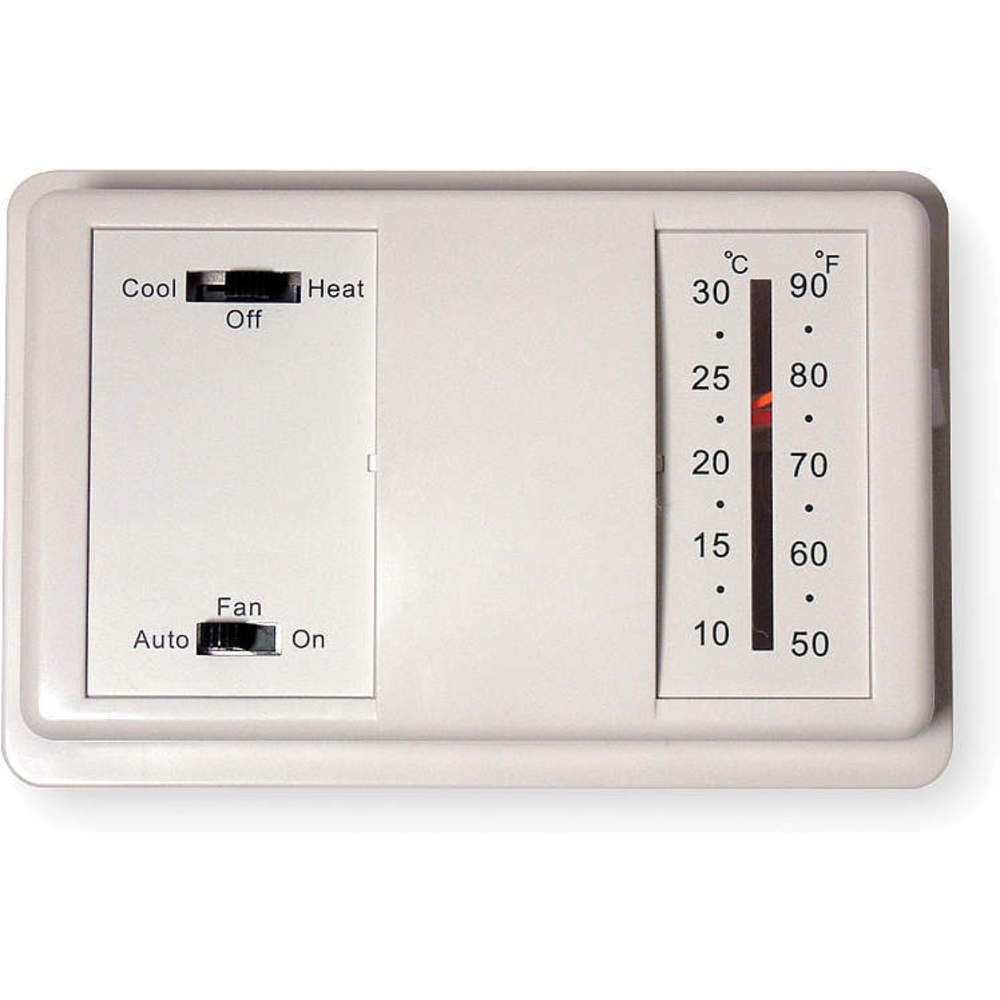

DAYTON 4PU47 Low V Thermostat 1h 1c White
Item: AD9DTNModel: 4PU47
7 In Stock
Ships within 2 days via
10.00% off
€49.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Low Voltage Thermostat |
| 750mv Compatible | Yes |
| Application | Heat And Cool |
| Automatic Changeover | No |
| Battery Backup | No |
| Changeover Type | Manual |
| Color | White |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump With Aux, Millivolt |
| Control Range | +50°F to +90°F |
| Control Type | Slide Switch |
| Dehumidification Control | No |
| Depth | 1 5/16" |
| Differential Temp. | +2°F to +3°F |
| Differential Type | Fixed |
| Digit Size | Standard |
| Display Type | Analog |
| Dual Transformer Compatible | Yes |
| Electrical Connection Type | Hardwired |
| Fan Settings | Auto-On |
| Fan Switching | Auto-On |
| Features | Mercury Free |
| Height | 5" |
| Housing Color | White |
| Humidification Control | No |
| Includes Positive Off | Yes |
| Key Pad Lockout | No |
| Maximum Control Temperature | 90°F |
| Mercury Free | Yes |
| Millivolt Compatible | Yes |
| Minimum Control Temperature | 50°F |
| Mounting | Horizontal And Vertical |
| Mounting Direction | Horizontal, Vertical |
| Number Of Cooling Stages - Conventional System | 1 |
| Number Of Cooling Stages - Heat Pump System | 1 |
| Number Of Heating Stages (conventional System) | 1 |
| Number Of Heating Stages - Heat Pump System | 1 |
| Overall Depth | 1 5/16" |
| Overall Height | 5" |
| Overall Width | 3 1/4" |
| Power Method | Hardwired |
| Shape | Rectangle |
| Stages | 1 H/1 C Conventional |
| Stages Heat Pump | 1 H/1 C Heat Pump |
| Stages Heating/cooling | 1 H/1 C Conventional, 1 H/1 C Heat Pump |
| System Settings | Cool-Heat-Off |
| System Switching | Heat-Cool-Off |
| Temp. Differential | 2°F to 3°F |
| Temperature Limiting | No |
| Temperature Readout | No |
| Temperature Scale | Fahrenheit |
| Temporary Program Override | No |
| Temporary Temperature Hold | No |
| Terminal Designations | G, Rc, Rh, W, Y |
| Thermostat Type | Low Voltage |
| Type | Low Voltage |
| Voltage | 20-30V AC |
| Width | 3 1/4" |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 3.33 |
| Ship width (cm) | 8.26 |
| HS code | 9032100030 |
| Country of Origin | CN |
Product Details:
- 750mV Compatible (Yes)
- Automatic Changeover (No)
- Dual Transformer Compatible (Yes)
