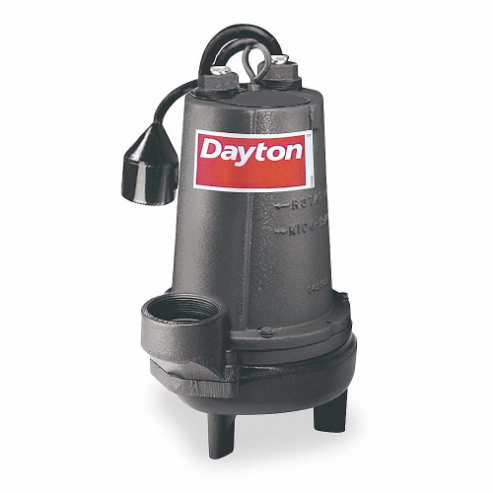

DAYTON 4LE22 Sewage Ejector Pump, 1 1/2 HP, 220V AC, 335 GPM Flow Rate at 10 Ft. of Head
Get it by Wednesday, Dec 24
10.00% off
€2,539.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sewage Ejector Pump |
| Agency Compliance | CSA |
| Amps | 16A |
| Body Dia. | 16 23/32" |
| Body Material | Cast Iron |
| Cord Length | 25 ft. |
| Cord Length - Pumps | 25 ft. |
| Discharge Dia. | 3" |
| Flow Rate @ 10 Ft. | 335 GPM |
| Flow Rate @ 10 Ft. Of Head | 335 GPM |
| Flow Rate @ 15 Ft. | 295 GPM |
| Flow Rate @ 15 Ft. Of Head | 295 GPM |
| Flow Rate @ 20 Ft. | 240 GPM |
| Flow Rate @ 20 Ft. Of Head | 240 GPM |
| Housing Material | Cast Iron |
| Hp | 1 1/2 hp |
| Impeller Material | Cast Iron |
| Impeller Material - Pumps | Cast Iron |
| Input Phase Ac | 1 |
| Max. Dia. Solids | 2 1/2" |
| Max. Head | 39 ft. |
| Max. Head - Pumps | 39 ft. |
| Max. Liquid Temp. | 77°F |
| Max. Solid Dia. | 2 1/2" |
| Motor Type | Psc |
| Off Point | 14 7/20" |
| On Point | 23.35" |
| Outlet | 3" Npt |
| Outlet Size | 3" |
| Outlet Type | NPT |
| Overall Height | 21 1/4" |
| Phase | 1 |
| Phase - Pumps | 1 |
| Pump Body Material | Cast Iron |
| Pump Type | Automatic |
| Rpm | 1750 RPM |
| Shaft Seal Material | Carbon Ceramic |
| Shaft Seal Material - Pumps | Carbon Ceramic |
| Switch Actuation | Tether Float |
| Switch Electrical Connection | Integral |
| Switch Type | Tether |
| Switch Type - Pumps | Tether |
| Thermal Protection | Yes |
| Type | Automatic |
| Voltage | 240V AC |
Shipping Info:
| Ship weight (kg) | 57.15 |
| Ship height (cm) | 53.98 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Product Variants
| Product | Model | Switch Actuation | Hp | Flow Rate @ 10 Ft. | Body Dia. | Flow Rate @ 20 Ft. | Outlet Size | Overall Height | Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4LE12 | Vertical Float | 4/10 hp | 95 GPM | 16 23/32" | 37 GPM | 2" | 16 3/4" | 1750 RPM | €1,055.06 | |
 |
4LE16 | No Switch Included | 1 1/2 hp | 335 GPM | 16 23/32" | 240 GPM | 3" | 21 1/4" | 1750 RPM | €5,735.67 | |
 |
4LE21 | No Switch Included | 1 hp | 195 GPM | 16 23/32" | 130 GPM | 2" | 21 1/4" | 1750 RPM | €2,203.84 | |
 |
4HU86 | Tether Float | 1 1/2 hp | - | 12 5/8" | 145 GPM | 2" | 19 1/16" | 3450 RPM | €2,771.98 | |
 |
4HU83 | No Switch Included | 1 hp | - | 12 5/8" | 135 GPM | 2" | 19 1/16" | 3450 RPM | €2,182.10 | |
 |
4LE19 | No Switch Included | 2 hp | 375 GPM | 16 23/32" | 290 GPM | 3" | 21 1/4" | 1750 RPM | €5,962.38 | |
|
4HU85 | No Switch Included | 1 1/2 hp | - | 12 5/8" | 145 GPM | 2" | 19 1/16" | 3450 RPM | €2,687.97 |
