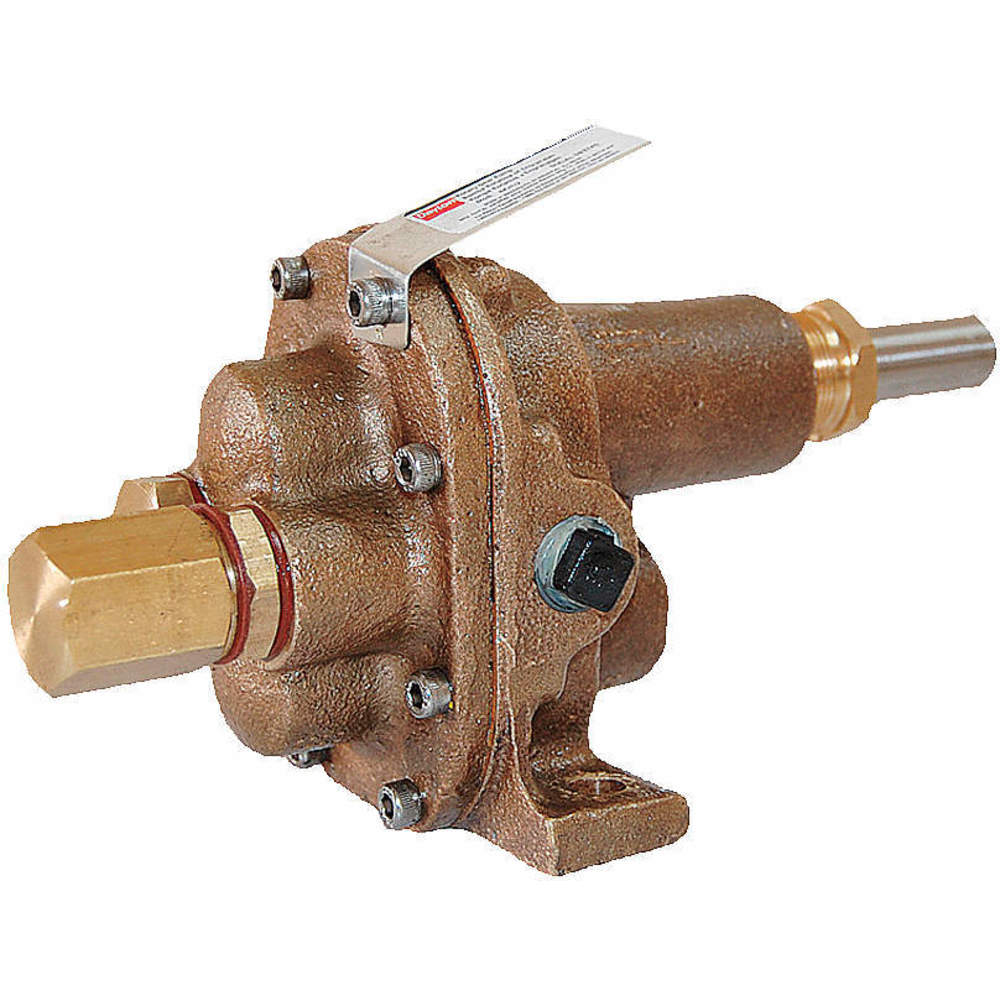

DAYTON 4KHJ3 Rotary Gear Pump Head 1 Inch 1 Hp
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€575.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rotary Gear Pump Head |
| Body Material | Bronze |
| Compatible Motor Frame | Not Applicable |
| Connection Size | 1" |
| Connection Type | NPT |
| Design | Pedestal |
| Duty Rating | Light |
| Flow Rate | 24.8 GPM |
| Flow Rate @ 100 Psi | 23.1 GPM |
| Flow Rate @ 125 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 24 GPM |
| Flow Rate @ 25 Psi | 24.7 GPM |
| Flow Rate @ 40 Psi | 24 GPM |
| Flow Rate @ 50 Psi | 24.5 GPM |
| Flow Rate @ 60 Psi | 23.9 GPM |
| Flow Rate @ 75 Psi | 24.3 GPM |
| Flow Rate @ 80 Psi | 23.4 GPM |
| Gear | Bronze |
| Gear Design | Spur |
| Gear Material | Bronze |
| Gear Type | Spur |
| Gpm @ 100 Psi | 23.1 |
| Gpm @ 25 Psi | 24.7 |
| Gpm @ 50 Psi | 24.5 |
| Gpm @ 60 Psi | 23.9 |
| Gpm @ 75 Psi | 24.3 |
| Gpm @ 80 Psi | 23.4 |
| Gpm @ Freeflow | 24.8 |
| Gpm @ Freeflow @ 1725 Rpm | 24.8 |
| Grade | Grade 304 |
| Height | 5 1/4" |
| Housing Material | Bronze |
| Hp @ 100 Psi | 3 hp |
| Hp @ 25 Psi | 1 1/2 hp |
| Hp @ 50 Psi | 2 hp |
| Hp @ 75 Psi | 2 hp |
| Hp @ Free Flow | 1 1/2 hp |
| Hp @ Free Flow @ 1725 Rpm | 3 1/9 |
| Hp @ Free Flow @ 1725 Rpm | 1 1/2 hp |
| Hp Required | 3 hp |
| Includes | Relief Valve |
| Length | 9 1/8" |
| Max. Motor Speed | 1725 RPM |
| Max. Operating Pressure | 100 psi |
| Max. Operating Temperature | 210°F |
| Max. Pressure | 100 psi |
| Max. Suction Lift | 19.5 ft. |
| Max. Viscosity | 550 SUS |
| Min. Operating Temperature | -20°F |
| Motor Hp | 3 hp |
| Motor Mounting Type | Pedestal |
| O-ring | Buna N |
| O-ring Material | Not Applicable |
| Operating Temp. Range | -20°F to +210°F |
| Overall Height | 5.3" |
| Overall Length | 9.1" |
| Overall Width | 4" |
| Port Size | 1" |
| Pump Housing Material | Bronze |
| Pump Material | Bronze |
| Pump Rpm | 1725 |
| Recommended Motor Hp | 3 hp |
| Relief Valve | Yes |
| Relief Valve | With |
| Seal Material | Kevlar, PTFE |
| Seal Type | Packing |
| Shaft Dia. | 5/8" |
| Shaft Height | 3 4/7" |
| Shaft Height (in.) | 3-9/16 |
| Shaft Length | 3 5/8" |
| Shaft Material | Stainless Steel |
| Shaft Outside Dia. | 5/8" |
| Suction Lift (ft.) @ 1725 Rpm | 19.5 |
| Temp. Range | -20°F to +210°F |
| Type | Light Duty, With Carbon Graphite Bushings |
| Width | 4" |
Shipping Info:
| Ship weight (kg) | 5.72 |
| Ship height (cm) | 18.03 |
| Ship length (cm) | 29.46 |
| Ship width (cm) | 16.51 |
| HS code | 8413600090 |
| Country of Origin | IN |
Product Variants
| Model | Flow Rate @ 100 Psi | Temp. Range | Seal Type | Max. Suction Lift | Gear Material | Motor Hp | Port Size | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4KHA9 | 4.4 GPM | -20°F to +210°F | Mechanical | 3.5 ft. | Fortron PPS | 1 hp | 1/4" | 1/2" | €596.10 | |
| 4KHC1 | 6.5 GPM | -20°F to +210°F | Mechanical | 7.9 ft. | Fortron PPS | 1 1/2 hp | 3/8" | 0.63" | €701.69 | |
| 4KHC2 | 10.2 GPM | -20°F to +210°F | Mechanical | 12.3 ft. | Fortron PPS | 1 1/2 hp | 1/2" | 5/8" | €704.00 | |
| 4KHC4 | 23.9 GPM | -20°F to +210°F | Mechanical | 19.5 ft. | Fortron PPS | 3 hp | 1" | 0.787" | €932.24 | |
| 4KHC5 | 4.4 GPM | +32°F to +280°F | Mechanical | 3.5 ft. | Steel | 1 hp | 1/4" | 1/2" | €465.41 | |
| 4KHC6 | 6.5 GPM | +32°F to +280°F | Mechanical | 7.9 ft. | Steel | 1 1/2 hp | 3/8" | 5/8" | €515.50 | |
| 4KHC7 | 10.2 GPM | +32°F to +280°F | Mechanical | 12.3 ft. | Steel | 1 1/2 hp | 1/2" | 5/8" | €534.18 |
