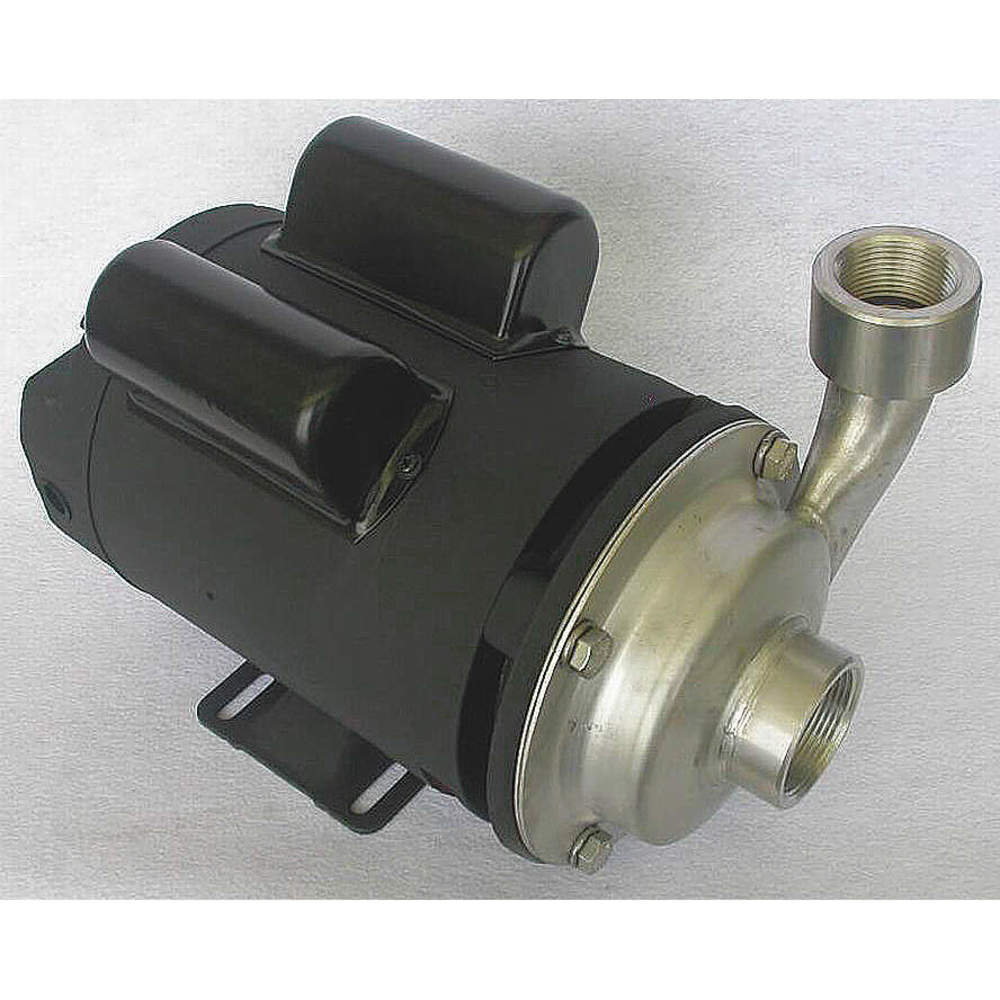

DAYTON 4JMW2 Pump 2 Hp 115/230v 21.6/10.8 Amp
Get it by Tuesday, Sep 1
5.00% off
€1,321.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Centrifugal Pump |
| Amps | 21.6/10.8A |
| Application | Chemical Processing, Circulating, Cooling, Liquid Transfer, Pressure Boosting, Recirculation |
| Bearing Type | Ball |
| Best Efficiency Flow | 55 GPM |
| Best Efficiency Flow Range @ Head | 26 to 100 GPM @ 60 to 100 ft. |
| Best Efficiency Flow Rate | 55 GPM |
| Best Efficiency Flow Rate @ Head | 55 GPM @ 50 ft. |
| Best Efficiency Head | 50 ft. |
| Compatible Motor Frame | 56J NEMA |
| Discharge Pipe Size | 1 1/2" |
| Discharge Pipe Type | NPT |
| Discharge Port Size | 1 1/2" |
| Discharge Port Type | NPT |
| Discharge Rotation | 90° Increments |
| Drain Plug | None |
| Duty Cycle | Continuous |
| Flow Rate @ 1 Ft. | 118 GPM |
| Flow Rate @ 10 Ft. | 114 GPM |
| Flow Rate @ 20 Ft. | 109 GPM |
| Flow Rate @ 25 Ft. | 100 GPM |
| Flow Rate @ 30 Ft. | 92 GPM |
| Flow Rate @ 40 Ft. | 75 GPM |
| Flow Rate @ 5 Ft. | 117 GPM |
| Flow Rate @ 50 Ft. | 55 GPM |
| Flow Rate @ 60 Ft. | 24 GPM |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Grade | Grade 304 |
| Height | 7 3/4" |
| Housing Material | Stainless Steel |
| Hp | 2 hp |
| Impeller Design | Closed |
| Impeller Material | Stainless Steel |
| Impeller Type | Closed |
| Included | Manual |
| Inlet Pressure | 121 psi |
| Inlet Size | 2" |
| Intake Pipe Size | 2" |
| Intake Pipe Type | NPT |
| Length | 14 3/4" |
| Max. Ambient Temp. | 104°F |
| Max. Case Pressure | 150 psi |
| Max. Feet Of Head | 68 ft. |
| Max. Flow @ 1 Ft Of Head | 118 GPM |
| Max. Flow @ 10 Ft Of Head | 114 GPM |
| Max. Flow @ 20 Ft Of Head | 109 GPM |
| Max. Flow @ 25 Ft Of Head | 100 GPM |
| Max. Flow @ 30 Ft Of Head | 92 GPM |
| Max. Flow @ 40 Ft Of Head | 75 GPM |
| Max. Flow @ 5 Ft Of Head | 117 GPM |
| Max. Flow @ 60 Ft Of Head | 24 GPM |
| Max. Flow Rate | 130 GPM |
| Max. Flow Rate @ 15 Ft. | 106 GPM |
| Max. Head | 68 ft. |
| Max. Hp | 2 hp |
| Max. Media Temp. | 200°F |
| Max. Motor Speed | 3450 RPM |
| Max. Shut Off Pressure | 150 psi |
| Max. Solid Dia. | 0.13" , 1/8" |
| Max. Specific Gravity | 1 xg |
| Max. Viscosity | 31 SUS |
| Min. Ambient Temp. | 40°F |
| Min. Flow Rate | 24 GPM |
| Min. Flow Rate @ Head | 24 GPM @ 60 ft. |
| Min. Media Temp. | 40°F |
| Motor Enclosure Design | Open Dripproof |
| Motor Type | Permanent Split Capacitor |
| Nameplate Voltage | 115/230V AC |
| Outlet Size | 1 1/2" |
| Outlet Type | NPT |
| Overall Height | 7 4/5" |
| Overall Length | 14.8" |
| Overall Width | 8 3/5" |
| Phase | 1 |
| Port Rotation | 90 Deg. Increments |
| Priming | Manual |
| Screw Material | Stainless Steel |
| Seal Material | Carbon Ceramic, Stainless Steel, Viton |
| Seal Type | Mechanical |
| Self Priming | Manual |
| Service Factor | 1.15 |
| Shaft Material | Stainless Steel |
| Shaft Outside Dia. | 7/16" |
| Specific Gravity | 1 |
| Suction Port | 2" NPT |
| Type | Chemical Resistant |
| Voltage | 115/230V AC |
| Volute Material | Stainless Steel |
| Volute Material Grade | Grade 304 |
| Wetted Material | Stainless Steel, Carbon, Ceramic, Viton |
| Width | 8 5/9" |
Shipping Info:
| Ship weight (kg) | 23.4 |
| Ship height (cm) | 19.81 |
| Ship length (cm) | 37.59 |
| Ship width (cm) | 21.84 |
| HS code | 8413702005 |
| Country of Origin | CN |
Product Variants
| Model | Housing Material | Outlet Size | Hp | Amps | Max. Flow Rate | Max. Media Temp. | Min. Flow Rate | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2YER2 | Polypropylene | 1 1/2" | 1/3 hp | 7.5/3.8A | 22 GPM | 140°F | 2 GPM | 1 | €1,208.40 | |
| 2YER3 | Polypropylene | 1 1/2" | 1/2 hp | 8.4/4.8A | 26 GPM | 140°F | 9 GPM | 1 | €1,209.37 | |
| 2YER4 | Polypropylene | 1 1/2" | 1/2 hp | 1.8-1.7/0.9A | 26 GPM | 140°F | 9 GPM | 3 | €1,215.05 | |
| 2YER5 | Polypropylene | 1 1/2" | 3/4 hp | 11.3/5.6A | 37 GPM | 140°F | 6 GPM | 1 | €1,202.98 | |
| 2YER6 | Polypropylene | 1 1/2" | 3/4 hp | 2.7-2.5/1.2A | 37 GPM | 140°F | 6 GPM | 3 | €1,357.47 | |
| 2YER7 | Polypropylene | 1 1/2" | 1 hp | 14.4/7.2A | 55 GPM | 140°F | 14 GPM | 1 | €1,391.60 | |
| 2YER8 | Polypropylene | 1 1/2" | 1 hp | 3.7-3.2/1.6A | 55 GPM | 140°F | 14 GPM | 3 | €1,452.34 |
