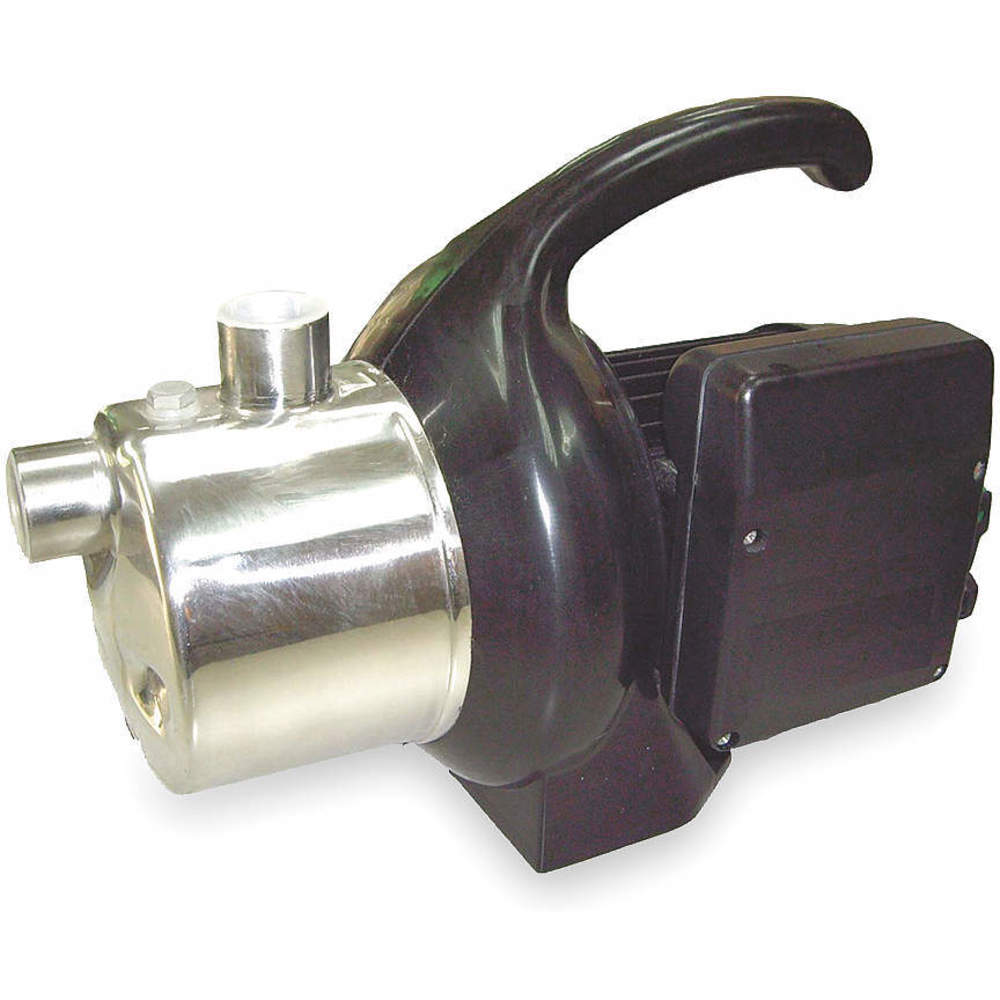

DAYTON 4CUK6 Utility Pump 1/2 Hp 1ph 115v 7.4 Amps
Get it by Monday, Feb 16
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€388.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Utility Pump |
| Amps | 7.4A |
| Bearing Type | Ball |
| Best Efficiency Flow Rate | 16.1 GPM |
| Best Efficiency Gpm @ Head | 11 GPM @ 69 ft. |
| Best Efficiency Head | 46 ft. to 81 ft. |
| Best Efficiency Range Gpm @ Head | 14-9 GPM @ 46-81 Ft |
| Compatible Hose Size | 1" |
| Cord | 5.5 ft. |
| Drain Plug Size | 1/8" |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Ft. | 15.7 GPM |
| Flow Rate @ 100 Ft. | 14.7 GPM |
| Flow Rate @ 120 Ft. | 14.5 GPM |
| Flow Rate @ 20 Ft. | 15.4 GPM |
| Flow Rate @ 30 Ft. | 15.3 GPM |
| Flow Rate @ 40 Ft. | 15.1 GPM |
| Flow Rate @ 5 Ft. | 15.8 GPM |
| Flow Rate @ 50 Ft. | 15.2 GPM |
| Flow Rate @ 60 Ft. | 15 GPM |
| Flow Rate @ 80 Ft. | 14.9 GPM |
| Frequency | 60 Hz |
| Housing Material | Stainless Steel |
| Hp | 1/2 hp |
| Impeller Material | Thermoplastic |
| Impeller Type | Closed |
| Includes | (2) Garden Hose Adaptors |
| Inlet Pressure | 32 psi |
| Inlet Size | 1" |
| Max. Case Pressure | 96 psi |
| Max. Flow Rate @ 15 Ft. | 15.6 GPM |
| Max. Head | 145 ft. |
| Max. Liquid Temp. | 90°F |
| Max. Pressure | 64 psi |
| Max. Solid Dia. | 0.13" |
| Max. Suction Lift | 25 ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Type | Permanent Split Capacitor |
| Outlet Size | 1" |
| Outlet Type | NPT |
| Overall Height | 10" |
| Overall Length | 14 1/2" |
| Phase | 1 |
| Power Cord Length | 6 ft. |
| Rpm | 3450 RPM |
| Screw Material | Stainless Steel |
| Seal Application | Non-Flammable And Non-Abrasive Liquids Compatible With Seal Component Materials Up To 90 Deg. F |
| Seal Material | Carbon Ceramic |
| Seal Type | Mechanical |
| Service Factor | 1 |
| Shaft Material | Stainless Steel |
| Specific Gravity | 1 |
| Suction Lift | 25 ft. |
| Type | Centrifugal |
| Voltage | 115V AC |
| Volute Material | Thermoplastic |
| Wetted Material | Brass, Buna N, Carbon Ceramic, Stainless Steel, Thermoplastic |
| Width | 7 51/64" |
Shipping Info:
| Ship weight (kg) | 8.19 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 36.83 |
| Ship width (cm) | 19.81 |
| HS code | 8413702005 |
| Country of Origin | CN |
Product Details:
- GPH of Water @ 10 PSI (951)
- GPH of Water @ 15 PSI (871)
- GPH of Water @ 20 PSI (832)
- GPH of Water @ 25 PSI (752)
- GPH of Water @ 30 PSI (700)
- GPH of Water @ 35 PSI (634)
- GPH of Water @ 40 PSI (581)
- GPH of Water @ 5 PSI (960)
Product Variants
| Product | Model | Impeller Material | Hp | Housing Material | Outlet Size | Voltage | Outlet Type | Max. Suction Lift | Power Cord Length | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3ABZ6 | Buna N | 3/4 hp | Brass | 1" | 115/230V AC | - | - | - | 1 | €2,499.99 | |
 |
3ACA4 | Buna N | 1/12 hp | Non Metallic | 3/4" | - | MGHT | - | - | 1 | €383.65 | |
 |
3ACA5 | Buna N | 1/12 hp | Non Metallic | 3/4" | - | MGHT | - | - | 1 | €347.19 | |
 |
3ACA6 | Buna N | 1/12 hp | Non Metallic | 3/4" | - | MGHT | - | - | 1 | €303.82 | |
 |
3ACC1 | Buna N | 3/4 hp | Brass | 1" | 115/230V AC | - | - | - | 1 | €1,455.72 | |
 |
3ACC5 | Buna N | 1/2 hp | Stainless Steel | 3/4" | 115/230V AC | - | - | - | 1 | €2,848.12 | |
 |
3ACC7 | Buna N | 1 hp | Stainless Steel | 1 1/4" | 115/230V AC | - | - | - | 1 | €2.48 |
