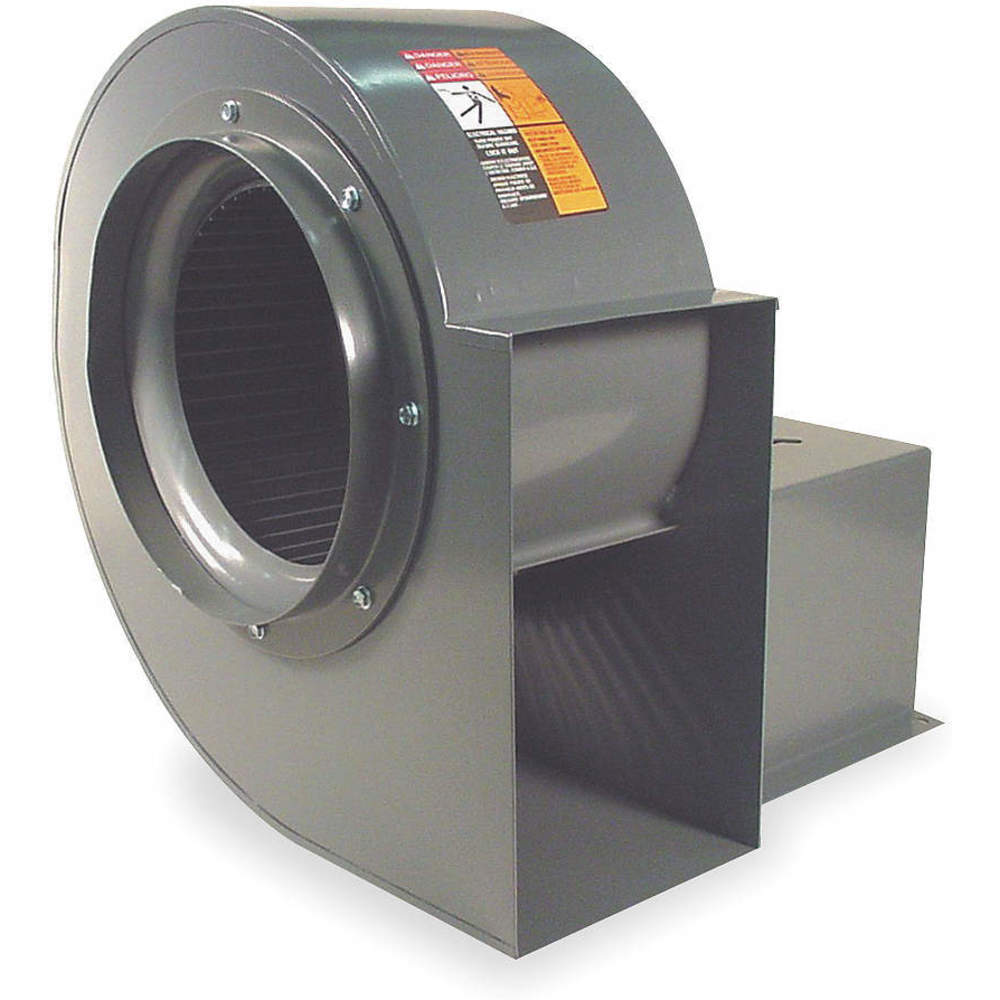

DAYTON 4C119 Blower Duct 10 5/8 In
Get it by Wednesday, Dec 24
10.00% off
€725.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Blower |
| Application | Cooling, Drying, Exhausting Foul Air, Forced Air Furnaces |
| Assembled/unassembled | Unassembled |
| Depth | 17" |
| Discharge Position | Bottom Angular Down, Bottom Angular Up, Bottom Horizontal, Down Blast, Top Angular Down, Top Angular Up, Top Horizontal, Up Blast |
| Drive Type | Direct Drive |
| Features | All Motors Are Rigid Mounted, Combines The Characteristics Of High Volume And High Pressure Blowers, Great For Medium Pressures, High Volume, Housing With Welded, Airtight Joints |
| For Ventilation Type | Exhaust |
| Height | 21" |
| Housing Color | Gray |
| Housing Finish | Gray Polyester Epoxy |
| Housing Material | Steel |
| Housing Material Gauge | 16 ga. |
| Includes | Dynamically Balanced Wheel, Housing, Motor Base |
| Includes Motor | No |
| Inlet Dia. | 10" |
| Manufacturer Warranty Length | 1 yr. Limited |
| Max. Ambient Temp. | 104°F |
| Max. Inlet Temp. | 180°F |
| Max. Motor Hp | 1 1/2 hp |
| Maximum Airflow | 1848 CFM |
| Maximum Motor Speed | 1725 RPM |
| Maximum Static Pressure | 2.75 in. wc |
| Minimum Airflow | 1047 CFM |
| Mount Type | Motor Mount |
| No. Of Discharge Positions | 8 |
| Number Of Inlet | 1 |
| Number Of Inlets | 1 |
| Outlet Dia. | Not Applicable |
| Outlet Height | 11 3/4" |
| Outlet Shape | Rectangular |
| Outlet Type | Non Flanged |
| Outlet Width | 5 7/8" |
| Overall Depth | 17" |
| Overall Height | 21" |
| Overall Width | 16" |
| Rotation | CW |
| Type | Less Motor |
| Wheel Bore | 7/8" |
| Wheel Bore Diameter | 7/8" |
| Wheel Dia. | 10 5/8" |
| Wheel Material | Steel |
| Wheel Type | Forward Curved |
| Wheel Width | 4" |
| Width | 16" |
Shipping Info:
| Ship weight (kg) | 14.22 |
| Ship height (cm) | 53.34 |
| Ship length (cm) | 43.18 |
| Ship width (cm) | 40.64 |
| HS code | 8414596060 |
| Country of Origin | US |
