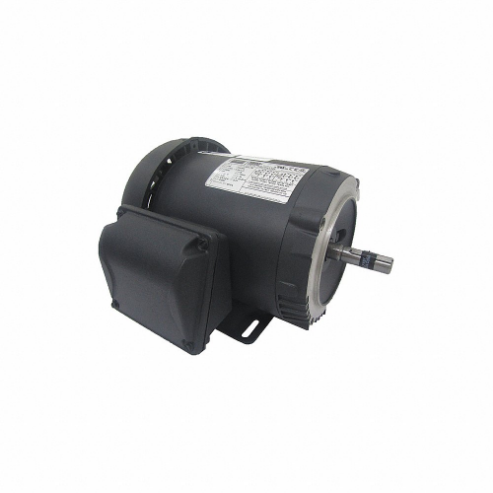

DAYTON 48ZK03 General Purpose Motor, Totally Enclosed Fan-Cooled, 1 HP, 230/460V AC
Get it by Tuesday, Feb 17
10.00% off
€423.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC029A |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Frame | 56HC |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.9/1.5A |
| Hp | 1 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 11 13/16" |
| Manufacturers Warranty Length | 2 yrs. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Three Phase |
| Nameplate Rpm | 1765 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Overall Length | 13 7/8" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | None |
| Voltage | 230/460V AC |
| Warranty | 2 yrs. |
Shipping Info:
| Ship weight (kg) | 19.8 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 35.26 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Phase | Frequency | Full Load Amps | Motor Type | Service Factor | Nameplate Rpm | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
182TTFBD6079 | 230/460V AC | 3 | 60 Hz | 4.6/2.3A | Three Phase | 1.15 | 1175 RPM | 1 1/2 hp | €1,572.53 | |
 |
20VD21 | 230/460V AC | 3 | 50/60 Hz | 1/0.55A | Three Phase | 1.35 | 1725 RPM | 1/4 hp | €465.42 | |
|
20VD22 | 230/460V AC | 3 | 50/60 Hz | 1.2/0.6A | Three Phase | 1.35 | 1725 RPM | 1/3 hp | €423.92 | |
|
20VD23 | 230/460V AC | 3 | 50/60 Hz | 1.8/0.9A | Three Phase | 1.25 | 3450 RPM | 1/2 hp | €398.59 | |
 |
213TTDWD16060 | 230/460V AC | 3 | 50/60 Hz | 20/10A | Three Phase | 1.15 | 1765 RPM | 7 1/2 hp | €1,945.03 | |
 |
2TJ12 | 230V AC | 1 | 60 Hz | 22A | Capacitor Start/Run | 1 | 1740 RPM | 5 hp | €1,911.34 | |
 |
30PT39 | 115/230V AC | 1 | 60 Hz | 3.8/1.9A | Capacitor Start/Run | 1.35 | 1725 RPM | 1/3 hp | €609.31 |
