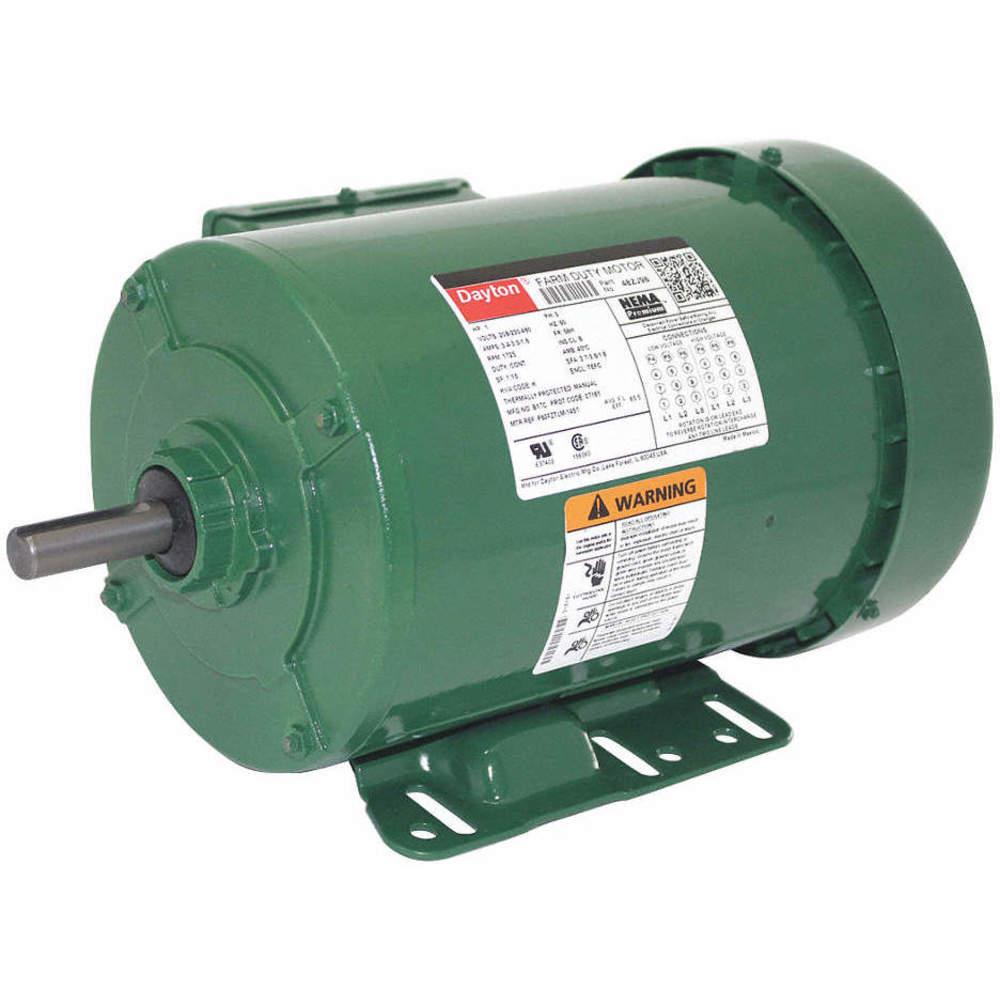

DAYTON 48ZJ98 Farm Duty Motor, General Purpose, 1HP, 3 Phase, 1725 RPM
Get it by Tuesday, Aug 25
5.00% off
€675.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Farm Duty Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Bearings | Ball |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Finish | Epoxy Coating |
| Frame | 56H |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3.3-3.4/1.6A |
| Hp | 1 hp |
| Included | Shaft Key, Gasketed Conduit Box, Shaft Slinger |
| Insulation Class | Class F |
| Length Less Shaft | 11" |
| Max. Ambient Temp. | 40°C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | CW, CCW |
| Motor Sub Application | General Purpose Farm |
| Motor Thermal Protection | Manual |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1725 RPM |
| No. Of Speed | 1 |
| Nominal Efficiency | 85.5% |
| Overall Length | 12 7/8" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Manual |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 14.85 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.72 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Hp | Frame | Frame Material | Overall Length | Voltage | Motor Enclosure Design | Motor Design | Motor Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

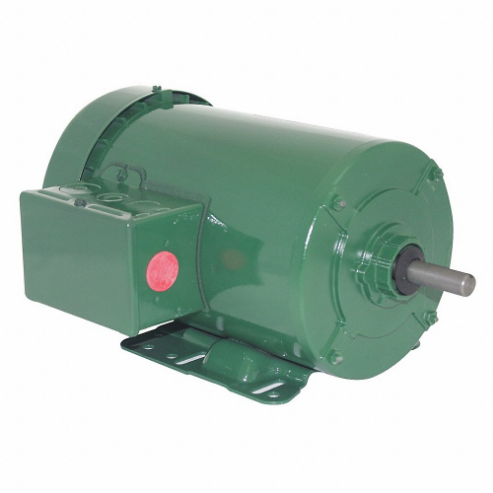

48ZJ99 | 1 1/2 hp | 56 | Rolled Steel | 13 3/8" | 208-230/460V AC | Totally Enclosed Fan Cooled | 3-Phase | Rigid Base | €762.94 |
