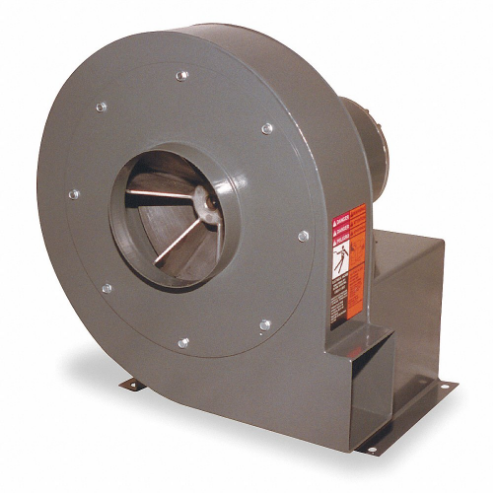

DAYTON 48LX16 High Pressure Blower, With Motor, 12 1/2 Inch Wheel Dia., 3 HP
765 CFM
Get it by Friday, Dec 19
10.00% off
€1,791.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | High Pressure Blower |
| Airflow @ 0.250 In Sp | 1185 CFM |
| Airflow @ 0.500 In Sp | 1171 CFM |
| Airflow @ 1.000 In Sp | 1145 CFM |
| Airflow @ 1.500 In Sp | 1117 CFM |
| Airflow @ 2.000 In Sp | 1090 CFM |
| Airflow @ 3.000 In Sp | 1033 CFM |
| Airflow @ 4.000 In Sp | 974 CFM |
| Airflow @ 5.000 In Sp | 911 CFM |
| Airflow @ 6.000 In Sp | 842 CFM |
| Airflow @ 7.000 In Sp | 765 CFM |
| Airflow @ 8.000 In Sp | 672 CFM |
| Assembled/unassembled | Assembled |
| Assembly | Assembled |
| Bearing Type | Ball |
| Current | 8.4-7.3/3.8A |
| Depth | 17" |
| Dimension A | 17" |
| Dimension B | 8" |
| Dimension C | 5" |
| Dimension D | 4" |
| Dimension E | 8" |
| Dimension F | 6 1/2" |
| Dimension G | 3/4" |
| Dimension H | 8 1/4" |
| Dimension J | 7 1/2" |
| Dimension K | 9" |
| Dimension L | 9 5/8" |
| Dimension P | 7" |
| Dimension R | 10" |
| Dimension S | 7 1/8" |
| Dimension T | 15" |
| Dimension X | 10 5/8" |
| Discharge Height | 5" |
| Discharge Position | And Bottom Angular Down, Bottom Angular Up, Bottom Horizontal, Down Blast, Top Angular Down, Top Angular Up, Top Horizontal, Up Blast |
| Discharge Width | 4" |
| Drive Package With Motor Included? | Yes |
| Drive Type | Direct Drive |
| Features | Self-Cleaning Cast Aluminum Wheels |
| Flange Size | Not Applicable |
| Flange Type | Non Flanged |
| For Air Type | Dirty And Dusty |
| For Ventilation Type | Exhaust |
| Frequency | 50/60 Hz |
| Height | 18 7/8" |
| Housing Color | Gray |
| Housing Depth | 17" |
| Housing Material | Steel |
| Housing Material Finish | Baked Enamel |
| Hp | 3 hp |
| Includes Drive Package | Yes |
| Includes Motor | Yes |
| Inlet Dia. | 7" |
| Maximum Ambient Temperature | 104°F |
| Maximum Fan Speed | 3500 RPM |
| Maximum Inlet Air Temperature | 180°F |
| Maximum Static Pressure | 9 in. wc |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 182T |
| Motor Horsepower | 3 hp |
| Motor Speed | 3500 RPM |
| Mount Type | Motor Mount |
| Nameplate Voltage | 208-230/460V AC |
| No. Of Inlets | 1 |
| Number Of Discharge Positions | 8 |
| Outlet Dia. | Not Applicable |
| Outlet Height | 5" |
| Outlet Shape | Rectangular |
| Outlet Width | 4" |
| Overall Height | 18 7/8" |
| Overall Width | 16 1/2" |
| Phase | 3 |
| Rotation | CW |
| Shaft Dia. | 1 1/8" |
| Shaft Diameter | 1 1/8" |
| Sound Level | 90 dBA @ 5 Ft. |
| Type | With Motor |
| Wheel Bore | 1 1/8" |
| Wheel Bore Dia. | 1 1/8" |
| Wheel Dia. | 12 1/2" |
| Wheel Material | Aluminum |
| Wheel Type | Radial |
| Wheel Width | 3" |
| Width | 16 1/2" |
Shipping Info:
| Ship weight (kg) | 43.2 |
| Ship height (cm) | 47.96 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 41.91 |
| Country of Origin | US |
Product Variants
| Model | Outlet Height | Outlet Width | Rotation | Housing Material | Phase | Inlet Dia. | Wheel Diameter | Motor Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2C940 | 3" | 3" | CW/CCW | Steel | - | 4" | - | - | €265.55 | |
| 4C108 | 4" | 3 1/2" | CW/CCW | Steel | - | 6" | - | - | €330.61 | |
| 4C129 | 4" | 3 1/2" | CW | Steel | - | 6" | - | - | €830.45 | |
| 4C329 | 5" | 4" | CW/CCW | Steel | - | 7" | - | - | €448.21 | |
| 4C330 | 7 1/8" | 5 3/4" | CW/CCW | Steel | - | 8" | - | - | €618.49 | |
| 7AV04 | 4" | 3 1/2" | CW | Steel | 3 | 6" | - | 1/2 hp | €1,337.61 | |
| 7AV05 | 4" | 3 1/2" | CW | Steel | 3 | 6" | 10 5/8" | 1/2 hp | €1,347.74 |
