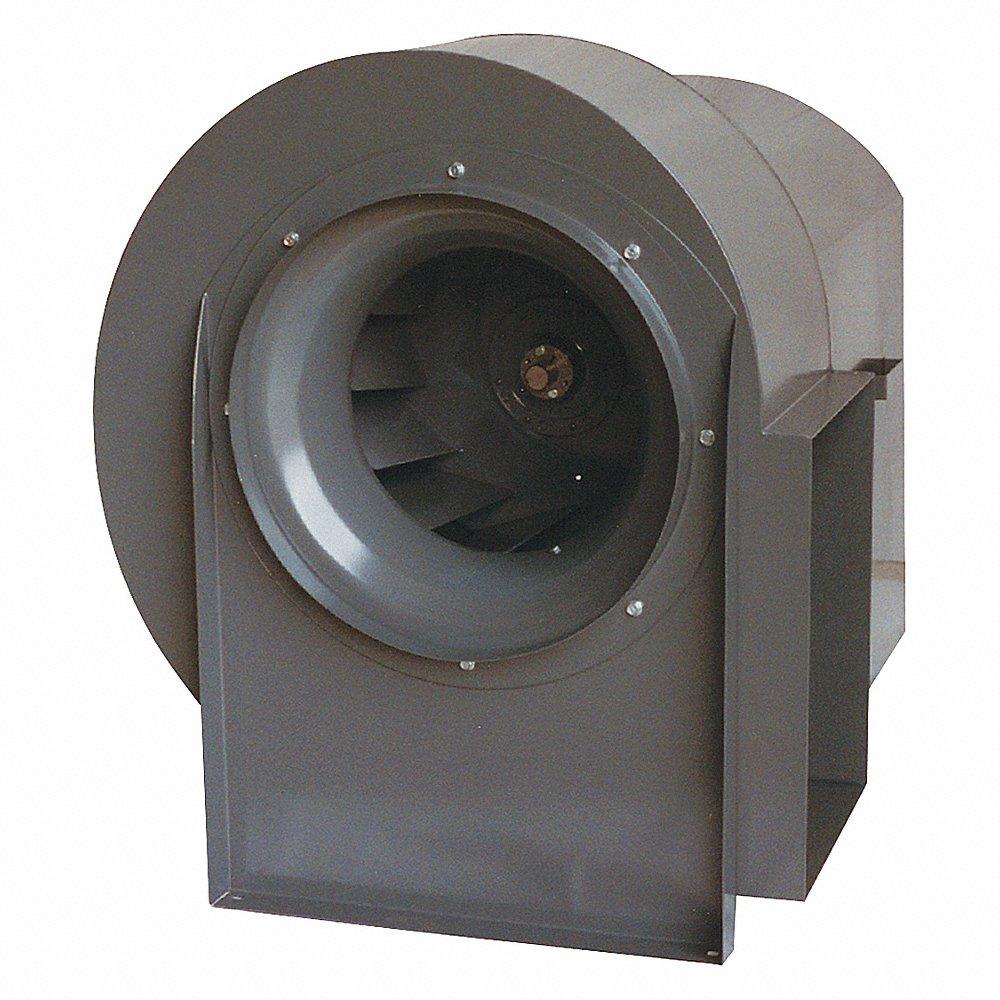

DAYTON 48LW27 Blower, 27 Inch Wheel Dia.
Get it by Tuesday, Dec 23
10.00% off
€6.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Blower |
| Assembled/unassembled | Assembled |
| Assembly | Unassembled |
| Bearing Type | Ball |
| Depth | 49 1/4" |
| Dimension A | 33" |
| Dimension B | 16 1/2" |
| Dimension C | 29" |
| Dimension D | 21 1/4" |
| Dimension E | 16 1/2" |
| Dimension F | 26 1/4" |
| Dimension H | 22 1/8" |
| Dimension J | 18 1/2" |
| Dimension K | 25 1/4" |
| Dimension L | 31 1/2" |
| Dimension M | 34 5/8" |
| Dimension N | 12 5/8" |
| Dimension P | 29" |
| Dimension Q | 23 3/4" |
| Dimension R | 26 1/2" |
| Dimension S | 47" |
| Dimension T | 26" |
| Dimension X | 30 1/2" |
| Dimension Y | 1/2" |
| Drive Package With Motor Included? | No |
| Drive Type | Belt Drive |
| Height | 52 5/8" |
| Housing Color | Gray |
| Housing Finish | Gray Baked Polyester Epoxy |
| Housing Material | Steel |
| Includes | Epoxy Coated Steel Weather Proof Drive Cover |
| Includes Drive Package | No |
| Includes Motor | No |
| Inlet Dia. | 29" |
| Manufacturer Warranty Length | 1 yr. Limited |
| Maximum Inlet Air Temperature | 250°F |
| Maximum Motor Horsepower | 15 hp |
| Minimum Motor Horsepower | 1/2 hp |
| Number Of Inlet | 1 |
| Number Of Inlets | 1 |
| Outlet Dia. | Not Applicable |
| Outlet Height | 29" |
| Outlet Shape | Rectangular |
| Outlet Width | 21 1/4" |
| Overall Depth | 49 1/4" |
| Overall Height | 52 5/8" |
| Overall Width | 46 3/4" |
| Rotation | CW |
| Shaft Dia. | 1 3/8" , 1 7/16" |
| Wheel Dia. | 27" |
| Wheel Material | Steel |
| Wheel Type | Backward Inclined |
| Width | 46 3/4" |
Shipping Info:
| Ship weight (kg) | 266.4 |
| Ship height (cm) | 133.67 |
| Ship length (cm) | 125.1 |
| Ship width (cm) | 118.75 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Material | Finish | Wheel Material | Outlet Height | Outlet Width | Drive Type | Wheel Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1C791 | 15" | Steel | Baked Epoxy | Steel | 7 3/8" | 4 1/4" | Direct Drive | 6.312" | €449.46 | |
|
1C792 | 16" | Steel | Gray Polyester Epoxy | Steel | 8 1/4" | 5 3/8" | Direct Drive | 7 3/4" | €699.43 | |
 |
2C797 | 27" | Steel | Baked Polyester Epoxy | Steel | 13 1/4" | 9 5/8" | Belt Drive | 12 1/4" | €2,190.34 | |
 |
2C800 | 27" | Steel | Baked Polyester Epoxy | Steel | 13 1/4" | 9 5/8" | Belt Drive | 12 1/2" | €909.50 | |
|
2C889 | 18" | Steel | Gray Polyester Epoxy | Steel | 10 3/4" | 6 1/2" | Direct Drive | 9" | €690.83 | |
|
2C890 | 21" | Steel | Gray Polyester Epoxy | Steel | 11 3/4" | 8" | Direct Drive | 10 5/8" | €846.60 | |
|
3AXE8 | 18" | Steel | Baked Polyester Epoxy | Steel | 8 1/4" | 5 3/8" | Belt Drive | 7 3/4" | €1,903.43 |
