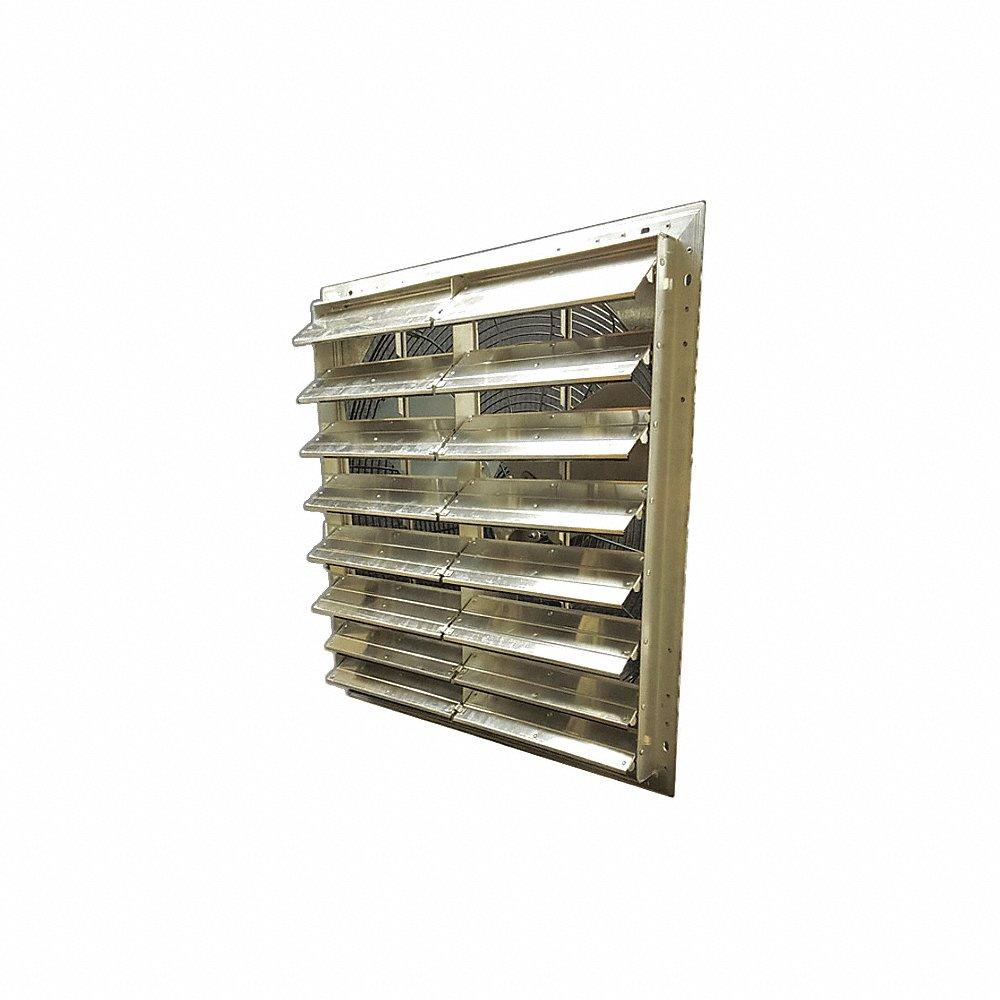

DAYTON 484X49 Shutter Mount Exhaust Fan, 30 Inch Blade, 1 Speed, 1/3 HP, 5090 CFM, 1 Phase
Get it by Wednesday, Dec 24
10.00% off
€524.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Shutter Mount Exhaust Fan |
| Assembled | Assembled |
| Blade Dia. | 30" |
| Blade Material | Steel |
| Drive Type | Direct Drive |
| Duct Dia. | Not Applicable |
| Duct Height | Not Applicable |
| Duct Shape | Not Applicable |
| Duct Width | Not Applicable |
| Electrical Connection | Hardwired |
| Exhaust Airflow @ 0.125 In Sp | 3435 CFM |
| Exhaust Airflow @ 0.250 In Sp | 1555 CFM |
| Exhaust/supply Fan Item | Exhaust Fan |
| Exhaust/supply Fan Motor Hp | 1/3 hp |
| Fits Square Opening | 31" x 31" |
| For Cut-out Height | 31" |
| For Cut-out Width | 31" |
| For Maximum Wall Thickness | 6" |
| For Minimum Wall Thickness | 3" |
| Frame Material | Aluminum |
| Full Load Current | 3.3A |
| Guard Finish | Powder Coated |
| Guard Material | Steel |
| Guard Type | Intake |
| Housing Material | Aluminum, Steel |
| Hp | 1/3 hp |
| Includes | Intake Guard |
| Includes Dehumidistat | No |
| Includes Motor | Yes |
| Max. Depth | 16" |
| Max. Noise Level | 7.01 sones |
| Maximum Exhaust Airflow @ 0.000 In Sp | 5090 CFM |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Hp | 1/3 hp |
| Motor Insulation | Class B |
| Motor Speed | 825 RPM |
| Motor Type | Permanent Split Capacitor |
| Mounting Orientation | Vertical |
| Nameplate Voltage | 115V AC |
| No. Of Fans | 1 |
| Noise Level @ 0.000 In Sp @ 5 Ft | 7.01 sones |
| Noise Level @ 0.100 In Sp @ 5 Ft | 6.94 sones |
| Number Of Blades | 3 |
| Number Of Shutters | 1 |
| Number Of Speeds | 1 |
| Overall Depth | 16" |
| Overall Height | 33 1/4" |
| Overall Width | 33 1/4" |
| Phase | 1 |
| Promotion Restriction | Not Eligible For Promotion |
| Speed Controllable | No |
| Thermal Protection | Yes |
| Ventilation Type | Exhaust |
| Wattage | 377 W |
| Wire Guard Finish | Powder Coated |
Shipping Info:
| Ship weight (kg) | 25.65 |
| Ship height (cm) | 84.46 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 84.46 |
| Country of Origin | US |
Product Variants
| Product | Model | Blade Material | Blade Dia. | For Cut-out Height | For Cut-out Width | Number Of Speeds | Max. Exhaust Airflow @ 0.000 In Sp | Number Of Blades | Motor Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

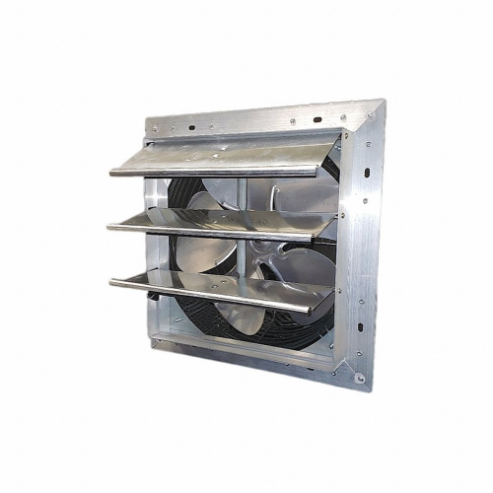

484X37 | Aluminum | 10" | 10 1/2" | 10 1/2" | Variable | 625 CFM | 5 | 1/25 hp | €197.38 | |
 |
484X47 | Aluminum | 24" | 25" | 25" | 1 | 4479 CFM | 3 | 1/3 hp | €524.56 | |
 |

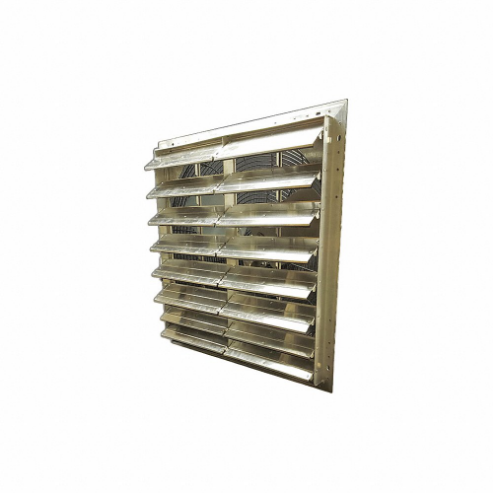

484X50 | Steel | 36" | 37" | 37" | 1 | 8860 CFM | 3 | - | €791.19 | |
 |

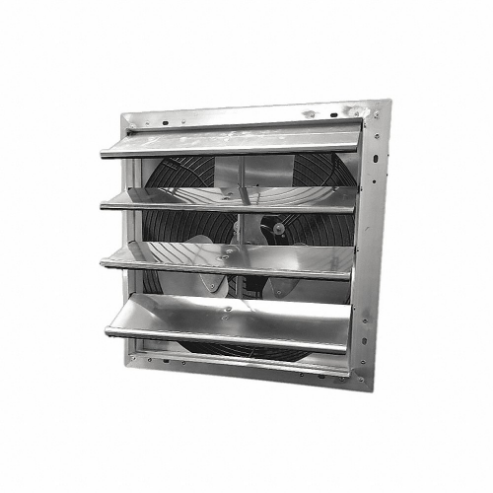

484X39 | Aluminum | 16" | 17" | 17" | Variable | 1381 CFM | 3 | - | €257.31 | |
 |

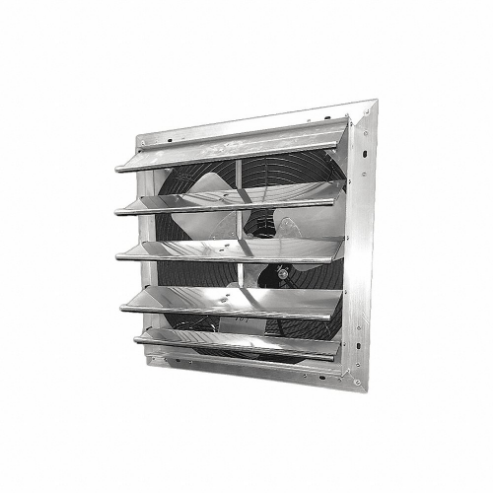

484X42 | Aluminum | 20" | 21" | 21" | 1 | 3950 CFM | 3 | 1/4 hp | €434.12 | |
|
484X44 | Aluminum | 20" | 21" | 21" | 1 | 4034 CFM | 3 | 1/3 hp | €453.47 | |
 |

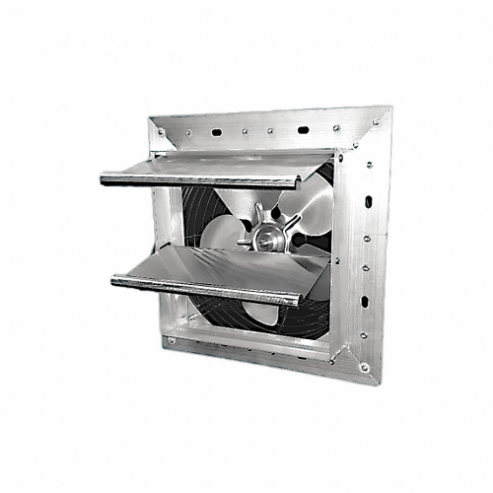

484X36 | Aluminum | 7" | 8 1/2" | 8 1/2" | Variable | 254 CFM | 5 | 1/25 hp | €168.79 |
