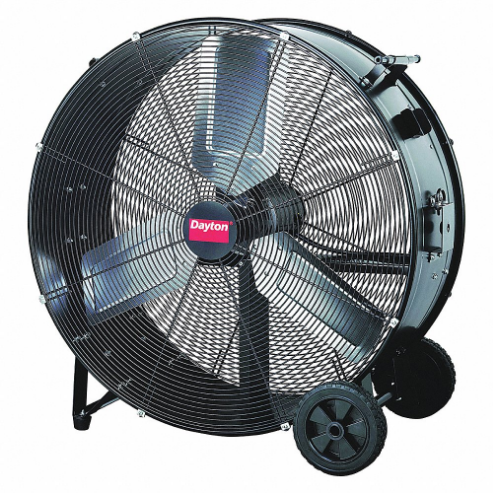

DAYTON 45LW12 Commercial Floor Air Circulator, Mobile, 42 Inch Size, 115 VAC
Get it by Monday, Aug 24
5.00% off
€853.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Circulator |
| Air Velocity (fpm) @ 10 Ft. | 600/400 |
| Air Velocity @ 10 Ft. | 600/400 FPM |
| Airflow | 12500/16800 CFM |
| Amps | 7.9/6A |
| Assembled | Yes |
| Assembly Required | Yes |
| Bearing Type | Ball |
| Blade Dia. | 42" |
| Blade Material | Aluminum |
| Cfm Low | 12,500 |
| Cfm/watt | 18.5 |
| Cfm/watt | 18.5 CFM/W |
| Color | Black |
| Cord Length | 10 ft. |
| Depth | 20 3/4" |
| Drive Type | Direct Drive |
| Environmental Applications | Industrial |
| Fan Accessory Style | Standard |
| Fan Cord Length | 10 ft. |
| Fan Housing Material | Steel |
| Fan Mounting Location | Floor |
| Fan Speed | 850/750 RPM |
| Fan Style | Standard |
| Frequency | 60 Hz |
| Guard Material | Steel |
| Height | 44 1/2" |
| Height Adjustment | Fixed Height |
| High Cfm | 16800 CFM |
| Housing Material | Steel |
| Included | 7" Plastic And Rubber Wheels, Cord Wrap |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 20 3/4" |
| Mobile/stationary | Mobile |
| Motor Enclosure Design | Open Air Over |
| Motor Hp | 3/4 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 850/750 RPM |
| Motor Type | Permanent Split Capacitor |
| Mounting Location | Ceiling, Floor |
| Nema Plug Configuration | 5-15P |
| No. Of Blades | 3 |
| No. Of Speed | 2 |
| Oscillating | No |
| Oscillation | Non Oscillating |
| Phase | 1 |
| Product Type | Light-Duty Industrial Fan |
| Shaft Dia. | 5/8" |
| Sound Level | 75 dBA |
| Speed | 850/750 RPM |
| Style | Standard |
| Thermal Protection | Automatic Reset |
| Voltage | 115V AC |
| Watts | 960/820 W |
| Wheel Dia. | 7" |
| Wheel Material | Plastic, Rubber |
| Wheeled Base | Mobile |
| Width | 44 3/4" |
| Wire Guard Finish | Powder Coat |
Shipping Info:
| Ship weight (kg) | 49.5 |
| Ship height (cm) | 113.03 |
| Ship length (cm) | 52.71 |
| Ship width (cm) | 113.67 |
| Country of Origin | CN |
Product Details:
- Ideal for spot cooling of production lines & workstations and general cooling in warehouses, shipping operations & manufacturing plants
- Constructed with lighter gauge materials and features a low horsepower motor with less rugged bearings
- Equipped with wheels for mobility and a fan guard for protection of fan blades from accidental contact & damage
- cULus listed and OSHA compliant wire guards standards
Product Variants
| Product | Model | Blade Dia. | Speed | Blade Material | No. Of Speed | Voltage | Amps | Guard Material | Airflow | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1YNW3 | 24" | 850/700 RPM | Aluminum | 2 | 120V AC | 3.9/2.6A | Steel | 3600/5800 CFM | €461.47 | |
 |
1YNW4 | 30" | 860/725 RPM | Aluminum | 2 | 120V AC | 3.9/2.5A | Steel | 4700/6900 CFM | €540.18 | |
 |
1YNW5 | 36" | 850/750 RPM | Aluminum | 2 | 120V AC | 5.3/4.7A | Steel | 8350/12250 CFM | €888.30 | |
 |
1YNW6 | 42" | 825/600 RPM | Aluminum | 2 | 120V AC | 5.5/4.9A | Steel | 9000/15000 CFM | €1,557.76 | |
 |
1YNW7 | 36" | 1100/800 RPM | Aluminum | 2 | 120V AC | 7.9/6A | Steel | 9000/14000 CFM | €903.43 | |
|
1YNW8 | 42" | 1100/800 RPM | Aluminum | 2 | 120V AC | 7/6A | Steel | 10000/18000 CFM | €1,618.98 | |
 |
2RDZ1 | 24" | 850/725 RPM | Aluminum | 2 | 120V AC | 3.4/2.2A | Galvanized Steel | 3600/5800 CFM | €731.25 |
