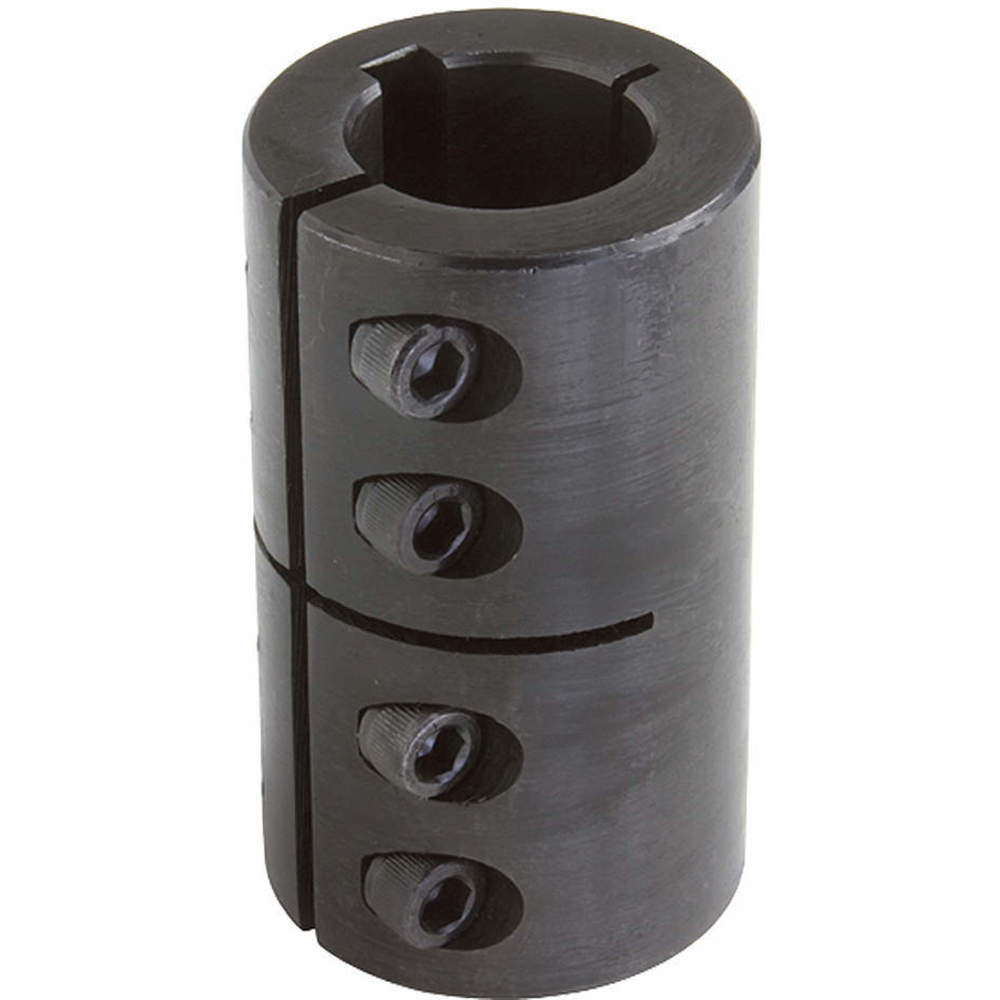

DAYTON 3ZN57 Coupling Rigid Steel
Item: AD3JUDModel: 3ZN57
7 In Stock
Ships within 2 days via
5.00% off
€59.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rigid Shaft Coupling |
| Bore Dia. | 1/2" |
| Bore Dia. 1 | 1/2" |
| Bore Dia. 2 | 1/2" |
| Bore Type | Round Keyed |
| Clearance Dia. | 1.19" |
| Coupling Construction | One-Piece |
| Coupling Material | Carbon Steel |
| Coupling Material Finish | Black Oxide |
| Coupling Outside Dia. | 1 1/8" |
| Different Bore Size | No |
| Finish | Black Oxide |
| Keyway Depth 1 | 1/16" |
| Keyway Depth 2 | 1/16" |
| Keyway Width | 1/8" |
| Keyway Width 1 | 1/8" |
| Keyway Width 2 | 1/8" |
| Machined From | Bar Stock |
| Material | Carbon Steel |
| Material-couplings | Steel |
| Max. Bore Dia. | Not Applicable |
| Max. Speed | 4000 RPM |
| Max. Torque | 480 lbs.-in. |
| Min. Bore Dia. | Not Applicable |
| Outside Dia. | 1 1/8" |
| Overall Length | 1 3/4" |
| Provides | Extra Holding Power For Higher Load Applications Without Marring Shafts |
| Screw Thread Size | #8-32 |
| Shaft Locking Type | Clamp On |
| System Of Measurement | Imperial |
| Torque | 480 lbs.-in. |
| Type | One Piece Clamp, With Keyway |
| With Keyway/without Keyway | With Keyway |
| Zero Backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 4.83 |
| Ship width (cm) | 4.57 |
| HS code | 8483608000 |
| Country of Origin | CN |
Product Variants
| Model | Torque | Finish | Clearance Dia. | Bore Dia. 2 | Coupling Material Finish | Bore Dia. 1 | Max. Torque | Keyway Depth 1 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3ZN29 | 25 lbs.-in. | Black Oxide | 0.74" | 1/4" | Black Oxide | 1/4" | 25 lbs.-in. | Not Applicable | €28.27 | |
| 3ZN30 | 60 lbs.-in. | Black Oxide | 0.74" | 5/16" | Black Oxide | 5/16" | 60 lbs.-in. | Not Applicable | €29.02 | |
| 3ZN31 | 190 lbs.-in. | Black Oxide | 0.93" | 3/8" | Black Oxide | 3/8" | 190 lbs.-in. | Not Applicable | €30.35 | |
| 3ZN32 | 480 lbs.-in. | Black Oxide | 1.19" | 1/2" | Black Oxide | 1/2" | 490 lbs.-in. | Not Applicable | €49.40 | |
| 3ZN33 | 940 lbs.-in. | Black Oxide | 1.43" | 5/8" | Black Oxide | 5/8" | 940 lbs.-in. | Not Applicable | €50.80 | |
| 3ZN34 | - | Black Oxide | 1 16/25" | 3/4" | Black Oxide | 3/4" | 1950 lbs.-in. | Not Applicable | €60.92 | |
| 3ZN35 | 2280 lbs.-in. | Black Oxide | 1.74" | 7/8" | Black Oxide | 7/8" | 2280 lbs.-in. | Not Applicable | €59.40 |
