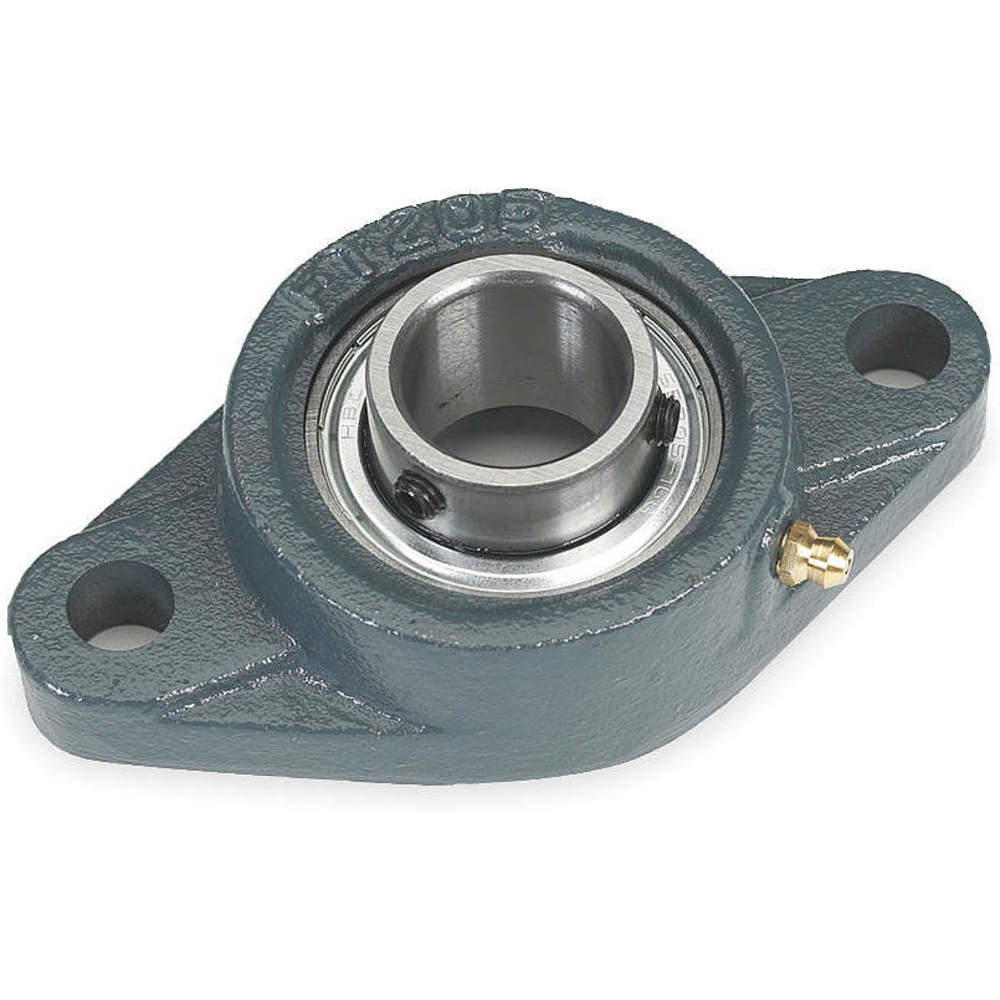

DAYTON 3FDC2 Mounted Ball Bearing 1-3/16 Inch Bore
Item: AC9AGDModel: 3FDC2
7 In Stock
Ships within 2 days via
10.00% off
€69.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Application | Not Applicable |
| Back Side To Center Width | 0.705" |
| Bearing Housing Material Type | Cast Iron |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bolt Center To Center Length | 4 19/32" |
| Bolt Circle Dia. | 0.437" |
| Bolt Hole Size | 1/2" |
| Bolt Size | 7/16" |
| Bore Dia. | 1 3/16" |
| Bore Diameter Tolerance | 0.0018 |
| Bore Type | Cylindrical |
| Center Height | 1 5/8" |
| Closure | Single Sealed |
| Closure Type | Single Sealed |
| Color | Gray |
| Dimension A | 5 9/16" |
| Dimension B | 3 1/4" |
| Dimension C | 4 19/32" |
| Dimension D | 1/2" |
| Dimension F | 1 37/64" |
| Dynamic Load Capacity | 4382 lbf. |
| Expansion Type | Fixed |
| Features | Nylon Patch 3A Set Screws, Relubricatable Unit With Anti-Rotation Pin, Self Alignment Capabilities, Serviceability Of Assemblies |
| Finish | Painted |
| Flange Thickness | 1 3/16" |
| For Environment | Highly Dusty And Dirty |
| Grade | Grade 52100 |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Material Grade | High Grade Cast Iron |
| Housing Type | Rhombus |
| Included Bearing | WJB UC206-19 Insert Bearing |
| Includes | (2) Set Screws, Oiler Cap |
| Includes Mounting Hardware | Yes |
| Inner Ring Width | Not Applicable |
| Insert | Ball Bearing |
| Insert Finish | Chrome Plated |
| Insert Material | Alloy Steel |
| Insert Type | Ball |
| Insert Type | Radial Ball |
| Load Direction | Radial |
| Lock Type | Set Screw |
| Lubricant Material | Chevron Sri 2, Nlgi #2 Equivalent |
| Lubrication Openings | Oiler Hole |
| Material | Steel |
| Max. Speed | 5500 RPM |
| Maximum Ball Swivel | Not Applicable |
| Maximum Misalignment Angle | 1.5° |
| Maximum Pv | Not Applicable |
| Maximum Temperature | 200°F |
| Minimum Temperature | -20°F |
| Mount Hole Center-to-center Height | 4 19/32" |
| Mount Hole Center-to-center Length | 4 19/32" |
| Mount Hole Size | 0.5 |
| Mounting Bolt Size | 7/16" |
| Mounting Hole Center | 4.593" |
| Number Of Bolts | 2 |
| Number Of Mount Holes | 2 |
| Overall Height | 1 37/64" |
| Overall Length | 5 9/16" |
| Overall Width | 3 1/4" |
| Pilot Dia. | 3 1/4" |
| Resistance Properties | Wear Resistant |
| Rolling Element Rows | 1 |
| Seal Material | Buna N Rubber |
| Seal Type | Shroud Contact Seal With Rubber Lip, Metal Shield |
| Self Lubricating Bearing | No |
| Shaft Locking Type | Set Screws |
| Split Housing | Not Split |
| Static Load Capacity | 2517 lbs. |
| Static Radial Load Capacity | 2517 lbf. |
| System Of Measurement | Inch |
| Temp. Range | -20°F to +200°F |
| Type | Ball |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 4.01 |
| Ship length (cm) | 14.13 |
| Ship width (cm) | 8.26 |
| HS code | 8483204040 |
| Country of Origin | CN |
Product Variants
| Model | Shaft Locking Type | Housing Material | Bore Dia. | Overall Length | Overall Width | Overall Height | Closure | Mount Hole Center-to-center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3CUR1 | Set Screws | Cast Iron | 1/2" | 4 7/8" | 1.218" | 2 1/4" | Double Sealed | 3 5/8" | €73.65 | |
| 3CUR2 | Set Screws | Cast Iron | 5/8" | 4 7/8" | 1.218" | 2 1/4" | Double Sealed | 3 5/8" | €100.91 | |
| 3FCN1 | Set Screws | Cast Iron | 1 1/4" | 6 1/2" | 1 7/8" | 3.312" | Double Sealed | 4 3/4" | €95.25 | |
| 3FCN2 | Set Screws | Cast Iron | 1/2" | 3 7/8" | 2 1/8" | 1 9/64" | Single Sealed | 3" | €55.80 | |
| 3FCN3 | Set Screws | Cast Iron | 5/8" | 3 7/8" | 2 1/8" | 1 9/64" | Single Sealed | 3" | €56.03 | |
| 3FCN4 | Set Screws | Cast Iron | 3/4" | 4 7/16" | 2 3/8" | 1 3/8" | Single Sealed | 3 17/32" | €60.83 | |
| 3FCN5 | Set Screws | Cast Iron | 1" | 5 1/8" | 2 3/4" | 1 25/64" | Single Sealed | 3 57/64" | €61.97 |
