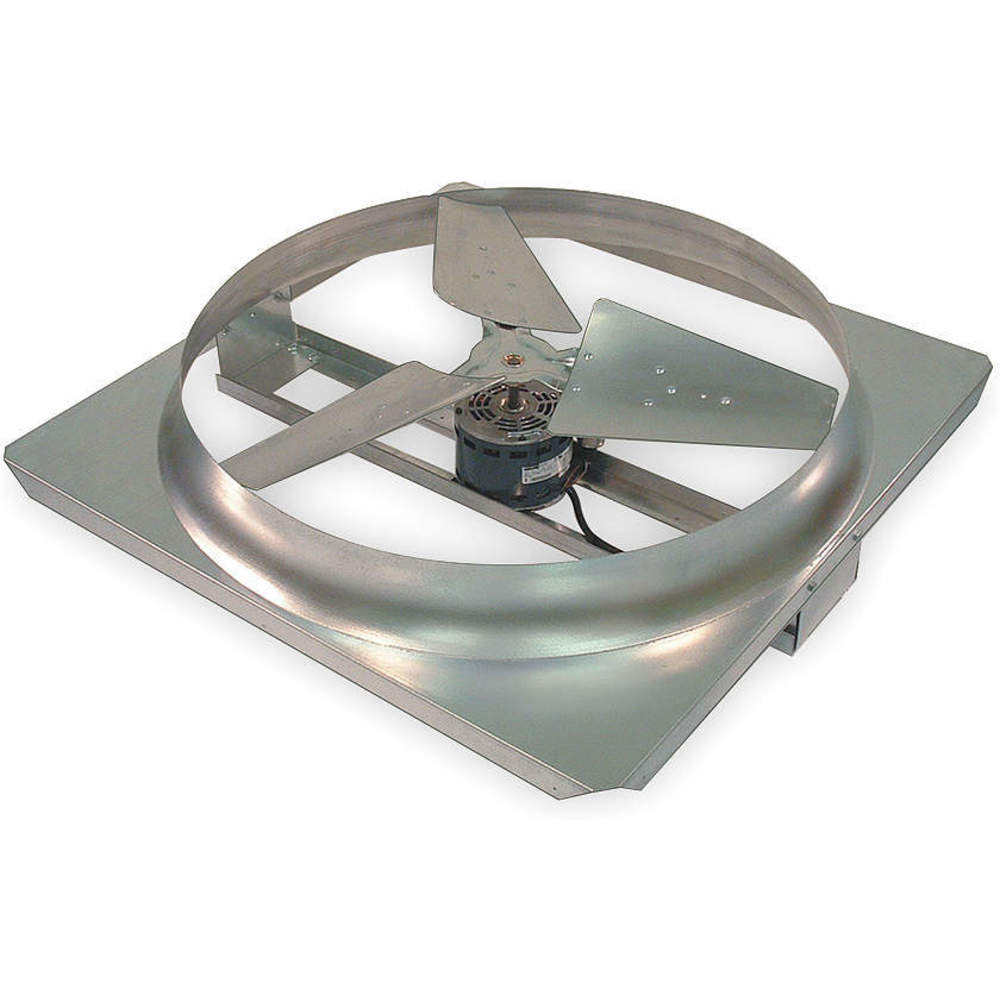

DAYTON 3EAU1 Whole House Fan 24 Inch Direct Dr 120 V
Get it by Tuesday, Dec 23
10.00% off
€508.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Whole House Fan |
| Assembled | Assembled |
| Bearing Type | Sleeve |
| Blade Dia. | 24" |
| Blade Material | Steel |
| Cfm Low | 3500 CFM |
| Cfm Low | 3500 |
| Control Type | Switch |
| Depth | 30" |
| Drive Package Included | No |
| Drive Type | Direct Drive |
| Duct Dia. | Not Applicable |
| Duct Height | Not Applicable |
| Duct Shape | Not Applicable |
| Duct Width | Not Applicable |
| Electrical Connection | Hardwired |
| Fan Speed | 840/625 RPM |
| For Cut-out Height | 30" |
| For Cut-out Width | 30" |
| For High-static Pressure Applications | No |
| Frame Finish | Powder Coated |
| Frame Material | Steel |
| Full Load Amps | 2A |
| Grille Material | Not Applicable |
| Height | 9" |
| High-efficiency Motor | No |
| Housing Finish | Galvanized |
| Housing Material | Steel |
| Hp | 1/4 hp |
| Includes | 12 Hour Timer |
| Includes Dehumidistat | No |
| Includes Grill | No |
| Includes Motor | Yes |
| Max. Airflow | 4700 CFM |
| Maximum Noise Level | 17 sones |
| Motor Horsepower | 1/4 hp |
| Motor Speed | 840 RPM |
| Motor Type | Permanent Split Capacitor |
| Mounting Location | Ceiling |
| Mounting Orientation | Horizontal |
| Noise Level @ 0.000 In Sp @ 5 Ft | 17 sones |
| Noise Level @ 0.100 In Sp @ 5 Ft | 16 sones |
| Number Of Blades | 3 |
| Number Of Fans | 1 |
| Number Of Speeds | 2 |
| Overall Depth | 30" |
| Overall Height | 30" |
| Overall Width | 30" |
| Phase | 1 |
| Power Cord Length | Hardwired |
| Profile Height Family | High |
| Quiet Design | No |
| Requires | Ceiling Shutter |
| Rough Opening Type | Square |
| Speed Controllable | Yes |
| Type | Direct Drive |
| Vent Design | Ductless |
| Ventilation Type | Exhaust |
| Wattage | 220 W |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 76.2 |
| Ship width (cm) | 76.2 |
| HS code | 8414519060 |
| Country of Origin | US |
Product Details:
- Ceiling Shutter (3C510, 4C224)
Product Variants
| Product | Model | Drive Type | Max. Airflow | Maximum Noise Level | Wattage | Number Of Blades | Height | Motor Type | Full Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2EAX5 | Belt Drive | 5600 CFM | 14 sones | 335 W | 4 | 15" | Split Phase | 6.7A | €808.94 |
