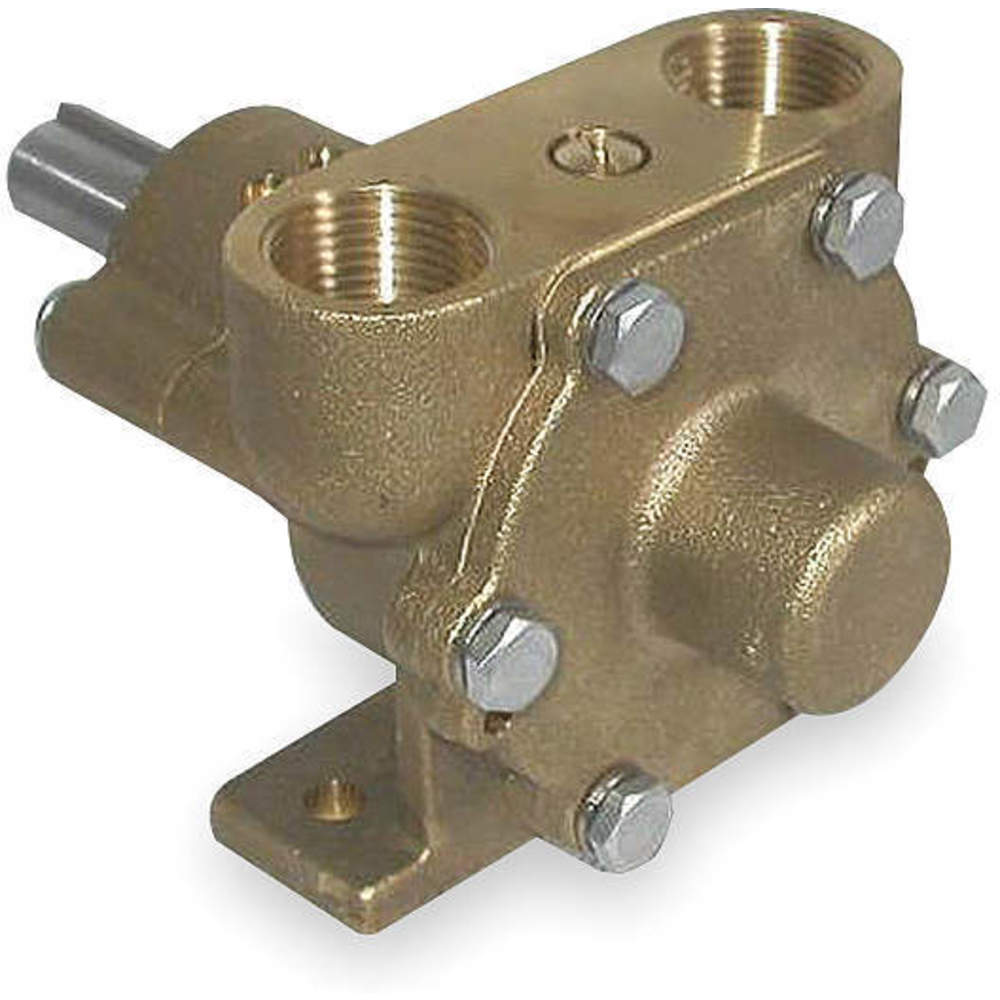

DAYTON 3ACB1 Pump Pedestal Inlet/outlet 3/4 Inch
Item: AC8HAVModel: 3ACB1
7 In Stock
Ships within 2 days via
10.00% off
€552.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pump |
| Bearing Material | Carbon Graphite |
| Bearing Type | Ball, Sleeve |
| Bearings | Carbon Graphite |
| Characteristics | Pumps Are Bi-Directional |
| Cord Length | Not Applicable |
| Discharge Connection | 3/4" , NPT |
| Discharge Connection Size | 3/4" |
| Discharge Connection Type | NPT |
| Duty Cycle | Intermittent |
| Flow Rate - Maximum | 11.9 GPM |
| Flow Rate @ 1 Ft Of Head - Maximum | 11.85 GPM |
| Flow Rate @ 10 Ft Of Head - Maximum | 11.5 GPM |
| Flow Rate @ 10 Ft. | 11.5 GPM |
| Flow Rate @ 20 Ft Of Head - Maximum | 11 GPM |
| Flow Rate @ 20 Ft. | 11 GPM |
| Flow Rate @ 30 Ft Of Head - Maximum | 10.6 GPM |
| Flow Rate @ 30 Ft. | 10.6 GPM |
| Flow Rate @ 40 Ft Of Head - Maximum | 10.1 GPM |
| Flow Rate @ 40 Ft. | 10.1 GPM |
| Flow Rate @ 5 Ft Of Head - Maximum | 11.7 GPM |
| Flow Rate @ 5 Ft. | 11.7 GPM |
| Flow Rate @ 50 Ft. | 9 GPM |
| Flow Rate @ 60 Ft. | 7.8 GPM |
| Gpm Of Water @ 10 Ft. Of Head @ 1725 Rpm | 11.5 GPM |
| Gpm Of Water @ 30 Ft. Of Head | 10.6 GPM |
| Gpm Of Water @ 30 Ft. Of Head @ 1725 Rpm | 10.6 GPM |
| Gpm Of Water @ 5 Ft. Of Head | 11.7 GPM |
| Gpm Of Water @ 50 Ft. Of Head | 9 GPM |
| Gpm Of Water @ 60 Ft. Of Head | 7.8 GPM |
| Height | 3 3/4" |
| Housing Material | Brass |
| Hp | 3/4 hp |
| Impeller | Nitrile |
| Impeller Dia. | 62.2 mm |
| Impeller Material | Buna N |
| Includes | Manual |
| Inlet Size | 3/4" |
| Inlet/outlet | 3/4 NPT |
| Intake Connection Size | 3/4" |
| Intake Connection Type | NPT |
| Length | 5 29/32" |
| Max. Feet Of Head | 80 ft. Of Head |
| Max. Flow Rate | 11.9 GPM |
| Max. Head | 80 ft. |
| Max. Head (ft.) | 80 ft. |
| Max. Hp | 3/4 hp |
| Max. Media Temperature | 180°F |
| Max. Operating Pressure | 34.6 psi |
| Max. Pressure | 34.6 psi |
| Max. Ssu @ 1725 Rpm | 5000 SUS |
| Max. Ssu @ 1725 Rpm | 5000 |
| Max. Suction Lift | 9.4 ft. |
| Max. Suction Lift (ft.) | 9.4 |
| Max. Suction Lift (ft.) | 9.4 ft. |
| Max. Viscosity | 5000 SUS |
| Media Intake Connection Size | 3/4" |
| Media Intake Connection Type | NPT |
| Min. Start Torque | 45 lbs.-in. |
| Motor Mounting Type | Close Coupled |
| Motor Speed (maximum) | 1750 RPM |
| Motor Thermal Protection | Not Applicable |
| Motor Type | Not Applicable |
| Mounting Holes O.c. | 2 1/4" |
| Mounting Type | Close Coupled |
| Nameplate Voltage | Not Applicable |
| Outlet Size | 3/4" |
| Outlet Type | NPT |
| Overall Height | 3 4/5" |
| Overall Length | 6" |
| Overall Width | 3.9" |
| Priming | Self Priming |
| Promotion Restriction | Not Eligible For Promotion |
| Pumps Up To (ft.) | 80 ft. |
| Required Horsepower | 3/4 hp |
| Rpm | 1750 RPM |
| Seal Material | Carbon, Ceramic |
| Seal Type | Mechanical |
| Self Priming | Yes |
| Self-priming | Yes |
| Shaft | 5/8" Stainless Steel |
| Shaft Dia. | 5/8" |
| Shaft Material | Stainless Steel |
| Shaft Outer Diameter | 5/8" |
| Size Height O.c. (in.) | 2 1/8" |
| Suction Lift - Maximum | 9.4 ft. |
| Type | Close Coupled, Pump Head |
| Viscosity - Maximum | 5000 SUS |
| Wetted Material | Brass, Neoprene, Stainless Steel |
| Width | 3 7/8" |
Shipping Info:
| Ship weight (kg) | 2.81 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 21.59 |
| HS code | 8413600090 |
| Country of Origin | CN |
Product Details:
- GPM of Water @ 10 Ft. of Head @ 1725 RPM (11.5)
- GPM of Water @ 30 Ft. of Head @ 1725 RPM (10.6)
- Min. Start Torque (In.-Lbs.) (45)
- Pumps Up To (Ft.) (80)
- Size Height O.C. (In.) (2-1/8)
- Characteristics: Pumps are Bi-Directional
