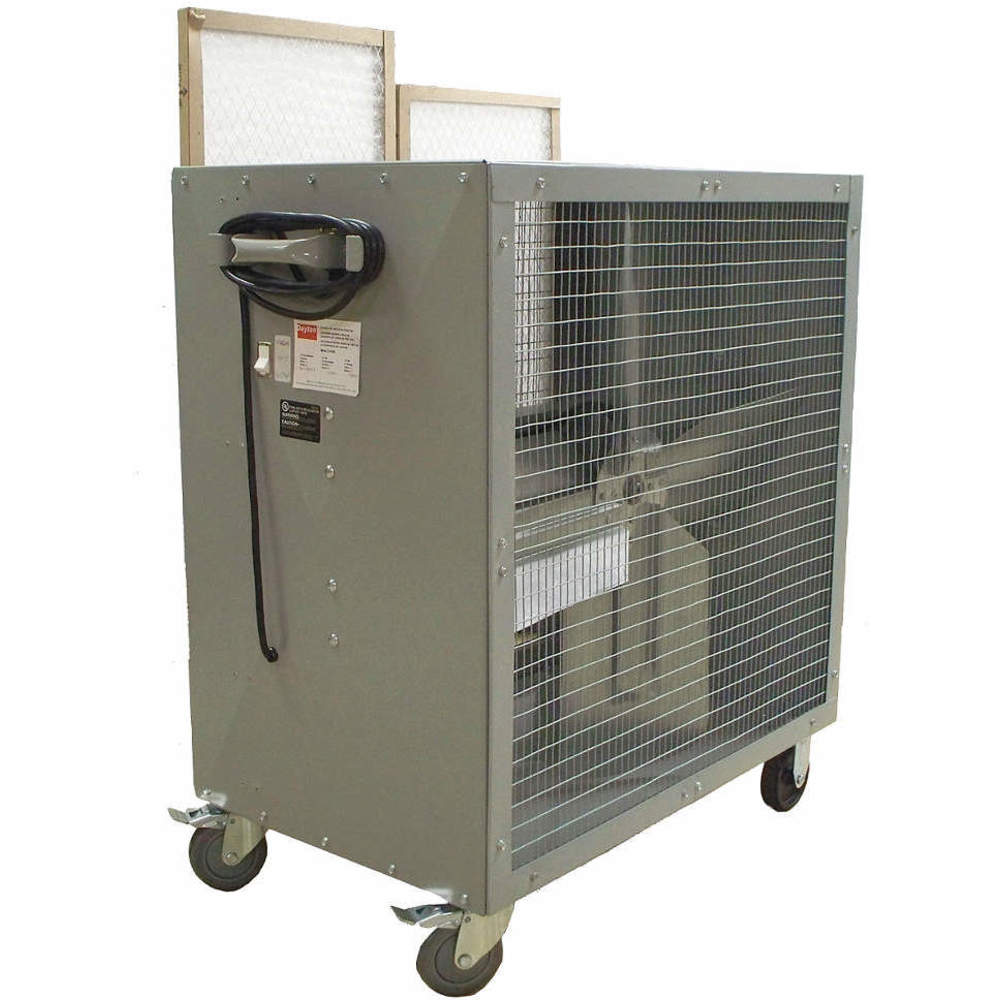

DAYTON 39190 Air Cleaner/circulator 42 Inch 5702 Cfm 115v
Get it by Friday, Feb 13
10.00% off
€1,823.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Cleaner/Circulator |
| Air Flow | 4159/5702 CFM |
| Air Velocity (fpm) @ 10 Ft. | 145 |
| Air Velocity (fpm) @ 20 Ft. | 95 |
| Air Velocity (fpm) @ 40 Ft | 92 FPM |
| Air Velocity (fpm) @ 40 Ft | 92 |
| Air Velocity @ 10 Ft. | 145 FPM |
| Air Velocity @ 20 Ft. | 95 FPM |
| Amps | 6.19A |
| Assembled | Yes |
| Assembly Required | No |
| Bearing Type | Ball |
| Blade Diameter | 42" |
| Blade Material | Galvanized Steel |
| Cfm Low | 4159 |
| Cfm Low | 4159 CFM |
| Cfm/watt | 8.1 |
| Cfm/watt | 8.1 CFM/W |
| Cord Length | 10 ft. |
| Depth | 21" |
| Drive Type | Belt Drive |
| Environmental Applications | Industrial |
| Fan Cord Length | 10 ft. |
| Fan Housing Material | Steel |
| Fan Mounting Location | Floor |
| Fan Speed | 377/275 RPM |
| Finish | Galvanized |
| Guard Material | Steel |
| High Cfm | 5702 CFM |
| Housing Finish | Galvanized |
| Housing Material | Steel |
| Hz | 60 Hz |
| Includes | 4" Rubber And Steel Casters, Cord Wrap, Handle And Filters |
| Max. Depth | 21" |
| Motor Enclosure Design | Open Dripproof |
| Motor Hp | 1/2 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 1725/1100 RPM |
| Motor Type | Permanent Split Capacitor |
| Mounting Style | Mobile |
| Nema Plug Configuration | 5-15P |
| Number Of Blades | 4 |
| Number Of Conductors | 3 |
| Number Of Speeds | 2 |
| Operating Amps | 6.19A |
| Oscillating/non-oscillating | Non Oscillating |
| Oscillation | Non Oscillating |
| Phase | 1 |
| Product Type | Standard-Duty Industrial Fan |
| Rpm | 377/275 RPM |
| Shaft Dia. | 3/4" |
| Sound Level | 90 dBA |
| Thermal Protection | Automatic |
| Voltage | 115V AC |
| Wattage | 703 W |
| Wheeled Base | Mobile |
| Width | 45" |
| Wire Guard Finish | Powder Coat |
Shipping Info:
| Ship weight (kg) | 92.25 |
| Ship height (cm) | 132.08 |
| Ship length (cm) | 130.81 |
| Ship width (cm) | 60.96 |
| HS code | 8421398015 |
| Country of Origin | US |
Product Details:
- Mobile/Stationary (Mobile)
Product Variants
| Product | Model | Number Of Speeds | Voltage | Blade Dia. | Motor Hp | Mounting Location | Guard Material | Thermal Protection | Max. Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1YNW3 | 2 | 120V AC | 24" | 1/3 hp | - | Steel | Automatic Reset | 19 3/4" | €458.23 | |
 |
1YNW4 | 2 | 120V AC | 30" | 1/3 hp | - | Steel | Automatic Reset | 20" | €564.61 | |
 |
1YNW5 | 2 | 120V AC | 36" | 1/2 hp | - | Steel | Automatic Reset | 20 1/4" | €1,002.09 | |
 |
1YNW6 | 2 | 120V AC | 42" | 1/2 hp | - | Steel | Automatic Reset | 20 1/4" | €1,757.04 | |
 |
1YNW7 | 2 | 120V AC | 36" | 1 hp | - | Steel | Automatic Reset | 24 1/4" | €973.22 | |
|
1YNW8 | 2 | 120V AC | 42" | 1 hp | - | Steel | Automatic Reset | 24 1/4" | €1,556.79 | |
 |
2RDZ1 | 2 | 120V AC | 24" | 1/3 hp | - | Galvanized Steel | Automatic Reset | 15" | €699.95 |
