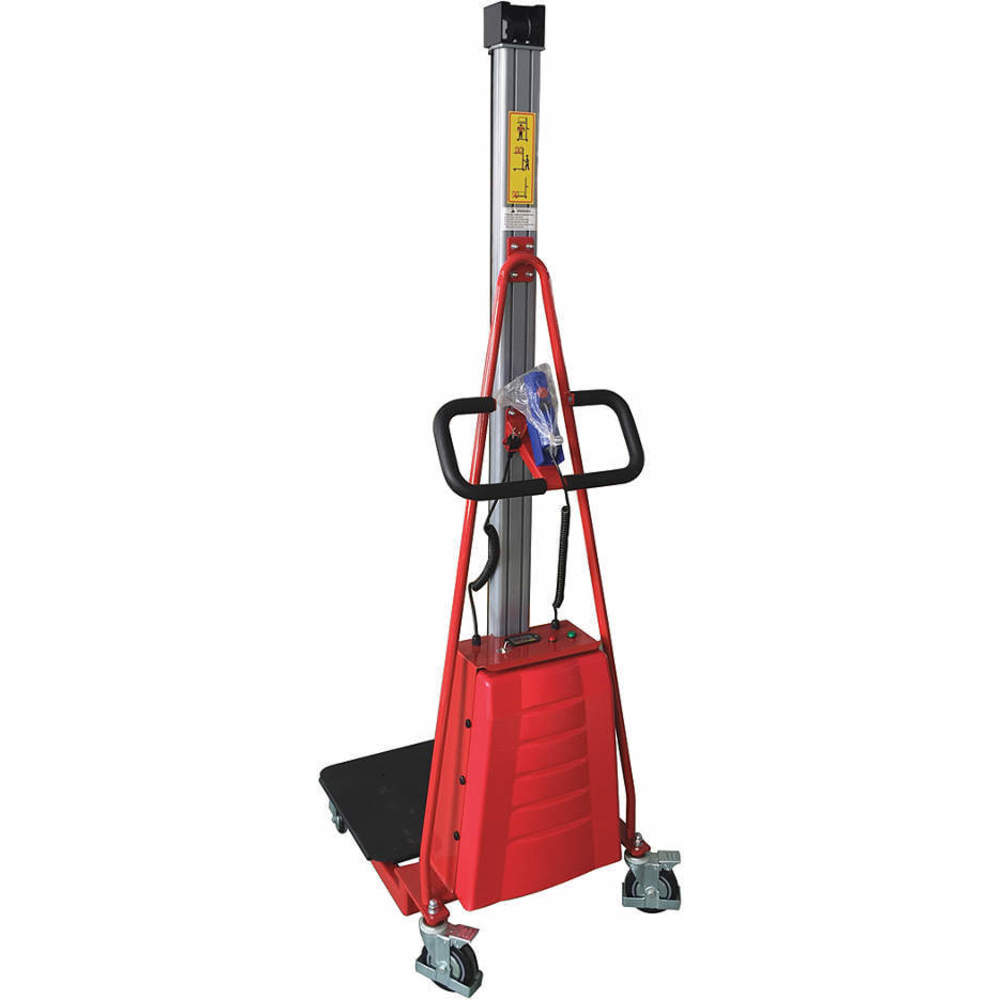

DAYTON 38ER33 Platform Lift Truck, 220 lb Load Capacity, 19 in x 23 3/4 in
Get it by Tuesday, Dec 23
10.00% off
€1.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Platform Lift |
| Assembled | Yes |
| Axle-mounted Wheel Type | Tread On Core |
| Base Inside Width | 20 1/8" |
| Base Legs Inside Dim. | 18-7/8" |
| Base Legs Inside Dim. | 18 7/8" |
| Base Legs Outside Dim. | 22" |
| Base Material | Steel |
| Base Outside Width | 21 1/2" |
| Base Style | Fixed Straddle |
| Base Style | Fixed |
| Battery Voltage | DC |
| Brake Type | Face Contact Brake |
| Caster Mounting Type | Plate |
| Caster Stem Type | Grip Neck |
| Caster Type | Tread On Core |
| Caster Wheel Dia. | 5" |
| Caster Wheel Type | Tread On Core |
| Caster Wheel Width | 1 1/8" |
| Caster Wheel/tread Material | Polyurethane |
| Color | Black, Red |
| Frame Finish | Powder Coated |
| Frame Material | Steel |
| Frame Type | Rounded Back |
| Front Caster Dia. | 3" |
| Handle Material | Plastic |
| Handle Type | Flow Back |
| Includes | Battery, Internal Charger With Cord |
| Invertible Forks | No |
| Lift Base Style | Fixed Straddle |
| Lift Control | Push Button |
| Lift Mechanism | Chain/Cable |
| Lift Mobility | Electric Lift, Manual Push |
| Lift Speed Loaded | 28 sec. to 32 sec. |
| Lift Speed Unloaded | 23 sec. to 27 sec. |
| Lifting Height Max. | 67" |
| Load Capacity | 220 lbs. |
| Load Center | 9" |
| Max. Lifting Height | 67" |
| Min. Lifting Height | 5 1/2" |
| Minimum Lifting Height | 5 1/2" |
| Non-marking Axle-mounted Wheels | Yes |
| Operation | Powered, Manual |
| Overall Height | 79 5/8" |
| Overall Height With Platform Lowered | 79 5/8" |
| Overall Height With Platform Raised | 79 5/8" |
| Overall Length | 33" |
| Overall Lxwxh | 33" x 24" x 79.625" |
| Overall Width | 24" |
| Platform Length | 19" |
| Platform Lxw | 19" x 23.75" |
| Platform Material | Iron |
| Platform Width | 23 3/4" |
| Rear Caster Dia. | 5" |
| Wheel Configuration | 2 Swivel, 2 Swivel With Brake |
Shipping Info:
| Ship weight (kg) | 69.3 |
| Ship height (cm) | 200.66 |
| Ship length (cm) | 81.28 |
| Ship width (cm) | 60.96 |
| Country of Origin | CN |
Product Details:
Dayton 38ER33 platform lift truck is a type of material handling equipment used to elevate workers and their tools to perform tasks at heights. It consists of a platform that can be raised and lowered vertically using crisscrossing metal supports. This scissor lift is commonly used for maintenance, construction, installation and repair work at heights.
Features:
- Dayton 38ER33 platform lift truck uses manual operation for precise control during lifting tasks.
- It has a sturdy steel frame with a powder-coated finish for durability.
- This platform lift truck comes with a push-button lift control for easy operation.
- It includes a platform made of iron for stability and strength.
- This Dayton platform lift truck features non-marking axle-mounted wheels, ideal for indoor use without leaving scuff marks.
- It has a handle with a flow-back design for comfortable gripping during operation.
- Dayton 38ER33 platform lift truck comes with an internal charger and cord for convenient recharging of the battery.
- It further features a rounded back frame design for enhanced manoeuvrability.
Frequently Asked Questions:
Q. What is the load capacity of Dayton 38ER33 platform lift truck?
A. It can handle loads up to 220 lb. However, if you want to handle heavier loads regularly, you can opt for a Dayton 13X481 platform lift truck with a load capacity of 400 lb.
Q. Can this platform lift truck be used on slopes?
A. The platform has four wheels, two of which are equipped with brakes. As a result, it is suitable for use on slopes.
Q. Can this platform lift truck be operated by a single person?
A. Dayton 38ER33 platform lift truck includes a plastic handle for moving it and face-contact brakes to stop it. Both of these features make this lift truck ideal for single-person use.
