DAYTON
See our 856 reviews on
DAYTON 36VF21 GP Motor TEFC 2 HP 1745 rpm Belt Drive | AH7KMK

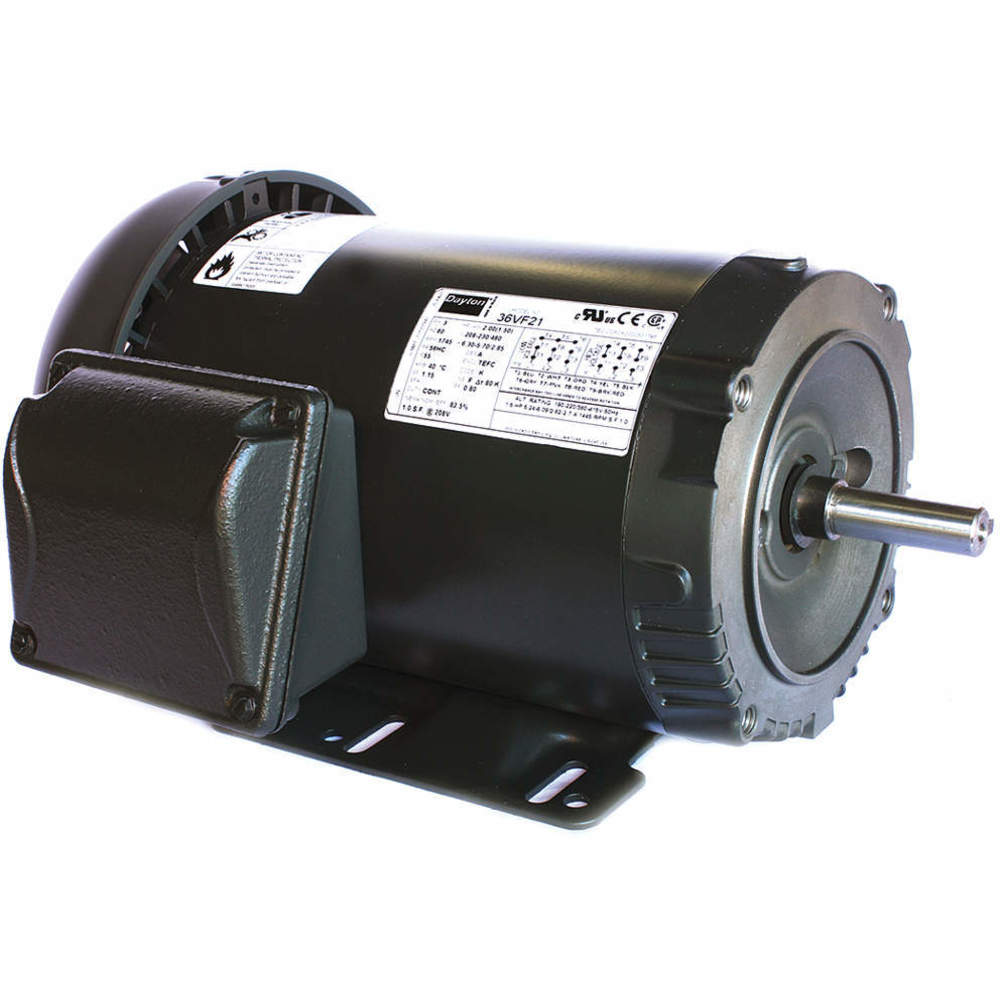

DAYTON 36VF21 GP Motor TEFC 2 HP 1745 rpm Belt Drive

Item: AH7KMKModel: 36VF21
Check Availability
In Stock
Full Load Amps

Get it by Tuesday, Dec 23

€561.59
10.00% off
€505.42 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient Temp. 104°F
Base Type Rigid Base
Bearing Type Ball
Cc Number CC029A
Duty Cycle Continuous
Efficiency 86.5%
Efficiency Group Premium
Frame 56HC
Frame Material Steel
Frequency 60 Hz
Full Load Amps 5.7/2.8A
Green Certification Or Other Recognition NEMA Premium Rated
Hp 2 hp
Insulation Class Class F
Inverter Rated Yes
Length Less Shaft 11 5/8"
Manufacturers Warranty Length 1 yr.
Max. Ambient Temp. 40°C
Motor Application General Application
Motor Bearings Ball
Motor Design 3 Phase
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Rolled Steel
Motor Mounting Position Horizontal
Motor Mounting Type Face/Base
Motor Mounting Type Face, Base
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Type Three Phase
Nameplate Rpm 1745 RPM
No. Of Speeds 1
Nominal Efficiency 86.5%
Number CC030A
Overall Length 13 1/2"
Phase 3
Rpm Range 1701-1800 RPM
Service Factor 1.15
Shaft Dia. 5/8"
Shaft Length 1 7/8"
Thermal Protection None
Voltage 230/460V AC

Shipping Info:

Ship weight (kg) 18.27
Ship height (cm)26.42
Ship length (cm)45.47
Ship width (cm)29.72
Country of OriginMX

Product Details:

    • No. of Speeds : 1

Product Variants

ProductModelMotor Enclosure DesignVoltagePhaseHpNameplate RpmFrequencyFull Load AmpsService FactorPrice
DAYTON 10C897 Motor 3 Phase 1/2hp 1725 208-230/460 Eff 67.3 | AA2BLZ 10C897Totally Enclosed Fan Cooled208-230/460V AC31/2 hp1725 RPM50/60 Hz1.9/1A1€470.31
DAYTON 10C899 Motor 3 Phase 3/4hp 1725 208-230/460 Eff 73.6 | AA2BMA 10C899Totally Enclosed Fan Cooled208-230/460V AC33/4 hp1725 RPM50/60 Hz2.8/1.5A1€472.60
DAYTON 10C901 Motor 3 Phase 1/2hp 3450 208-230/460 Eff 71.0 | AA2BMB 10C901Totally Enclosed Fan Cooled208-230/460V AC31/2 hp3450 RPM50/60 Hz2/1A1.15€436.30
DAYTON 11W365 Motor 3 Phase 1/4hp 1750 208-230/460 Eff 68.0 | AA3VCB 11W365Totally Enclosed Fan Cooled230/460V AC31/4 hp1720 RPM60 Hz1/0.5A1.15€438.71
DAYTON 11W368 Motor 3 Phase 1/3hp 1140 208-230/460 Eff 68.0 | AA3VCC 11W368Totally Enclosed Fan Cooled230/460V AC31/3 hp1140 RPM60 Hz1.5/0.7A-€434.31
DAYTON 11W369 Motor 3 Phase 1.5hp 1170 208-230/460v Eff 87.5 | AA3VCD 11W369Totally Enclosed Fan Cooled230/460V AC31 1/2 hp1170 RPM60 Hz4.4/2.2A1.15€1,471.34
WEG 01518ST3QIERB254T-W Finfan Motor, 3 Phase, Tefc 15 Hp, 1765 Rpm, 254t | AA8MBW 19C664 01518ST3QAP254T-W22Totally Enclosed Fan Cooled460V AC315 hp1765 RPM50/60 Hz18A1.25€4,875.87
