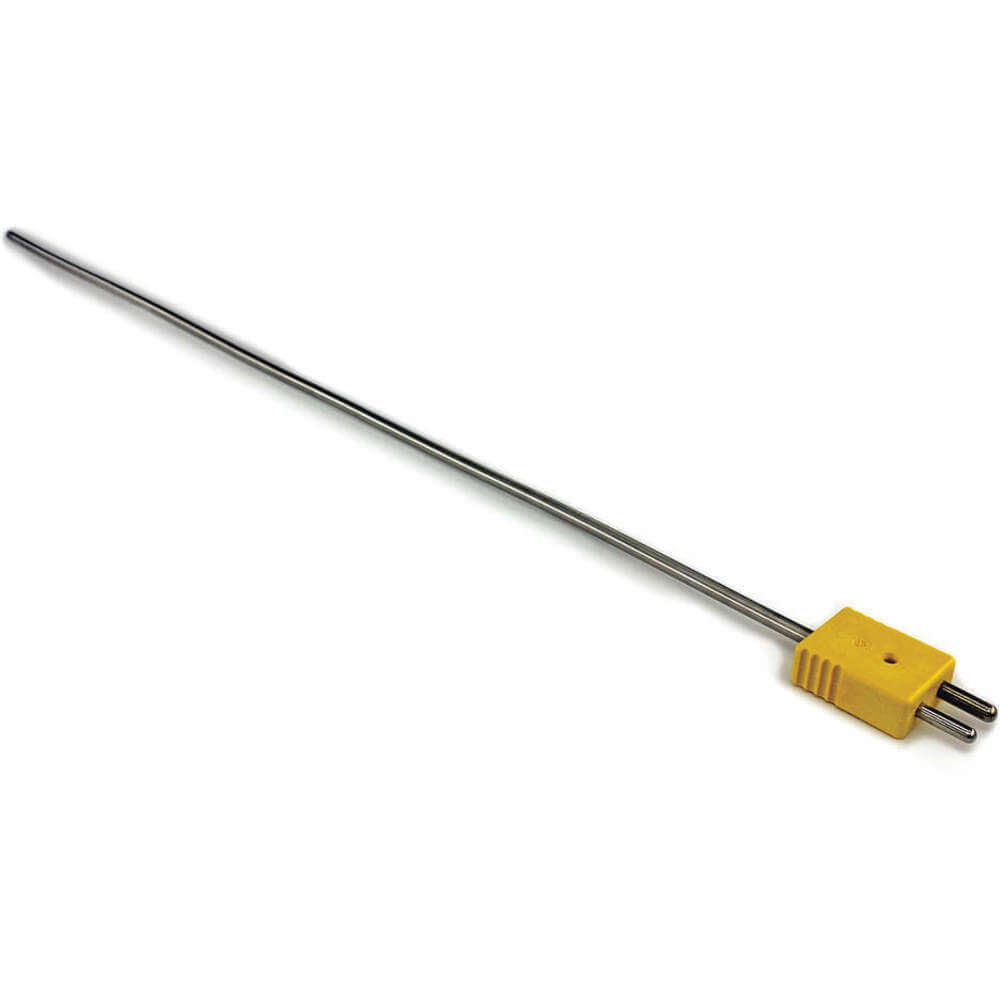

DAYTON 36GK99 Thermocouple Probe Type K 18 Inch Length 19 AWG
Item: AH6VAGModel: 36GK99
7 In Stock
Ships within 2 days via
10.00% off
€70.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thermocouple Probe |
| Accuracy | ±0.4 Over 293°C, ±1.1 Below 293°C |
| Alloy Type | Alloy 600 |
| Cable Length | 18" |
| Cable Material | Magnesium Oxide Insulation |
| Connector Type | Standard Plug |
| Error Accuracy (%) | (Over 293 C) +/-0.4 |
| Error Accuracy (deg. C) | +/-1.1 Below 293 |
| Fitting Type | Compression |
| For Air | Yes |
| For Application | Air, Gas, Liquid |
| For Gases | Yes |
| For Liquids And Gels | Yes |
| For Solids | No |
| For Surfaces | No |
| Grounded / Ungrounded | Ungrounded |
| Head Connection | 1/16" Mnpt, 1/2" Mnpt, 1/4" Mnpt, 1/8" Mnpt |
| Head Material | Inconel |
| Includes Thermowell | No |
| Insulation Material | Magnesium Oxide |
| Junction Type | Ungrounded |
| Max. Pressure | 1000 psi |
| Max. Temp. | 2280°F |
| Maximum Temperature °c | 1250°C |
| Maximum Wire Gauge | 20 AWG |
| Minimum Temperature | -200°C |
| Minimum Temperature °f | -325°F |
| Plug Or Connector Type | Standard Plug |
| Probe Bend | Straight |
| Probe Dia. | 0.188" |
| Probe Length | 18" |
| Probe Sheath Material | Inconel |
| Probe Size | 3/16" x 18" |
| Probe Tip Dia. | 0.188" |
| Process Mounting Size | 1/4" |
| Process Mounting Type | MNPT |
| Product Type | Thermocouple Probe |
| Response Time | 2.3 sec. |
| Sensor Type | Thermocouple |
| Sheath Size | 0.188" |
| Sheath Size (in.) | 0.188 |
| Sheath Size (in.) | 0.188" |
| Temp. Limit | 2150°F |
| Temp. Limit (deg. F) | 2150 |
| Temperature Range | -325°F to +2280°F |
| Thermocouple Element | 19 AWG |
| Thermocouple Type | K |
| Thermocouple Type | Type K |
| Tip Style | Rounded |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 2.03 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
Product Details:
- Grounded / Ungrounded : Ungrounded
Product Variants
| Product | Model | Sheath Size (in.) | Thermocouple Element | Probe Length | Thermocouple Type | Plug Or Connector Type | Temp. Limit | Head Material | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
36GK68 | 0.125" | 22 AWG | 12" | Type J | Mini Plug | 1650°F | Stainless Steel | Metal Insulated Cable | €44.31 | |
|
36GK69 | 0.125" | 22 AWG | 18" | Type J | Mini Plug | 1650°F | Stainless Steel | Metal Insulated Cable | €49.93 | |
 |
36GK70 | 0.125" | 22 AWG | 24" | Type J | Mini Plug | 1650°F | Stainless Steel | Metal Insulated Cable | €55.51 | |
 |
36GK71 | 0.125" | 22 AWG | 12" | Type K | Mini Plug | 2150°F | Inconel | Metal Insulated Cable | €46.27 | |
|
36GK72 | 0.125" | 22 AWG | 18" | - | Mini Plug | 2150°F | Inconel | Metal Insulated Cable | €53.50 | |
 |
36GK73 | 0.125" | 22 AWG | 24" | Type K | Mini Plug | 2150°F | Inconel | Metal Insulated Cable | €61.82 | |
|
36GK74 | 0.125" | 22 AWG | 12" | Type J | Mini Plug | 1650°F | Stainless Steel | Metal Insulated Cable | €51.31 |
