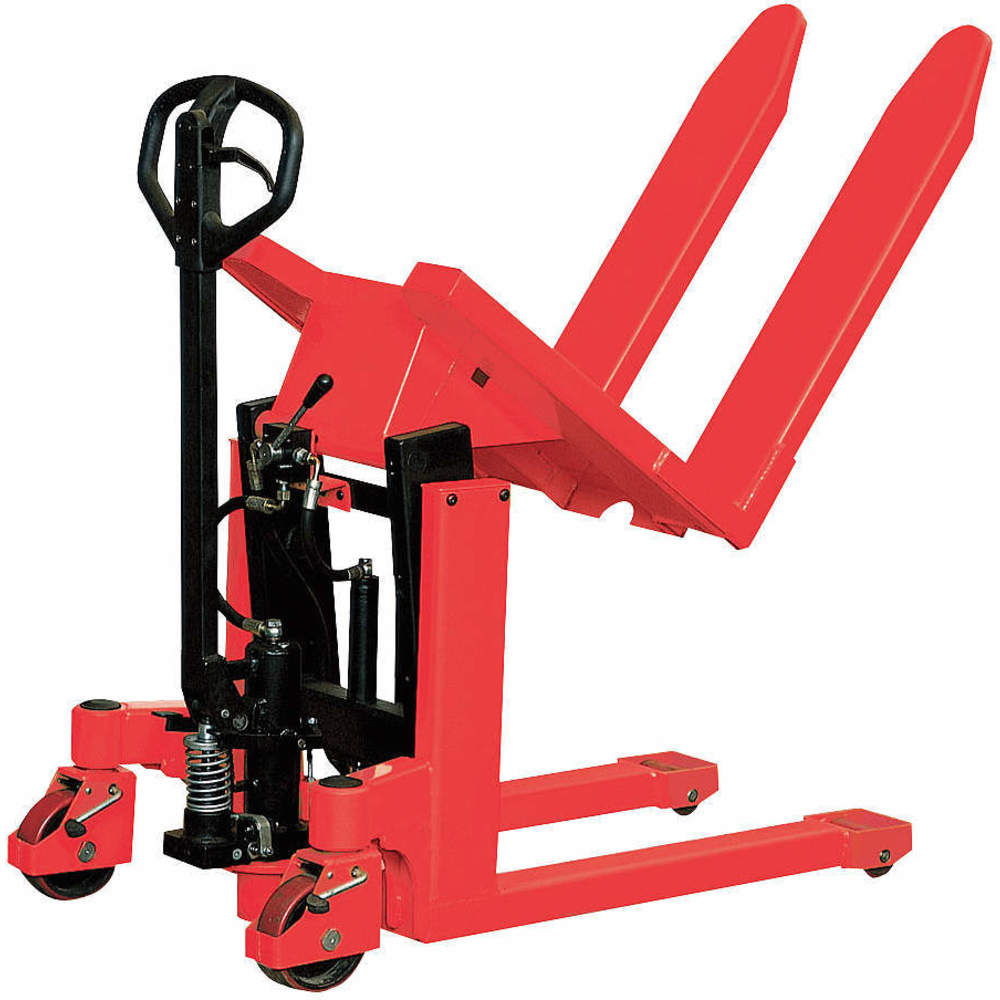

DAYTON 33W285 Manual Pallet Tilter 2200 Lb. 21 Inch Width
Get it by Tuesday, Feb 17
10.00% off
€2,882.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Manual Pallet Tilter |
| Assembled | No |
| Axle Dia. | 3/4" |
| Back Rest Height | 23 1/2" |
| Base Inside Width | 13 1/2" |
| Base Material | Steel |
| Base Outside Width | 16 1/2" |
| Caster Brake Type | Side Pedal Brake |
| Caster Wheel Dia. | 5" |
| Caster Wheel Material | Polyurethane |
| Color | Red |
| For Pallet Type | Open |
| For Surface Type | Concrete |
| Fork Height Lowered | 3-1/4" to 11" |
| Fork Height Raised | 29" to 37" |
| Fork Length | 32" |
| Fork Style | Standard |
| Fork Thickness | 2" |
| Fork Type | Fixed |
| Frame Finish | Powder Coated |
| Frame Material | Steel |
| Handle Height | 45 1/2" |
| Handle Type | Tiller |
| Lift Control | Hand Pump |
| Lift Mechanism | Hydraulic |
| Lifting Height Per Pump | 3/8" |
| Load Capacity | 2200 lbs. |
| Load Center | 19 1/2" |
| Load Wheel Bearing Type | Plain |
| Load Wheel Diameter | 2 3/4" |
| Load Wheel Width | 2 3/4" |
| Load Wheel/tread Material | Polyurethane |
| Maximum Lifting Height | 31 1/2" |
| Maximum Lifting Height Before Tilt | 60" |
| Maximum Tilting Degree | 90° |
| Minimum Lifting Height | 3 1/2" |
| Non-marking Axle-mounted Wheels | Yes |
| Overall Height | 45" |
| Overall Length | 48" |
| Steer Wheel Bearing Type | Plain |
| Steer Wheel Diameter | 6" |
| Steer Wheel Width | 2" |
| Steer Wheel/tread Material | Polyurethane |
| Steering Arc | 90° |
| Strokes To Maximum Tilting | 0.454 |
| Tilting Angle | 90 Degrees Upward |
| Tilting Deg. | 90° |
| Turning Radius | 44" |
| Width Across Forks | 22" |
| Width Across Forks | 21" |
| Width Between Forks | 9 1/2" |
| Width Between Forks | 9-1/4" |
Shipping Info:
| Ship weight (kg) | 200.7 |
| Ship height (cm) | 114.3 |
| Ship length (cm) | 121.92 |
| Ship width (cm) | 68.58 |
| HS code | 8427900040 |
| Country of Origin | CN |
Product Variants
| Product | Model | Load Capacity | Handle Type | Fork Length | Width Across Forks | Width Between Forks | Overall Height | Overall Length | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11K273 | 1100 lbs. | Raised | 44" | 27" | 14" | 42" | 61" | Steel | €2,445.65 | |
|
11K274 | 1100 lbs. | Raised | 44" | 20 1/2" | 8" | 42" | 61" | Steel | €2,027.20 | |
 |
11K275 | 2200 lbs. | Dual Tiller, Raised | 44" | 20 1/2" | 8" | 50" | 64 1/2" | Steel | €2,577.08 | |
|
11K276 | 2200 lbs. | Dual Tiller, Raised | 44" | 27" | 14" | 50" | 64 1/2" | Steel | €2,164.87 | |
 |
11K277 | 3000 lbs. | Tiller | 46" | 20 1/2" | 8" | 65" | 67" | Steel | €3,014.95 | |
|
11K278 | 3000 lbs. | Tiller | 46" | 27" | 14 1/2" | 65" | 67" | Steel | €2,265.47 | |
 |
2PLH7 | 2200 lbs. | Tiller | 46" | 27" | 14 1/2" | 48 1/2" | 61 3/4" | Steel | €1,469.02 |
