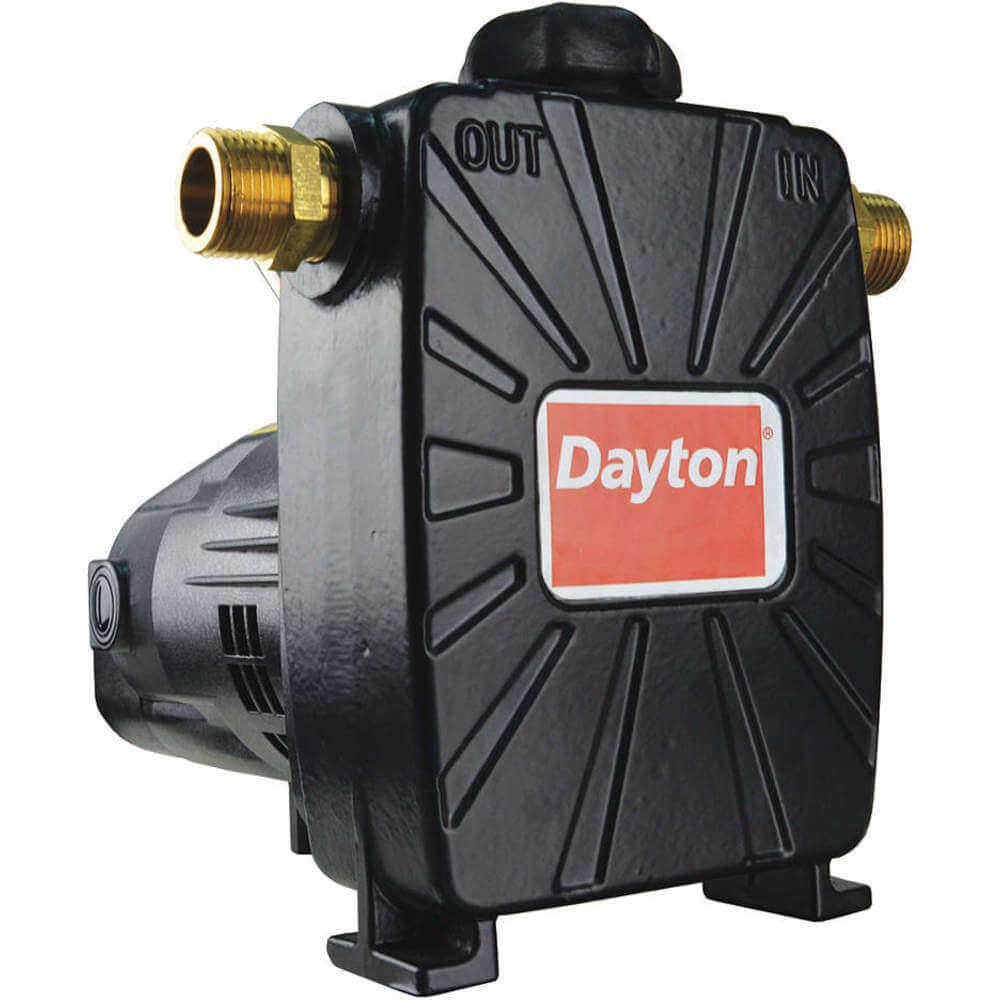

DAYTON 33RW83 Utility Pump 1/2 HP 1 Ph 115V 8A ODP
Get it by Tuesday, Feb 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€420.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Utility Pump |
| Amps | 8A |
| Bearing Type | Ball |
| Best Efficiency Flow | 10.7-15.8 GPM |
| Best Efficiency Flow Rate | 10.7-15.8 GPM |
| Best Efficiency Head | 39 ft. to 66 ft. |
| Best Efficiency Range Gpm @ Head | 7.90-14.30 GPM @ 39.30-65.60 ft. |
| Compatible Hose Size | 3/4" |
| Discharge Connection | 3/4" , NPT |
| Discharge Size | 3/4" |
| Discharge Type | NPT |
| Duty Cycle | Intermittent |
| Flow Rate @ 1 Ft. | 23.7 GPM |
| Flow Rate @ 10 Ft. | 21.7 GPM |
| Flow Rate @ 100 Ft. | 3.1 GPM |
| Flow Rate @ 20 Ft. | 19.5 GPM |
| Flow Rate @ 30 Ft. | 17.7 GPM |
| Flow Rate @ 40 Ft. | 15.8 GPM |
| Flow Rate @ 5 Ft. | 22.5 GPM |
| Flow Rate @ 50 Ft. | 13.7 GPM |
| Flow Rate @ 60 Ft. | 11.6 GPM |
| Flow Rate @ 70 Ft. | 6.9 GPM |
| Flow Rate @ 80 Ft. | 7.5 GPM |
| Flow Rate @ 90 Ft. | 3 GPM |
| Frequency | 60 Hz |
| Gpm Of Water @ 1 Ft. Of Head | 23.7 |
| Gpm Of Water @ 35 Ft. Of Head | 15.8 |
| Gpm Of Water @ 90 Ft. Of Head | 3 |
| Housing Material | Cast Iron |
| Hp | 1/2 hp |
| Impeller Material | Fiberglass, Nylon |
| Impeller Type | Semi Open |
| Includes | (2) 3/4" Garden Hose Adapters, (2) Replacement Brushes, Suction Strainer |
| Inlet Size | 3/4" |
| Intake Connection Size | 3/4" |
| Intake Connection Type | NPT |
| Intake Size | 3/4" |
| Intake Type | NPT |
| Manufacturer Warranty Length | 1 yr. |
| Max. Case Pressure | 100 psi |
| Max. Flow @ 10 Ft. Of Head | 21.7 GPM |
| Max. Flow Rate @ 1 Foot Of Head | 23.7 GPM |
| Max. Flow Rate @ 100 Ft Of Head | 3.1 GPM |
| Max. Flow Rate @ 15 Ft. | 20.4 GPM |
| Max. Flow Rate @ 20 Feet Of Head | 19.5 GPM |
| Max. Flow Rate @ 30 Feet Of Head | 17.7 GPM |
| Max. Flow Rate @ 40 Feet Of Head | 15.8 GPM |
| Max. Flow Rate @ 5 Feet Of Head | 22.5 GPM |
| Max. Flow Rate @ 50 Feet Of Head | 13.7 GPM |
| Max. Flow Rate @ 60 Ft Of Head | 11.6 GPM |
| Max. Flow Rate @ 70 Ft Of Head | 6.9 GPM |
| Max. Flow Rate @ 80 Ft Of Head | 7.5 GPM |
| Max. Flow Rate @ 90 Ft Of Head | 3 GPM |
| Max. Head | 118 ft. |
| Max. Liquid Temp. | 120°F |
| Max. Media Temperature | 120°F |
| Max. Pressure | 51 psi |
| Max. Shut Off Pressure | 51 psi |
| Max. Suction Lift | 15 ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Type | Brushed |
| Outlet Size | 3/4" |
| Outlet Type | NPT |
| Overall Height | 8 1/2" |
| Overall Length | 11 4/5" |
| Overall Width | 5.3" |
| Phase | 1 |
| Port Connection Combined | 3/4" NPT x 3/4" NPT |
| Power Cord Length | 20 ft. |
| Prime Type | Self-Priming |
| Priming | Self Priming |
| Pump Housing Material | Cast Iron |
| Seal Material | Carbon Ceramic |
| Self Priming | Yes |
| Specific Gravity | 1 |
| Suction Lift | 20 ft. |
| Voltage | 115V AC |
| Wetted Material | Carbon, Cast Iron, Ceramic, Fiberglass, Nylon, Stainless Steel |
| Width | 6 1/4" |
Shipping Info:
| Ship weight (kg) | 7.74 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 29.97 |
| Ship width (cm) | 13.46 |
| Country of Origin | US |
Product Details:
- GPH of Water @ 5 PSI : 1250
- GPH of Water @ 10 PSI : 1140
- GPH of Water @ 15 PSI : 950
- GPH of Water @ 20 PSI : 745
- GPH of Water @ 25 PSI : 570
- GPH of Water @ 30 PSI : 427
- GPH of Water @ 35 PSI : 270
- GPH of Water @ 40 PSI : 198
Product Variants
| Product | Model | Impeller Material | Hp | Housing Material | Outlet Size | Voltage | Outlet Type | Max. Suction Lift | Power Cord Length | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3ABZ6 | Buna N | 3/4 hp | Brass | 1" | 115/230V AC | - | - | - | 1 | €2,499.99 | |
 |
3ACA4 | Buna N | 1/12 hp | Non Metallic | 3/4" | - | MGHT | - | - | 1 | €383.65 | |
 |
3ACA5 | Buna N | 1/12 hp | Non Metallic | 3/4" | - | MGHT | - | - | 1 | €347.19 | |
 |
3ACA6 | Buna N | 1/12 hp | Non Metallic | 3/4" | - | MGHT | - | - | 1 | €303.82 | |
 |
3ACC1 | Buna N | 3/4 hp | Brass | 1" | 115/230V AC | - | - | - | 1 | €1,455.72 | |
 |
3ACC5 | Buna N | 1/2 hp | Stainless Steel | 3/4" | 115/230V AC | - | - | - | 1 | €2,848.12 | |
 |
3ACC7 | Buna N | 1 hp | Stainless Steel | 1 1/4" | 115/230V AC | - | - | - | 1 | €2.48 |
