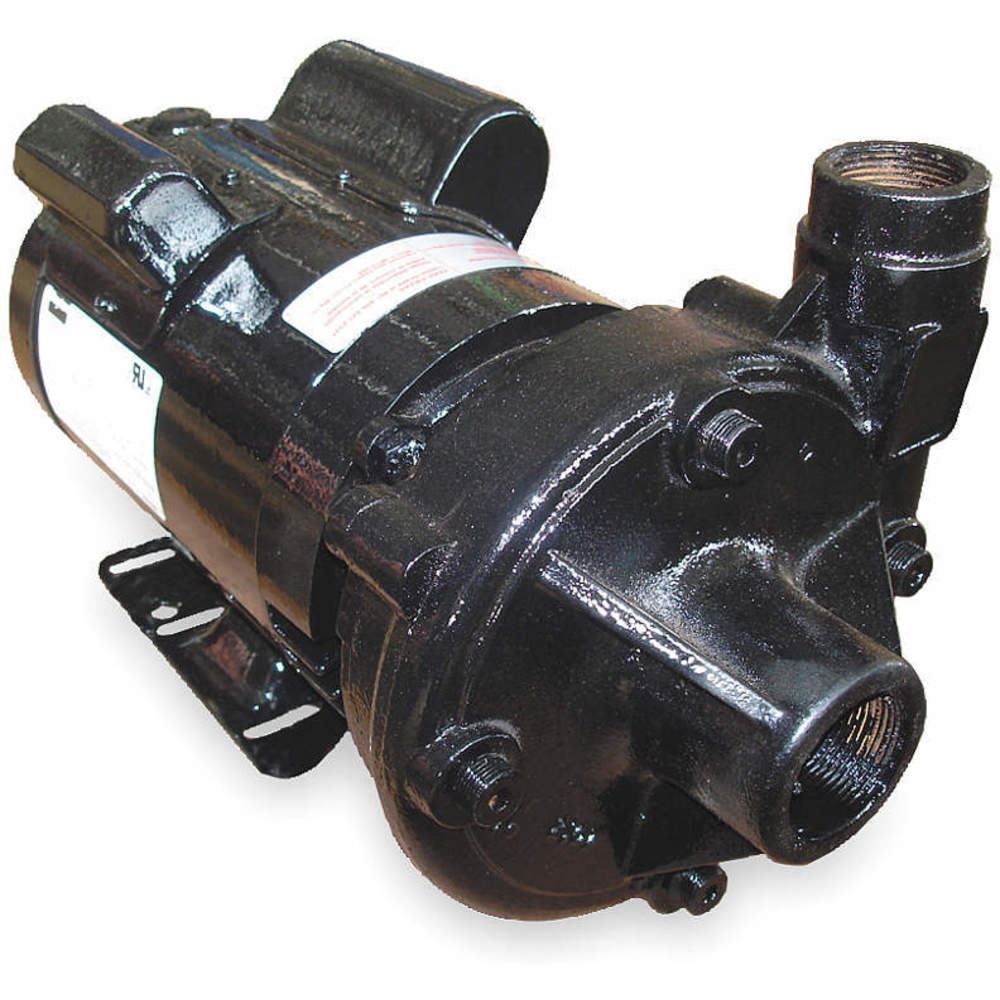

DAYTON 2ZXJ7 Centrifugal Pump 1 1/2 Hp 1ph 115/230v
Get it by Wednesday, Dec 24
10.00% off
€891.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Centrifugal Pump |
| Amps | 13.5/6.4A |
| Bearing Type | Ball |
| Best Efficiency Flow | 54 GPM |
| Best Efficiency Flow Range @ Head | 40 to 78 GPM @ 80 to 40 ft. |
| Best Efficiency Flow Rate @ Head | 54 GPM @ 70 ft. |
| Best Efficiency Head | 70 ft. |
| Compatible Discharge Pipe Size | 1 1/4" |
| Compatible Intake Pipe Size | 1 1/2" |
| Compatible With Media Type | Non Flammable Liquids |
| Connection Type | NPT |
| Discharge Type | NPT |
| Drain Plug | Easily Accessible |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Feet Of Head (minimum) | 10 ft. |
| Flow Rate @ 10 Ft Of Head (maximum) | 94 GPM |
| Flow Rate @ 20 Ft Of Head (maximum) | 90 GPM |
| Flow Rate @ 30 Ft Of Head (maximum) | 85 GPM |
| Flow Rate @ 40 Ft Of Head (maximum) | 78 GPM |
| Flow Rate @ 50 Ft Of Head (maximum) | 71 GPM |
| Flow Rate @ 60 Ft Of Head (maximum) | 62 GPM |
| Flow Rate @ 70 Ft Of Head (maximum) | 54 GPM |
| Flow Rate @ 80 Ft Of Head (maximum) | 43 GPM |
| Flow Rate @ 90 Ft Of Head (maximum) | 32 GPM |
| For Media Type | Non-Flammable Liquids |
| Frame | 56J |
| Frequency | 60 Hz |
| Gpm Of Water @ 90 Ft. Of Head | 32 |
| Height | 8.9" |
| Housing Material | Cast Iron |
| Hp | 1 1/2 hp |
| Hp - Pumps | 1 1/2 hp |
| Impeller Design | Closed |
| Impeller Material | Cast Iron |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet Pressure | 200 psi |
| Length | 16 1/3" |
| Max. Case Pressure | 200 psi |
| Max. Feet Of Head | 90 ft. |
| Max. Flow Rate @ 10 Ft. | 94 GPM |
| Max. Flow Rate @ 15 Ft. | 92 GPM |
| Max. Flow Rate @ 20 Ft. | 90 GPM |
| Max. Flow Rate @ 25 Ft. | 87 GPM |
| Max. Flow Rate @ 40 Ft. | 78 GPM |
| Max. Flow Rate @ 50 Ft. | 71 GPM |
| Max. Flow Rate @ 70 Ft. | 54 GPM |
| Max. Flow Rate @ 80 Ft. | 43 GPM |
| Max. Flow Rate @ 90 Ft. | 32 GPM |
| Max. Flow Rate @ Head | 94 GPM @ 10 ft. |
| Max. Head | 110 ft. |
| Max. Liquid Temp. | 200°F |
| Max. Operating Pressure | 47 psi |
| Max. Solid Dia. | 5/16" |
| Max. Specific Gravity | 1 |
| Media Type | Non Flammable Liquids |
| Min. Flow Rate @ Head | 32 GPM @ 90 ft. |
| Min. Head | 10 ft. |
| Motor Enclosure - Pumps | Open Dripproof |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Designation | 56J |
| Motor Type | Open Dripproof |
| Overall Height | 8.9" |
| Overall Length | 16.3" |
| Overall Width | 8 4/5" |
| Phase | 1 |
| Port Rotation | Four Position |
| Pump Housing Material | Cast Iron |
| Rpm | 3450 RPM |
| Rpm (maximum) | 3450 RPM |
| Screw Finish | Zinc Plated |
| Seal Application | Long Life When Not Run Dry Or Pumping Abrasives |
| Seal Material | Viton |
| Seal Type | Mechanical |
| Service Factor | 1.3 |
| Shaft Material | Stainless Steel |
| Shut Off Pressure | 47 psi |
| Shut Off Pressure (maximum) | 47 psi |
| Solid Diameter (maximum) | 0.31" |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 |
| Type | High Head |
| Voltage | 115/230V AC |
| Volute Material | Cast Iron |
| Wetted Material | Carbon, Cast Iron, Ceramic, Stainless Steel, Viton |
| Wetted Materials | Carbon, Cast Iron, Ceramic, Stainless Steel, Viton |
| Width | 8 4/5" |
Shipping Info:
| Ship weight (kg) | 32.66 |
| Ship height (cm) | 22.61 |
| Ship length (cm) | 41.4 |
| Ship width (cm) | 22.35 |
| HS code | 8413702005 |
| Country of Origin | IN |
Product Variants
| Product | Model | Hp | Max. Flow Rate @ 40 Ft. | Voltage | Phase | Max. Flow Rate @ 20 Ft. | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2ZWZ6 | 1/2 hp | 32 GPM | 115/230V AC | 1 | 39 GPM | 1 1/4" | 1" | Open Dripproof | €1,194.40 | |
 |
2ZWZ7 | 1/2 hp | 32 GPM | 208-230/460V AC | 3 | 39 GPM | 1 1/4" | 1" | Open Dripproof | €1,124.39 | |
|
2ZWZ8 | 3/4 hp | 42 GPM | 115/230V AC | 1 | 49 GPM | 1 1/4" | 1" | Open Dripproof | €1,202.64 | |
|
2ZWZ9 | 3/4 hp | 42 GPM | 208-230/460V AC | 3 | 49 GPM | 1 1/4" | 1" | Open Dripproof | €1,173.57 | |
|
2ZXA3 | 1 1/2 hp | 78 GPM | 115/230V AC | 1 | 90 GPM | 1 1/2" | 1" | Open Dripproof | €1,568.11 | |
|
2ZXA4 | 1 1/2 hp | 78 GPM | 208-230/460V AC | 3 | 90 GPM | 1 1/2" | 1 1/4" | Open Dripproof | €1,482.25 | |
 |
2ZXA5 | 2 hp | 78 GPM | 115/230V AC | 1 | 90 GPM | 1 1/2" | 1 1/4" | Totally Enclosed Fan Cooled | €2,274.53 |
