DAYTON 2ZXA5 Centrifugal Pump 2 Hp 1 Ph 115/230v | AC4HPY

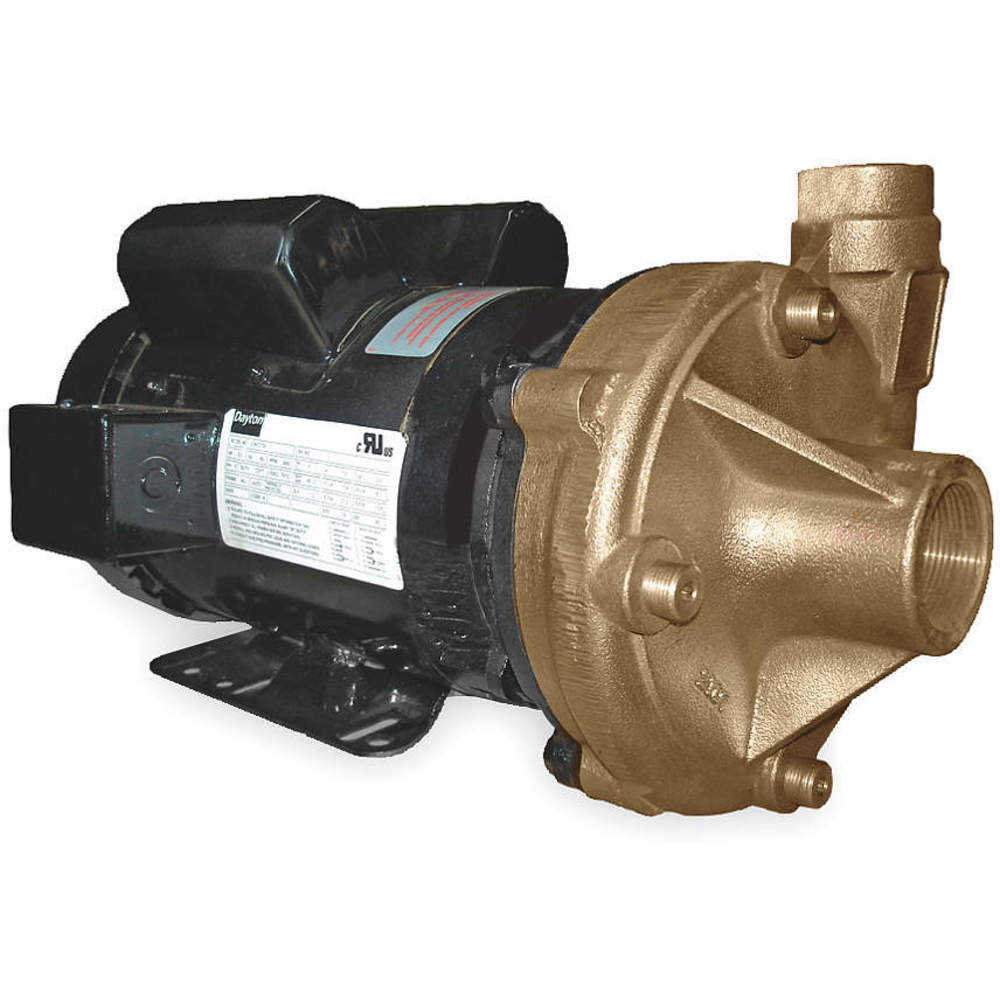

DAYTON 2ZXA5 Centrifugal Pump 2 Hp 1 Ph 115/230v

Item: AC4HPYModel: 2ZXA5
Check Availability
In Stock

Get it by Tuesday, Jun 30

€2,140.73
5.00% off
€2,033.69 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Centrifugal Pump
Amps 16.6/8.3A
Bearing Type Ball
Best Efficiency Flow 54 GPM
Best Efficiency Flow Range @ Head 40 to 78 GPM @ 80 to 40 ft.
Best Efficiency Flow Rate @ Head 54 GPM @ 70 ft.
Best Efficiency Head 70 ft.
Compatible Discharge Pipe Size 1 1/4"
Compatible Intake Pipe Size 1 1/2"
Compatible With Media Type Non Flammable Liquids
Connection Type NPT
Discharge Type NPT
Drain Plug Easily Accessible
Duty Continuous
Duty Cycle Continuous
Features Continuous High Pressure Circulation
Flow Rate @ 120 Ft Of Head (max.) Not Applicable
Flow Rate @ 140 Ft Of Head (max.) Not Applicable
Flow Rate @ 160 Ft Of Head (max.) Not Applicable
Flow Rate @ 180 Ft Of Head (max.) Not Applicable
Flow Rate @ 200 Ft Of Head (max.) Not Applicable
Flow Rate @ 220 Ft Of Head (max.) Not Applicable
Flow Rate @ 240 Ft Of Head (max.) Not Applicable
Flow Rate @ 260 Ft Of Head (max.) Not Applicable
Flow Rate @ 280 Ft Of Head (max.) Not Applicable
Flow Rate @ 300 Ft Of Head (max.) Not Applicable
For Media Type Non-Flammable Liquids
For Use With Potable Systems No
Frame 56J
Frequency 60 Hz
Gpm Of Water @ 90 Ft. Of Head 32
Grade Grade 316
Height 8.9"
Housing Material Bronze
Hp 2 hp
Hp-pumps 2 hp
Impeller Design Closed
Impeller Material Stainless Steel
Impeller Type Closed
Included Manual
Inlet Pressure 200 psi
Length 17"
Max. Case Pressure 200 psi
Max. Feet Of Head 110 ft.
Max. Flow Rate @ 1 Ft Of Head Not Applicable
Max. Flow Rate @ 10 Ft Of Head 94 GPM
Max. Flow Rate @ 10 Ft. 94 GPM
Max. Flow Rate @ 100 Ft Of Head Not Applicable
Max. Flow Rate @ 140 Feet Of Head 92 GPM
Max. Flow Rate @ 140 Ft. 92 GPM
Max. Flow Rate @ 15 Ft Of Head 92 GPM
Max. Flow Rate @ 15 Ft. 92 GPM
Max. Flow Rate @ 20 Ft Of Head 90 GPM
Max. Flow Rate @ 20 Ft. 90 GPM
Max. Flow Rate @ 25 Ft. 87 GPM
Max. Flow Rate @ 30 Ft Of Head 85 GPM
Max. Flow Rate @ 30 Ft. 85 GPM
Max. Flow Rate @ 40 Ft Of Head 78 GPM
Max. Flow Rate @ 40 Ft. 78 GPM
Max. Flow Rate @ 5 Ft Of Head Not Applicable
Max. Flow Rate @ 50 Ft Of Head 71 GPM
Max. Flow Rate @ 50 Ft. 71 GPM
Max. Flow Rate @ 60 Ft Of Head 62 GPM
Max. Flow Rate @ 60 Ft. 62 GPM
Max. Flow Rate @ 70 Ft Of Head 54 GPM
Max. Flow Rate @ 70 Ft. 54 GPM
Max. Flow Rate @ 80 Ft Of Head 43 GPM
Max. Flow Rate @ 80 Ft. 43 GPM
Max. Flow Rate @ 90 Ft Of Head 32 GPM
Max. Flow Rate @ 90 Ft. 32 GPM
Max. Flow Rate @ Head 94 GPM @ 10 ft.
Max. Head 110 ft.
Max. Liquid Temp. 200°F
Max. Operating Pressure 47 psi
Max. Shut Off Pressure 47 psi
Max. Solid Dia. 0.31" , 5/16"
Max. Specific Gravity 1
Max. Speed @ 5° 3450 RPM
Media Type Non Flammable Liquids
Min. Feet Of Head 10 ft.
Min. Flow Rate @ Head 32 GPM @ 90 ft.
Min. Head 10 ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Designation 56J
Motor Type Totally Enclosed Fan Cooled
Overall Height 8.9"
Overall Length 17"
Overall Width 8 4/5"
Phase 1
Port Rotation Four Position
Pump Housing Material Bronze
Screw Material Stainless Steel
Seal Application Long Life When Not Run Dry Or Pumping Abrasives
Seal Material Viton
Seal Type Mechanical
Service Factor 1.2
Shaft Material Stainless Steel
Shut Off Pressure 47 psi
Specific Gravity 1
Speed 3450 RPM
Type High Head
Voltage 115/230V AC
Volute Material Bronze
Wetted Material Grade Grade 316 , Stainless Steel, Brass, Bronze, Carbon, Ceramic, Viton
Width 8 4/5"

Shipping Info:

Ship weight (kg) 30.4
Ship height (cm)22.61
Ship length (cm)43.18
Ship width (cm)22.35
HS code8413702005
Country of OriginIN

Product Variants

ProductModelHpPhaseShut Off PressureMotor Enclosure DesignVoltageCompatible Intake Pipe SizeCompatible Discharge Pipe SizeHousing MaterialPrice
DAYTON 12A075 Centrifugal Pump 7.5 Hp Maxium Temperature 180f | AA3ZCH 12A0757 1/2 hp365 psiTotally Enclosed Fan Cooled208-230/460V AC2 1/2"2"Cast Iron€2,738.18
DAYTON 12A076 Centrifugal Pump 7.5 Hp Maxium Temperature 200f | AA3ZCJ 12A0767 1/2 hp365 psiTotally Enclosed Fan Cooled208-230/460V AC2 1/2"2"Stainless Steel€3,947.19
DAYTON 12A079 Centrifugal Pump 10 Hp Maxium Temperature 180f | AA3ZCM 12A07910 hp382 psiTotally Enclosed Fan Cooled208-230/460V AC2 1/2"2"Cast Iron€3,782.07
DAYTON 12A080 Centrifugal Pump 10 Hp Maxium Temperature 200f | AA3ZCN 12A08010 hp382 psiTotally Enclosed Fan Cooled208-230/460V AC2 1/2"2"Stainless Steel€4,487.14
DAYTON 2ZWN9 Pump Centrifugal 1/3 Hp 1 Ph 115/230v | AC4HLZ 2ZWN91/3 hp119 psiOpen Dripproof115/230V AC1"3/4"Cast Iron€616.61
DAYTON 2ZWP1 Pump Centrifugal 1/2 Hp 1 Ph 115/230v | AC4HMA 2ZWP11/2 hp119 psiOpen Dripproof115/230V AC1 1/4"1"Cast Iron€643.00
DAYTON 2ZWP2 Centrifugal Pump 1/2 Hp 3-phase 208-230/460 | AC4HMB 2ZWP21/2 hp319 psiOpen Dripproof208-230/460V AC1 1/4"1"Cast Iron€711.00
