DAYTON 2ZWT7 Pump Centrifugal 3 Hp 3-phase 230/460v | AC4HNB

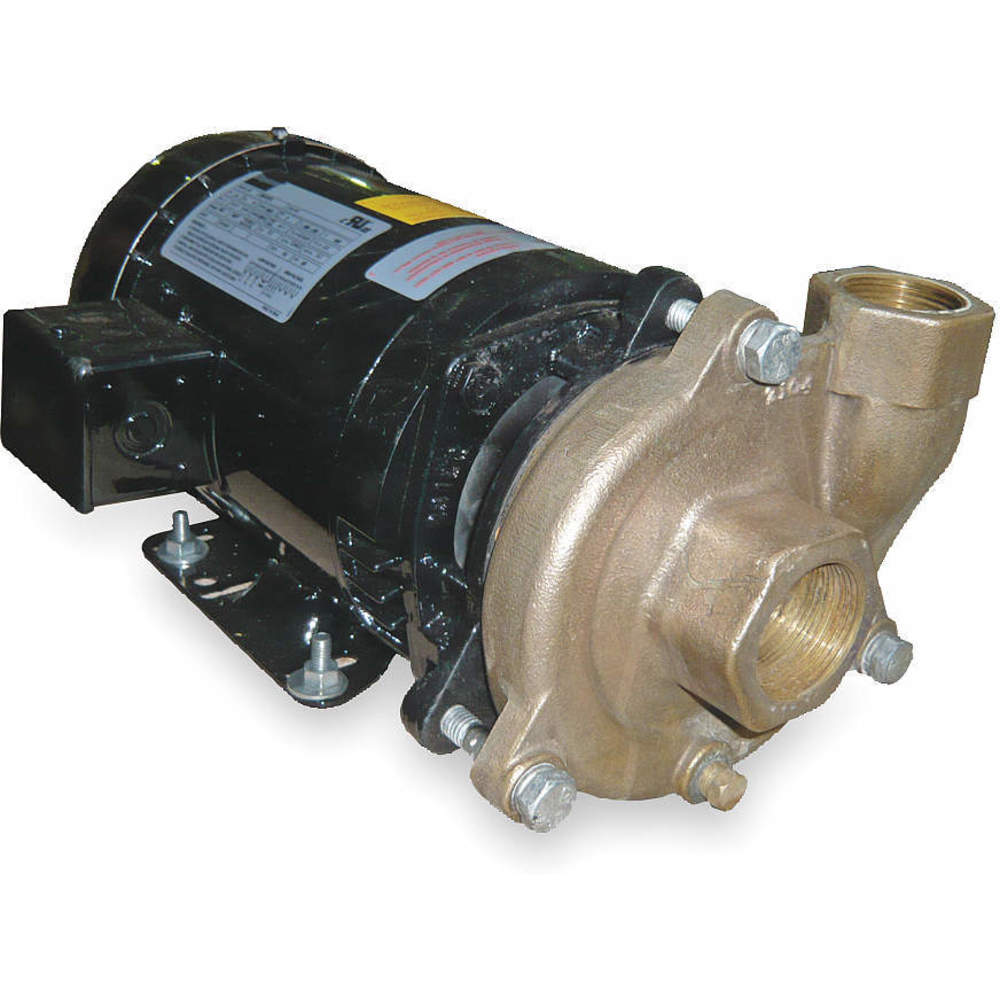

DAYTON 2ZWT7 Pump Centrifugal 3 Hp 3-phase 230/460v

Item: AC4HNBModel: 2ZWT7
Check Availability
In Stock

Get it by Friday, Feb 13

€2,394.26
10.00% off
€2,154.83 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Centrifugal Pump
Amps 7.6/3.8A
Bearing Type Ball
Best Efficiency Flow 95 GPM
Best Efficiency Flow Range @ Head 60 to 144 GPM @ 75 to 35 ft.
Best Efficiency Flow Rate @ Head 119 GPM @ 57 ft.
Best Efficiency Head 57 ft.
Compatible Discharge Pipe Size 1 1/2"
Compatible Intake Pipe Size 2"
Compatible With Media Type Non Flammable Liquids
Connection Type NPT
Discharge Type NPT
Drain Plug Side And Bottom
Duty Continuous
Duty Cycle Continuous
Features Continuous High Pressure Circulation
Feet Of Head (minimum) 10 ft.
Flow Rate @ 1 Ft Of Head (maximum) Not Applicable
Flow Rate @ 10 Ft Of Head (maximum) 170 GPM
Flow Rate @ 100 Ft Of Head (maximum) Not Applicable
Flow Rate @ 120 Ft Of Head (maximum) Not Applicable
Flow Rate @ 140 Ft Of Head (maximum) Not Applicable
Flow Rate @ 15 Ft Of Head (maximum) 166 GPM
Flow Rate @ 160 Ft Of Head (maximum) Not Applicable
Flow Rate @ 180 Ft Of Head (maximum) Not Applicable
Flow Rate @ 20 Ft Of Head (maximum) 162 GPM
Flow Rate @ 200 Ft Of Head (maximum) Not Applicable
Flow Rate @ 220 Ft Of Head (maximum) Not Applicable
Flow Rate @ 240 Ft Of Head (maximum) Not Applicable
Flow Rate @ 260 Ft Of Head (maximum) Not Applicable
Flow Rate @ 280 Ft Of Head (maximum) Not Applicable
Flow Rate @ 30 Ft Of Head (maximum) 146 GPM
Flow Rate @ 300 Ft Of Head (maximum) Not Applicable
Flow Rate @ 40 Ft Of Head (maximum) 130 GPM
Flow Rate @ 5 Ft Of Head (maximum) Not Applicable
Flow Rate @ 50 Ft Of Head (maximum) 110 GPM
Flow Rate @ 60 Ft Of Head (maximum) 82 GPM
Flow Rate @ 70 Ft Of Head (maximum) 35 GPM
Flow Rate @ 80 Ft Of Head (maximum) Not Applicable
Flow Rate @ 90 Ft Of Head (maximum) Not Applicable
For Media Type Non-Flammable Liquids
For Use With Potable Systems No
Frame 56J
Frequency 60 Hz
Grade Grade 304
Height 7"
Housing Material Brass, Bronze
Hp 3 hp
Hp - Pumps 3 hp
Impeller Material Brass, Bronze
Impeller Type Semi Open
Includes Manual
Inlet Pressure 200 psi
Length 17 1/2"
Max. Case Pressure 200 psi
Max. Feet Of Head 74 ft.
Max. Flow Rate 170 GPM
Max. Flow Rate @ 10 Ft. 170 GPM
Max. Flow Rate @ 140 Ft. 166 GPM
Max. Flow Rate @ 15 Ft. 166 GPM
Max. Flow Rate @ 20 Ft. 162 GPM
Max. Flow Rate @ 25 Ft. 154 GPM
Max. Flow Rate @ 30 Ft. 146 GPM
Max. Flow Rate @ 40 Ft. 130 GPM
Max. Flow Rate @ 50 Ft. 110 GPM
Max. Flow Rate @ 60 Ft. 82 GPM
Max. Flow Rate @ 70 Ft. 35 GPM
Max. Flow Rate @ Head 170 GPM @ 10 ft.
Max. Head 74 ft.
Max. Liquid Temp. 200°F
Max. Operating Pressure 32 psi
Max. Solid Dia. 1/2"
Max. Specific Gravity 1
Maximum Flow Rate @ 140 Feet Of Head 166 GPM
Media Type Non Flammable Liquids
Min. Flow Rate 35 GPM
Min. Flow Rate @ Head 35 GPM @ 70 ft.
Min. Head 10 ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Designation 56J
Overall Height 7"
Overall Length 17 1/2"
Overall Width 8"
Phase 3
Port Rotation Four Position
Pump Housing Material Bronze
Rpm 3450 RPM
Rpm (maximum) 3450 RPM
Screw Finish Zinc Plated
Screw Material Steel
Seal Application Long Life When Not Run Dry Or Pumping Abrasives
Seal Material Buna N
Seal Type Mechanical
Service Factor 1.15
Shaft Material Stainless Steel
Shaft Size 5/8"
Shut Off Pressure 32 psi
Shut Off Pressure (maximum) 32 psi
Solid Diameter (maximum) 1/2"
Specific Gravity 1
Specific Gravity (maximum) 1
Type Centrifugal
Voltage 230/460V AC
Volute Material Brass, Bronze
Wetted Material Brass, Bronze, Buna N, Carbon Ceramic, Stainless Steel
Wetted Materials Brass, Bronze, Buna N, Carbon, Ceramic, Stainless Steel
Width 8"

Shipping Info:

Ship weight (kg) 33.75
Ship height (cm)17.78
Ship length (cm)44.45
Ship width (cm)20.32
HS code8413702005
Country of OriginIN

Product Variants

ProductModelHpPhaseShut Off PressureMotor Enclosure DesignVoltageHousing MaterialCompatible Intake Pipe SizeCompatible Discharge Pipe SizePrice
DAYTON 12A075 Centrifugal Pump 7.5 Hp Maxium Temperature 180f | AA3ZCH 12A0757 1/2 hp365 psiTotally Enclosed Fan Cooled208-230/460V ACCast Iron2 1/2"2"€2,706.50
DAYTON 12A076 Centrifugal Pump 7.5 Hp Maxium Temperature 200f | AA3ZCJ 12A0767 1/2 hp365 psiTotally Enclosed Fan Cooled208-230/460V ACStainless Steel2 1/2"2"€3,919.52
DAYTON 12A079 Centrifugal Pump 10 Hp Maxium Temperature 180f | AA3ZCM 12A07910 hp382 psiTotally Enclosed Fan Cooled208-230/460V ACCast Iron2 1/2"2"€3,620.22
DAYTON 12A080 Centrifugal Pump 10 Hp Maxium Temperature 200f | AA3ZCN 12A08010 hp382 psiTotally Enclosed Fan Cooled208-230/460V ACStainless Steel2 1/2"2"€4,295.12
DAYTON 2ZWN9 Pump Centrifugal 1/3 Hp 1 Ph 115/230v | AC4HLZ 2ZWN91/3 hp119 psiOpen Dripproof115/230V ACCast Iron1"3/4"€569.70
DAYTON 2ZWP1 Pump Centrifugal 1/2 Hp 1 Ph 115/230v | AC4HMA 2ZWP11/2 hp119 psiOpen Dripproof115/230V ACCast Iron1 1/4"1"€594.07
DAYTON 2ZWP2 Centrifugal Pump 1/2 Hp 3-phase 208-230/460 | AC4HMB 2ZWP21/2 hp319 psiOpen Dripproof208-230/460V ACCast Iron1 1/4"1"€634.81
