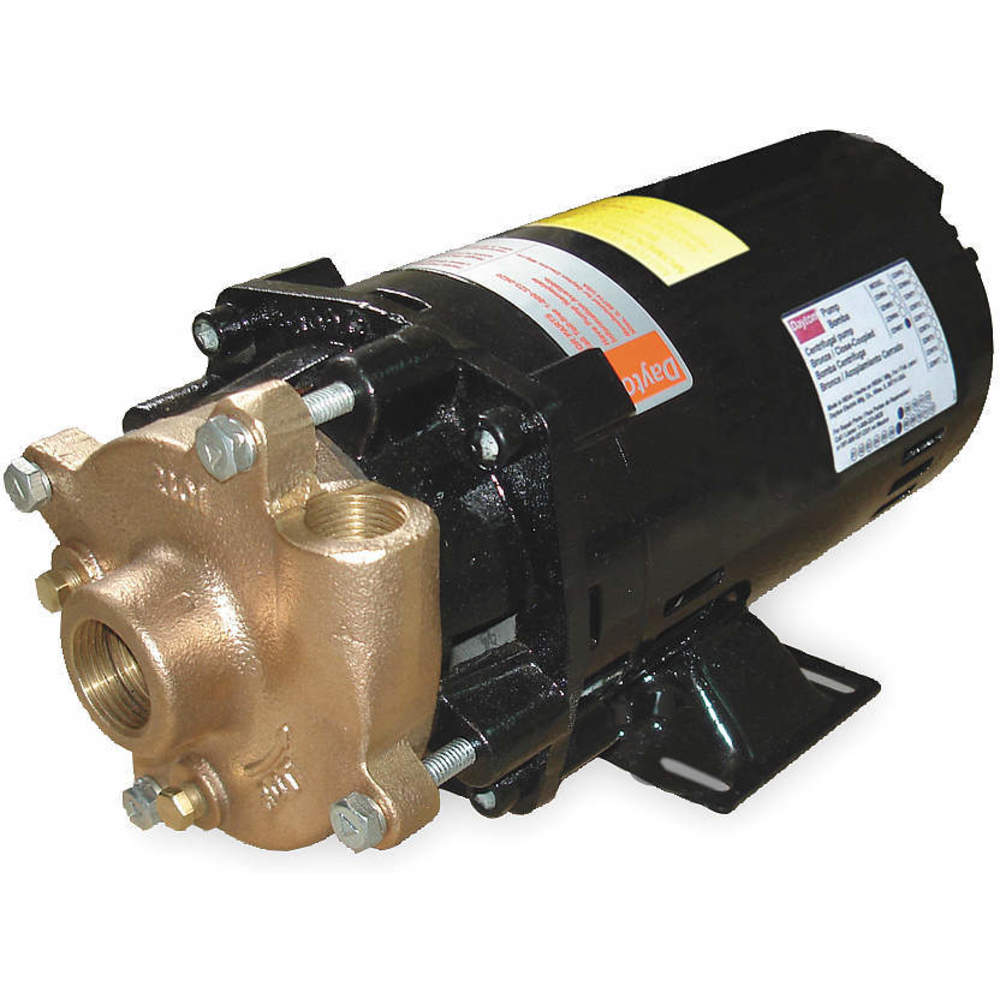

DAYTON 2ZWT3 Centrifugal Pump 1.5 Hp 3-phase 208-230/460 | AC4HMX

DAYTON 2ZWT3 Centrifugal Pump 1.5 Hp 3-phase 208-230/460

Item: AC4HMXModel: 2ZWT3
Check Availability
In Stock

Get it by Friday, Feb 13

€1,680.07
10.00% off
€1,512.07 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Centrifugal Pump
Amps 2/3.9-4.4A
Bearing Type Ball
Best Efficiency Flow 72 GPM
Best Efficiency Flow Range @ Head 55 to 99 GPM @ 55 to 25 ft.
Best Efficiency Flow Rate @ Head 72 GPM @ 44 ft.
Best Efficiency Head 44 ft.
Compatible Discharge Pipe Size 1 1/4"
Compatible Intake Pipe Size 1 1/2"
Compatible With Media Type Non Flammable Liquids
Connection Type NPT
Discharge Type NPT
Drain Plug Side And Bottom
Duty Continuous
Duty Cycle Continuous
Features Continuous High Pressure Circulation
Feet Of Head (minimum) 10 ft.
Flow Rate @ 1 Ft Of Head (maximum) Not Applicable
Flow Rate @ 10 Ft Of Head (maximum) 115 GPM
Flow Rate @ 100 Ft Of Head (maximum) Not Applicable
Flow Rate @ 120 Ft Of Head (maximum) Not Applicable
Flow Rate @ 140 Ft Of Head (maximum) Not Applicable
Flow Rate @ 15 Ft Of Head (maximum) 109 GPM
Flow Rate @ 160 Ft Of Head (maximum) Not Applicable
Flow Rate @ 180 Ft Of Head (maximum) Not Applicable
Flow Rate @ 20 Ft Of Head (maximum) 104 GPM
Flow Rate @ 200 Ft Of Head (maximum) Not Applicable
Flow Rate @ 220 Ft Of Head (maximum) Not Applicable
Flow Rate @ 240 Ft Of Head (maximum) Not Applicable
Flow Rate @ 260 Ft Of Head (maximum) Not Applicable
Flow Rate @ 280 Ft Of Head (maximum) Not Applicable
Flow Rate @ 30 Ft Of Head (maximum) 94 GPM
Flow Rate @ 300 Ft Of Head (maximum) Not Applicable
Flow Rate @ 40 Ft Of Head (maximum) 81 GPM
Flow Rate @ 5 Ft Of Head (maximum) Not Applicable
Flow Rate @ 50 Ft Of Head (maximum) 64 GPM
Flow Rate @ 60 Ft Of Head (maximum) 40 GPM
Flow Rate @ 70 Ft Of Head (maximum) Not Applicable
Flow Rate @ 80 Ft Of Head (maximum) Not Applicable
Flow Rate @ 90 Ft Of Head (maximum) Not Applicable
For Media Type Non-Flammable Liquids
For Use With Potable Systems No
Frame 56J
Frequency 60 Hz
Grade Grade 304
Height 6"
Housing Material Brass, Bronze
Hp 1 1/2 hp
Hp - Pumps 1 1/2 hp
Impeller Material Brass, Bronze
Impeller Type Semi Open
Includes Manual
Inlet Pressure 200 psi
Length 14 2/5"
Max. Case Pressure 200 psi
Max. Feet Of Head 67 ft.
Max. Flow Rate 115 GPM
Max. Flow Rate @ 10 Ft. 115 GPM
Max. Flow Rate @ 140 Ft. 109 GPM
Max. Flow Rate @ 15 Ft. 109 GPM
Max. Flow Rate @ 20 Ft. 104 GPM
Max. Flow Rate @ 25 Ft. 99 GPM
Max. Flow Rate @ 30 Ft. 94 GPM
Max. Flow Rate @ 40 Ft. 81 GPM
Max. Flow Rate @ 50 Ft. 64 GPM
Max. Flow Rate @ 60 Ft. 40 GPM
Max. Flow Rate @ Head 115 GPM @ 10 ft.
Max. Head 67 ft.
Max. Liquid Temp. 200°F
Max. Operating Pressure 29 psi
Max. Solid Dia. 1/2"
Max. Specific Gravity 1
Maximum Flow Rate @ 140 Feet Of Head 109 GPM
Media Type Non Flammable Liquids
Min. Flow Rate 40 GPM
Min. Flow Rate @ Head 40 GPM @ 60 ft.
Min. Head 10 ft.
Motor Enclosure - Pumps Open Dripproof
Motor Enclosure Design Open Dripproof
Motor Frame Designation 56J
Nameplate Voltage 230/460V AC
Overall Height 6"
Overall Length 14 2/5"
Overall Width 7.1"
Phase 3
Pump Housing Material Bronze
Rpm 3450 RPM
Rpm (maximum) 3450 RPM
Screw Finish Zinc Plated
Screw Material Steel
Seal Application Long Life When Not Run Dry Or Pumping Abrasives
Seal Material Buna N
Seal Type Mechanical
Service Factor 1.3
Shaft Material Stainless Steel
Shaft Size 5/8"
Shut Off Pressure 29 psi
Shut Off Pressure (maximum) 29 psi
Solid Diameter (maximum) 1/2"
Specific Gravity 1
Specific Gravity (maximum) 1
Type Centrifugal
Voltage 208-230/460V AC
Volute Material Brass, Bronze
Wetted Material Brass, Bronze, Buna N, Carbon Ceramic, Stainless Steel
Wetted Materials Brass, Bronze, Buna N, Carbon, Ceramic, Stainless Steel
Width 7.1"

Shipping Info:

Ship weight (kg) 22.95
Ship height (cm)15.24
Ship length (cm)36.58
Ship width (cm)18.03
HS code8413702005
Country of OriginIN

Product Variants

ProductModelHpPhaseShut Off PressureMotor Enclosure DesignVoltageHousing MaterialCompatible Intake Pipe SizeCompatible Discharge Pipe SizePrice
DAYTON 12A075 Centrifugal Pump 7.5 Hp Maxium Temperature 180f | AA3ZCH 12A0757 1/2 hp365 psiTotally Enclosed Fan Cooled208-230/460V ACCast Iron2 1/2"2"€2,706.50
DAYTON 12A076 Centrifugal Pump 7.5 Hp Maxium Temperature 200f | AA3ZCJ 12A0767 1/2 hp365 psiTotally Enclosed Fan Cooled208-230/460V ACStainless Steel2 1/2"2"€3,919.52
DAYTON 12A079 Centrifugal Pump 10 Hp Maxium Temperature 180f | AA3ZCM 12A07910 hp382 psiTotally Enclosed Fan Cooled208-230/460V ACCast Iron2 1/2"2"€3,620.22
DAYTON 12A080 Centrifugal Pump 10 Hp Maxium Temperature 200f | AA3ZCN 12A08010 hp382 psiTotally Enclosed Fan Cooled208-230/460V ACStainless Steel2 1/2"2"€4,295.12
DAYTON 2ZWN9 Pump Centrifugal 1/3 Hp 1 Ph 115/230v | AC4HLZ 2ZWN91/3 hp119 psiOpen Dripproof115/230V ACCast Iron1"3/4"€569.70
DAYTON 2ZWP1 Pump Centrifugal 1/2 Hp 1 Ph 115/230v | AC4HMA 2ZWP11/2 hp119 psiOpen Dripproof115/230V ACCast Iron1 1/4"1"€594.07
DAYTON 2ZWP2 Centrifugal Pump 1/2 Hp 3-phase 208-230/460 | AC4HMB 2ZWP21/2 hp319 psiOpen Dripproof208-230/460V ACCast Iron1 1/4"1"€634.81
