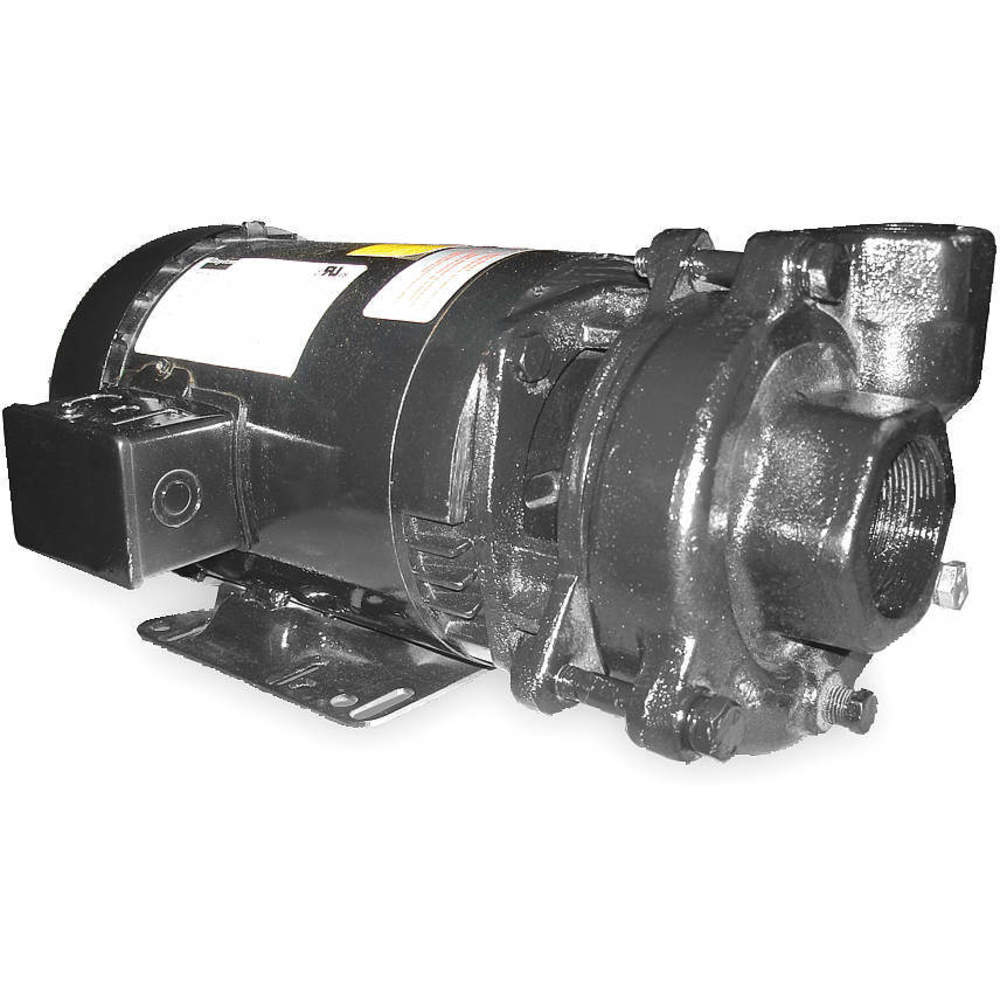

DAYTON 2ZWR3 Pump Centrifugal 3 Hp 3-phase 230/460v
Get it by Tuesday, Dec 23
10.00% off
€3,111.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Centrifugal Pump |
| Amps | 7.6/3.8A |
| Bearing Type | Ball |
| Best Efficiency Flow | 95 GPM |
| Best Efficiency Flow Range @ Head | 60 to 144 GPM @ 75 to 35 ft. |
| Best Efficiency Flow Rate @ Head | 119 GPM @ 57 ft. |
| Best Efficiency Head | 57 ft. |
| Compatible Discharge Pipe Size | 1 1/2" |
| Compatible Intake Pipe Size | 2" |
| Compatible With Media Type | Non Flammable Liquids |
| Connection Type | NPT |
| Discharge Type | NPT |
| Drain Plug | Side And Bottom |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Features | Continuous High Pressure Circulation |
| Feet Of Head (minimum) | 10 ft. |
| Flow Rate @ 1 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 10 Ft Of Head (maximum) | 170 GPM |
| Flow Rate @ 100 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 120 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 140 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 15 Ft Of Head (maximum) | 166 GPM |
| Flow Rate @ 160 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 180 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 20 Ft Of Head (maximum) | 162 GPM |
| Flow Rate @ 200 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 220 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 240 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 260 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 280 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 30 Ft Of Head (maximum) | 146 GPM |
| Flow Rate @ 300 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 40 Ft Of Head (maximum) | 130 GPM |
| Flow Rate @ 5 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 50 Ft Of Head (maximum) | 110 GPM |
| Flow Rate @ 60 Ft Of Head (maximum) | 82 GPM |
| Flow Rate @ 70 Ft Of Head (maximum) | 35 GPM |
| Flow Rate @ 80 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 90 Ft Of Head (maximum) | Not Applicable |
| For Media Type | Non-Flammable Liquids |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Grade | Grade 304 |
| Height | 7" |
| Housing Material | Cast Iron |
| Hp | 3 hp |
| Hp - Pumps | 3 hp |
| Impeller Material | Cast Iron |
| Impeller Type | Semi Open |
| Includes | Manual |
| Inlet Pressure | 200 psi |
| Length | 17 1/2" |
| Max. Case Pressure | 200 psi |
| Max. Feet Of Head | 74 ft. |
| Max. Flow Rate | 170 GPM |
| Max. Flow Rate @ 10 Ft. | 170 GPM |
| Max. Flow Rate @ 140 Ft. | 166 GPM |
| Max. Flow Rate @ 15 Ft. | 166 GPM |
| Max. Flow Rate @ 20 Ft. | 162 GPM |
| Max. Flow Rate @ 25 Ft. | 154 GPM |
| Max. Flow Rate @ 30 Ft. | 146 GPM |
| Max. Flow Rate @ 40 Ft. | 130 GPM |
| Max. Flow Rate @ 50 Ft. | 110 GPM |
| Max. Flow Rate @ 60 Ft. | 82 GPM |
| Max. Flow Rate @ 70 Ft. | 35 GPM |
| Max. Flow Rate @ Head | 170 GPM @ 10 ft. |
| Max. Head | 74 ft. |
| Max. Liquid Temp. | 200°F |
| Max. Operating Pressure | 32 psi |
| Max. Solid Dia. | 1/2" |
| Max. Specific Gravity | 1 |
| Maximum Flow Rate @ 140 Feet Of Head | 166 GPM |
| Media Type | Non Flammable Liquids |
| Min. Flow Rate | 35 GPM |
| Min. Flow Rate @ Head | 35 GPM @ 70 ft. |
| Min. Head | 10 ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 56J |
| Overall Height | 7" |
| Overall Length | 17 1/2" |
| Overall Width | 8" |
| Phase | 3 |
| Port Rotation | Four Position |
| Pump Housing Material | Cast Iron |
| Rpm | 3450 RPM |
| Rpm (maximum) | 3450 RPM |
| Screw Finish | Zinc Plated |
| Screw Material | Steel |
| Seal Application | Long Life When Not Run Dry Or Pumping Abrasives |
| Seal Material | Buna N |
| Seal Type | Mechanical |
| Service Factor | 1.15 |
| Shaft Material | Stainless Steel |
| Shaft Size | 5/8" |
| Shut Off Pressure | 32 psi |
| Shut Off Pressure (maximum) | 32 psi |
| Solid Diameter (maximum) | 1/2" |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 |
| Type | Centrifugal |
| Voltage | 230/460V AC |
| Volute Material | Cast Iron |
| Wetted Material | Buna N, Carbon, Cast Iron, Ceramic, Stainless Steel |
| Wetted Materials | Buna N, Carbon, Cast Iron, Ceramic, Stainless Steel |
| Width | 8" |
Shipping Info:
| Ship weight (kg) | 29.25 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 44.45 |
| Ship width (cm) | 20.32 |
| HS code | 8413702005 |
| Country of Origin | IN |
Product Variants
| Product | Model | Voltage | Hp | Housing Material | Compatible Discharge Pipe Size | Motor Enclosure Design | Compatible Intake Pipe Size | Phase | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4BF1K1F0 | 230V AC | 7 1/2 hp | Cast Iron | 2 1/2" | Open Dripproof | 3" | 1 | NPT | €5,609.84 | |
|
4BF1J1H0 | 208-230V AC | 5 hp | Cast Iron | 2 1/2" | Open Dripproof | 3" | 1 | NPT | €4,765.24 | |
|
3BF1J1A0 | 230V AC | 5 hp | Cast Iron | 1 1/2" | Open Dripproof | 2" | 1 | NPT | €4,644.83 | |
|
3BF1H1AOH | 115/208-230V AC | 3 hp | Cast Iron | 1 1/2" | Open Dripproof | 2" | 1 | NPT | €3,819.30 | |
 |
2BF12034 | 208-230/460V AC | 2 hp | Cast Iron | 1 1/4" | - | 1 1/2" | 3 | NPT | €2,136.17 | |
|
2BF12012 | 115/230V AC | 2 hp | Cast Iron | 1 1/4" | Open Dripproof | 1 1/2" | 1 | NPT | €2,185.07 | |
 |
1BF22012 | 115/230V AC | 2 hp | Cast Iron | 1" | Totally Enclosed Fan Cooled | 1 1/4" | 1 | NPT | €2,458.66 |
