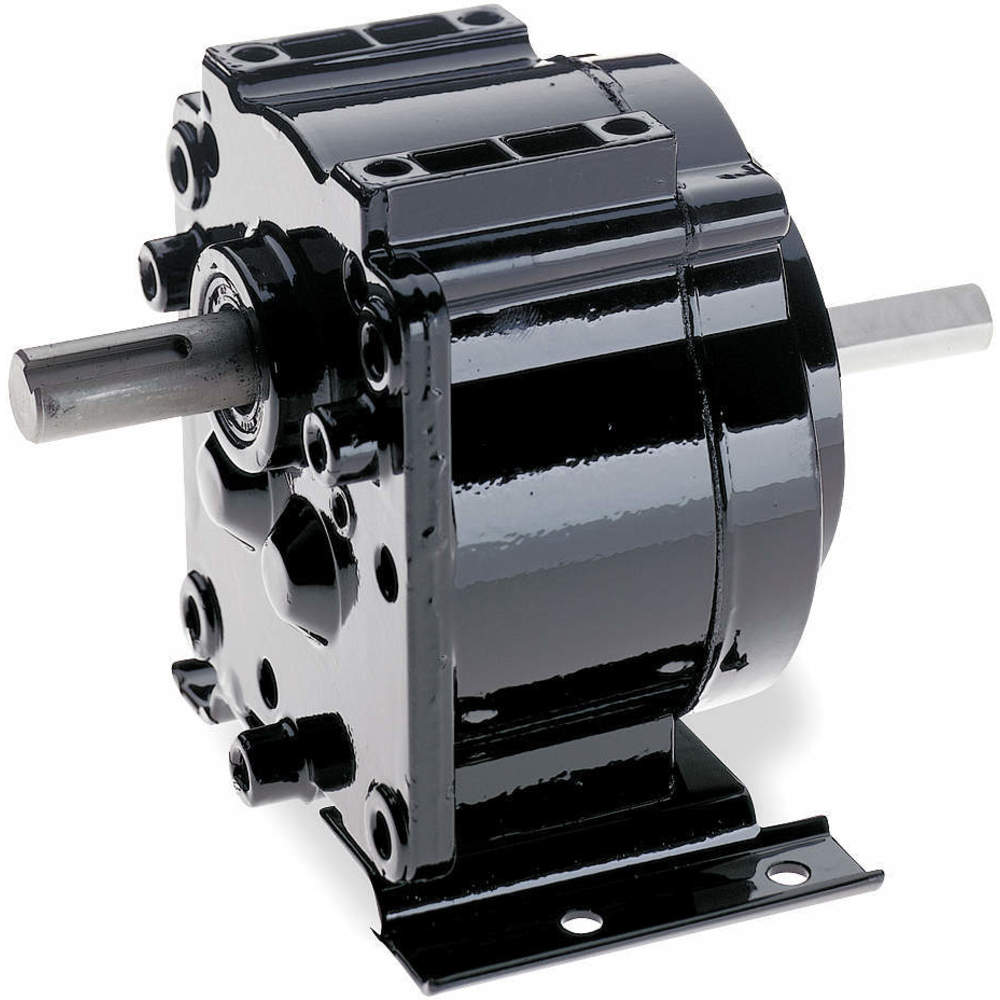

DAYTON 2Z820 Speed Reducer Indirect Drive 52.9 1
Item: AC4DVLModel: 2Z820
7 In Stock
Ships within 2 days via
10.00% off
€558.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Speed Reducer |
| Application | Speed Reducer |
| Base | Removable |
| Base To Center | 3 1/2" |
| Base To Shaft Center | 3.5" |
| Base Type | Removable |
| Bearing Type | Ball |
| Bore Dia. | 5/8" |
| Dimension A | 3 1/2" |
| Dimension B | 2.781" |
| Dimension C | 5 1/8" |
| Dimension D | 3/8" |
| Finish | Gloss Powder Coat |
| Gear Ratio | 52.9:1 |
| Gear Type | Helical First Stage |
| Housing Material | Die Cast Aluminum |
| Housing Material Finish | Gloss Powder Coated |
| Input Connection Type | Indirect Drive |
| Input Rpm | 1725 RPM |
| Lubrication | Heavy Duty Oil |
| Max. Input Hp | 1/10 hp |
| Max. Output Torque | 175 in.-lb. |
| Maximum Input Horsepower | 0.1 hp |
| Maximum Input Speed | 1725 RPM |
| Maximum Output Speed | 33 RPM |
| Maximum Output Torque | 175 lbs.-in. |
| Mounting Orientation | Any Angle |
| Mounting Type | Any Position |
| Nominal Output Rpm | 33 RPM |
| Number Of Stages | 2 |
| Output Shaft Dia. | 5/8" |
| Output Shaft Height | 3 1/2" |
| Output Torque @ 1/10 Hp | 175 in.-lb. |
| Output Torque @ 1/12 Hp | 148 in.-lb. |
| Output Torque @ 1/20 Hp | 88 in.-lb. |
| Output Torque @ 1/40 Hp | 44 lbs.-in. |
| Overhung Load | 175 lbs. |
| Overhung Load Capacity | 175 lbs.-ft. |
| Pinion Material | Hardened Steel |
| Seal Type | Spring Loaded Lip |
| Shaft Orientation | Parallel Inline |
| Speed Reducer Type | Indirect Drive |
Shipping Info:
| Ship weight (kg) | 2.3 |
| Ship height (cm) | 16.26 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 14.22 |
| HS code | 8483405010 |
| Country of Origin | US |
Product Variants
| Model | Gear Type | Gear Ratio | Base To Shaft Center | Max. Input Hp | Nominal Output Rpm | Number Of Stages | Bearing Type | Output Torque @ 1/40 Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2Z819 | Helical First Stage | 118.5:1 | 3.5" | 1/20 hp | 15 RPM | 3 | Ball | 95 lbs.-in. | €631.21 | |
| 2Z821 | Helical First Stage | 23.4:1 | 3.5" | - | 72 RPM | 2 | Ball | 20 lbs.-in. | €652.45 | |
| 4Z498 | Spur | 92:1 | 3.34" | 1/10 hp | 19 RPM | 3 | Needle | 74 lbs.-in. | €663.39 | |
| 4Z499 | Spur | 511 | - | - | 34 RPM | 3 | Needle | 41 lbs.-in. | €643.64 | |
| 4Z503 | Spur | 131 | 3.75" | - | 135 RPM | 2 | Needle | 10 lbs.-in. | €660.29 |
