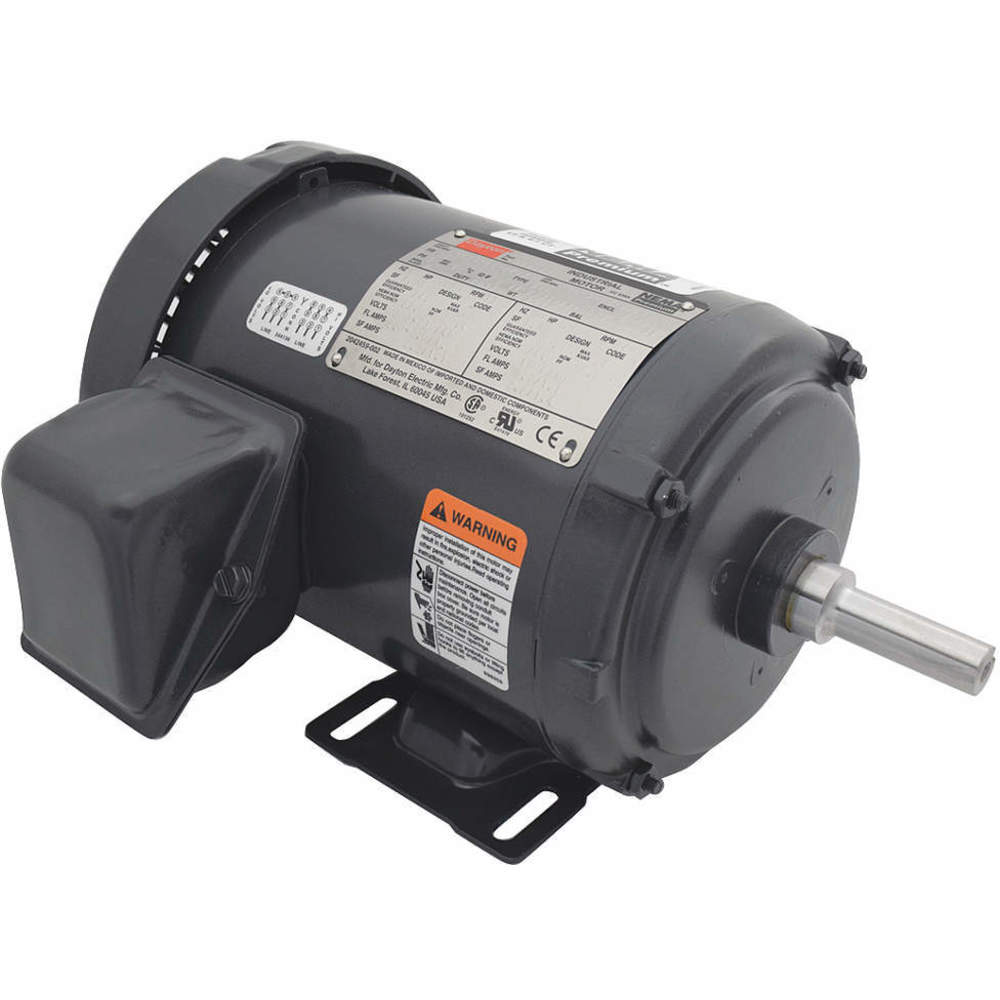

DAYTON 2N926 Motor 3 Phase 1/2hp 1140 208-230/460 Eff 68.0
5.44 / 2.72A
Get it by Monday, Feb 16
10.00% off
€495.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 77% |
| Efficiency | 68% |
| Efficiency Group | High |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 2/1A |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 10 11/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1155 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 77% |
| Overall Length | 12 15/16" |
| Phase | 3 |
| Rpm Range | 1101-1200 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/4" |
| Thermal Protection | None |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 12.42 |
| Ship height (cm) | 27.43 |
| Ship length (cm) | 49.02 |
| Ship width (cm) | 28.7 |
| HS code | 8501514040 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Phase | Hp | Nameplate Rpm | Frequency | Full Load Amps | Service Factor | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10C897 | 208-230/460V AC | 3 | 1/2 hp | 1725 RPM | 50/60 Hz | 1.9/1A | 1 | Three Phase | €470.31 | |
 |
10C899 | 208-230/460V AC | 3 | 3/4 hp | 1725 RPM | 50/60 Hz | 2.8/1.5A | 1 | Three Phase | €472.60 | |
 |
10C901 | 208-230/460V AC | 3 | 1/2 hp | 3450 RPM | 50/60 Hz | 2/1A | 1.15 | Three Phase | €436.30 | |
 |
11W365 | 230/460V AC | 3 | 1/4 hp | 1720 RPM | 60 Hz | 1/0.5A | 1.15 | Three Phase | €438.71 | |
|
11W368 | 230/460V AC | 3 | 1/3 hp | 1140 RPM | 60 Hz | 1.5/0.7A | - | Three Phase | €434.31 | |
 |
11W369 | 230/460V AC | 3 | 1 1/2 hp | 1170 RPM | 60 Hz | 4.4/2.2A | 1.15 | Three Phase | €1,471.34 | |
 |
01518ST3QAP254T-W22 | 460V AC | 3 | 15 hp | 1765 RPM | 50/60 Hz | 18A | 1.25 | Three Phase | €4,875.87 |
