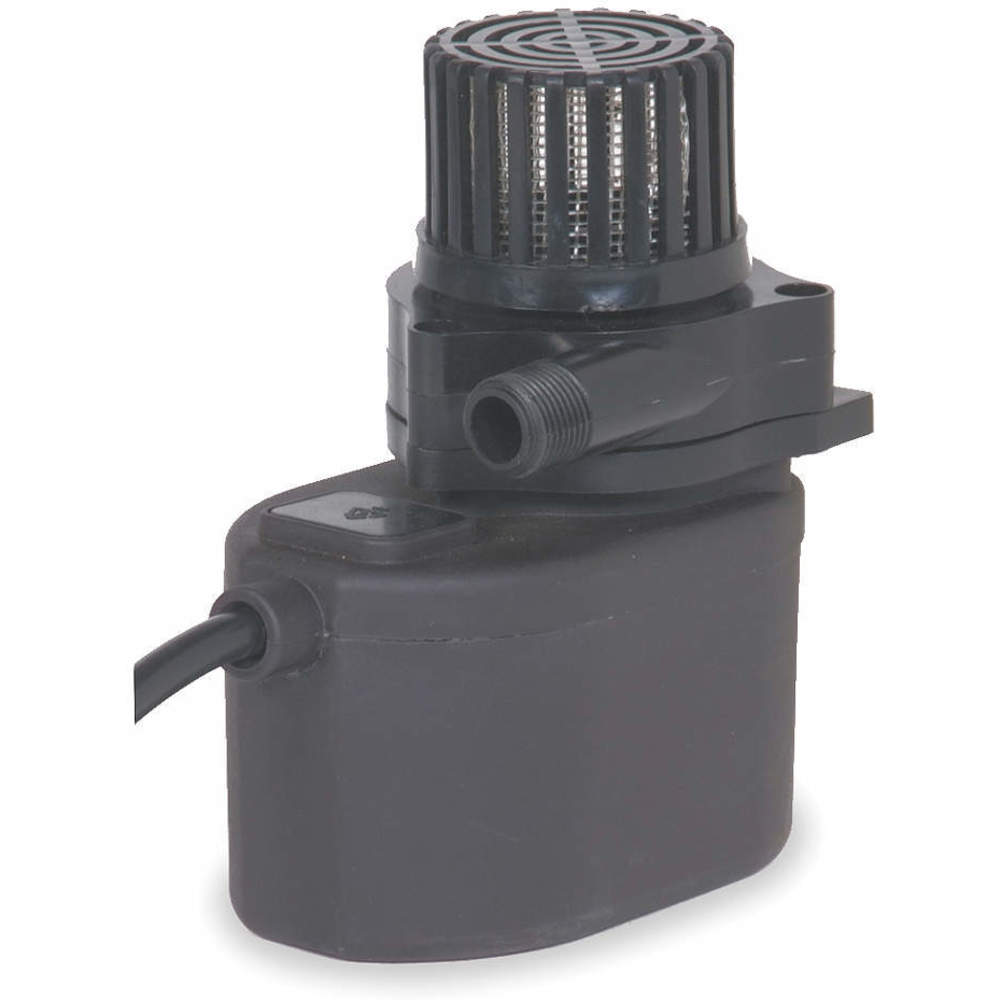

DAYTON 2HNN8 Pump Compact Submersible 1/30 HP
Item: AC2CNBModel: 2HNN8
7 In Stock
Ships within 2 days via
10.00% off
€223.88 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compact Submersible Pump |
| Amps | 0.8A |
| Application | Condensate Removal And Mache Coolant Recirculation, Displays, Evaporative Coolers, Fountains, Vaporizers |
| Compatible Discharge Hose Size | 3/8" |
| Compatible Discharge Pipe Size | 3/8" |
| Compatible Intake Pipe Size | 3/4" |
| Compatible With Media Type | Oil |
| Cord Length | 6 ft. |
| Discharge Type | NPT |
| Display Qty | 1 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Electrical Connection (pumps) | Wire Leads |
| Electrical Connection - Pumps | Wire Leads |
| Electrical Connection Type | Hardwired |
| Features | Thermoplastic Motor Housing Handles Water With A Higher Mineral Content |
| Feet Of Head (minimum) | 1 ft. |
| Flow Rate @ 1 Ft Of Head (maximum) | 375 GPH |
| Flow Rate @ 10 Ft Of Head (maximum) | 244 GPH |
| Flow Rate @ 15 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 5 Ft Of Head (maximum) | 334 GPH |
| For Media Type | Oil |
| Frequency | 60 Hz |
| Full Load Amps | 0.8A |
| Full Load Watts | 75 W |
| Full Load Watts | 75 |
| Gph Of Water @ 1 Ft. Of Head | 375 |
| Gph Of Water @ 10 Ft. Of Head | 244 |
| Gph Of Water @ 5 Ft. Of Head | 334 GPH |
| Height | 5 2/7" |
| Housing Material | Acetal |
| Hp | 1/70 hp |
| Impeller Material | Acetal |
| Inlet Size | 3/4" |
| Inlet Type | Screened |
| Intake And Discharge Size | 3/4", 3/8" |
| Intake Type | Screened |
| Length | 4 3/5" |
| Max. Feet Of Head | 12.5 ft. |
| Max. Flow Rate | 6.2 GPM |
| Max. Flow Rate | 375 GPH |
| Max. Flow Rate @ 1 Ft. | 375 GPH |
| Max. Flow Rate @ 10 Ft. | 244 GPH |
| Max. Flow Rate @ 5 Ft. | 334 GPH |
| Max. Gpm For Water | 6.2 |
| Max. Head | 12.5 ft. |
| Media Type | Oil |
| Min. Head | 1 ft. |
| Motor Sealing | Epoxy Encapsulated |
| Mounting Location | Submersible |
| Nameplate Voltage | 230V AC |
| Outlet Size | 3/8" |
| Outlet Type | NPT |
| Overall Height | 5.3" |
| Overall Length | 4 3/5" |
| Overall Width | 2.9" |
| Overload Protection | Thermal |
| Overload Thermal Protection | Yes |
| Pump Housing Material | Plastic |
| Pump Material | Polycarbonate |
| Pumping Application | Condensate Removal And Mache Coolant Recirculation, Displays, Evaporative Coolers, Fountains, Vaporizers |
| Rpm | 3400 RPM |
| Rpm (maximum) | 3400 RPM |
| Screen Material | Nylon |
| Seal Material | Viton |
| Volute Material | Acetal |
| Width | 2 8/9" |
Shipping Info:
| Ship weight (kg) | 1.76 |
| Ship height (cm) | 13.46 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 7.37 |
| HS code | 8413702004 |
| Country of Origin | CN |
Product Variants
| Product | Model | Hp | Pump Housing Material | Nameplate Voltage | Max. Head | Inlet Size | Intake Type | Cord Length | Max. Flow Rate @ 5 Ft. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
12U595 | 1/100 hp | Zinc Alloy | 115V AC | 7.5 ft. | 1/2" | Screened | 6 ft. | 218 GPH | €190.48 | |
|
12U597 | 1/50 hp | Zinc Alloy | 115V AC | 8.1 ft. | 3/4" | Screened | 6 ft. | 337 GPH | €210.76 | |
 |
12U598 | 1/10 hp | Zinc Alloy | 115V AC | 24.66 ft. | 3/4" | Screened | 6 ft. | 855 GPH | €367.75 | |
 |
502103 | 1/40 hp | Cast Aluminum | 115V AC | 12 ft. | 1/4" | Screened | 6 ft. | 205 GPH | €253.53 | |
 |
504203 | 1/12 hp | Cast Aluminum | 115V AC | 24.5 ft. | 3/4" | NPT | 6 ft. | 745 GPH | €590.23 | |
 |
503103 | 1/15 hp | Cast Aluminum | 115V AC | 17.3 ft. | 1/2" | NPT | 6 ft. | 337 GPH | €409.28 | |
 |
502203 | 1/40 hp | Cast Aluminum | 115V AC | 12 ft. | 3/8" | NPT | 6 ft. | 205 GPH | €270.92 |
