DAYTON 12U595 Pump Submersible 1/100HP
Item: AA4MHKModel: 12U595
7 In Stock
Ships within 2 days via
10.00% off
€171.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compact Submersible Pump |
| Amps | 1.4A |
| Application | Condensate Removal And Mache Coolant Recirculation, Displays, Evaporative Coolers, Fountains, Vaporizers |
| Compatible Discharge Hose Size | 1/4" |
| Compatible Discharge Pipe Size | 1/4" |
| Compatible Intake Pipe Size | 1/2" |
| Compatible With Media Type | Oil |
| Cord Length | 6 ft. |
| Discharge Type | NPT |
| Display Qty | 1 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Electrical Connection Type | Plug In |
| Equivalent Psi | 3.2 |
| Features | Oil Filled |
| Flow Rate @ 1 Ft Of Head (maximum) | 301 GPH |
| Flow Rate @ 10 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 15 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 5 Ft Of Head (maximum) | 218 GPH |
| For Media Type | Oil |
| Frequency | 60 Hz |
| Full Load Amps | 1.4A |
| Full Load Watts | 85 |
| Full Load Watts | 85 W |
| Gph Of Water @ 1 Ft. Of Head | 301 |
| Gph Of Water @ 5 Ft. Of Head | 218 GPH |
| Grade | Grade 56 |
| Housing Material | Zinc Alloy |
| Hp | 1/100 hp |
| Impeller Material | Polyamide Fiber |
| Includes | Filter, Strainer |
| Inlet Size | 1/2" |
| Inlet Type | Screened |
| Intake And Discharge Size | 1/2", 1/4" |
| Intake Type | Screened |
| Max. Feet Of Head | 7.5 ft. |
| Max. Flow Rate | 5 GPM |
| Max. Flow Rate @ 1 Ft. | 301 GPH |
| Max. Flow Rate @ 5 Ft. | 218 GPH |
| Max. Gpm For Water | 5 |
| Max. Head | 7.5 ft. |
| Max. Operating Pressure | 3.2 psi |
| Media Type | Oil |
| Motor Housing Material | Zinc Alloy |
| Motor Sealing | Oil Filled |
| Motor Type | Shaded Pole |
| Mounting Location | Open Air, Submersible |
| Nameplate Voltage | 115V AC |
| Outlet Rotation | Yes |
| Outlet Size | 1/4" |
| Outlet Type | NPT |
| Overall Height | 4 4/5" |
| Overall Length | 4 4/5" |
| Overall Width | 4.9" |
| Overload Protection | Automatic |
| Overload Thermal Protection | Yes |
| Port Rotation | Yes |
| Pump Housing Material | Zinc Alloy |
| Pump Material | Zinc Alloy |
| Pumping Application | Condensate Removal And Mache Coolant Recirculation, Displays, Evaporative Coolers, Fountains, Vaporizers |
| Rpm | 3400 RPM |
| Rpm (maximum) | 3400 RPM |
| Screen Material | Polyamide fiber |
| Seal Material | Nitrile |
| Seal Type | Oil Seal |
| Shaft Material | Stainless Steel |
| Volute Material | Polyoxymethylene |
| Width | 4.9" |
Shipping Info:
| Ship weight (kg) | 2.39 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 12.19 |
| Ship width (cm) | 12.45 |
| HS code | 8413702004 |
| Country of Origin | CN |
Product Variants
| Product | Model | Hp | Pump Housing Material | Nameplate Voltage | Max. Head | Inlet Size | Intake Type | Cord Length | Max. Flow Rate @ 5 Ft. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
12U597 | 1/50 hp | Zinc Alloy | 115V AC | 8.1 ft. | 3/4" | Screened | 6 ft. | 337 GPH | €210.76 | |
 |
12U598 | 1/10 hp | Zinc Alloy | 115V AC | 24.66 ft. | 3/4" | Screened | 6 ft. | 855 GPH | €367.75 | |
 |
502103 | 1/40 hp | Cast Aluminum | 115V AC | 12 ft. | 1/4" | Screened | 6 ft. | 205 GPH | €253.53 | |
 |
504203 | 1/12 hp | Cast Aluminum | 115V AC | 24.5 ft. | 3/4" | NPT | 6 ft. | 745 GPH | €590.23 | |
 |
503103 | 1/15 hp | Cast Aluminum | 115V AC | 17.3 ft. | 1/2" | NPT | 6 ft. | 337 GPH | €409.28 | |
 |
502203 | 1/40 hp | Cast Aluminum | 115V AC | 12 ft. | 3/8" | NPT | 6 ft. | 205 GPH | €270.92 | |
 |

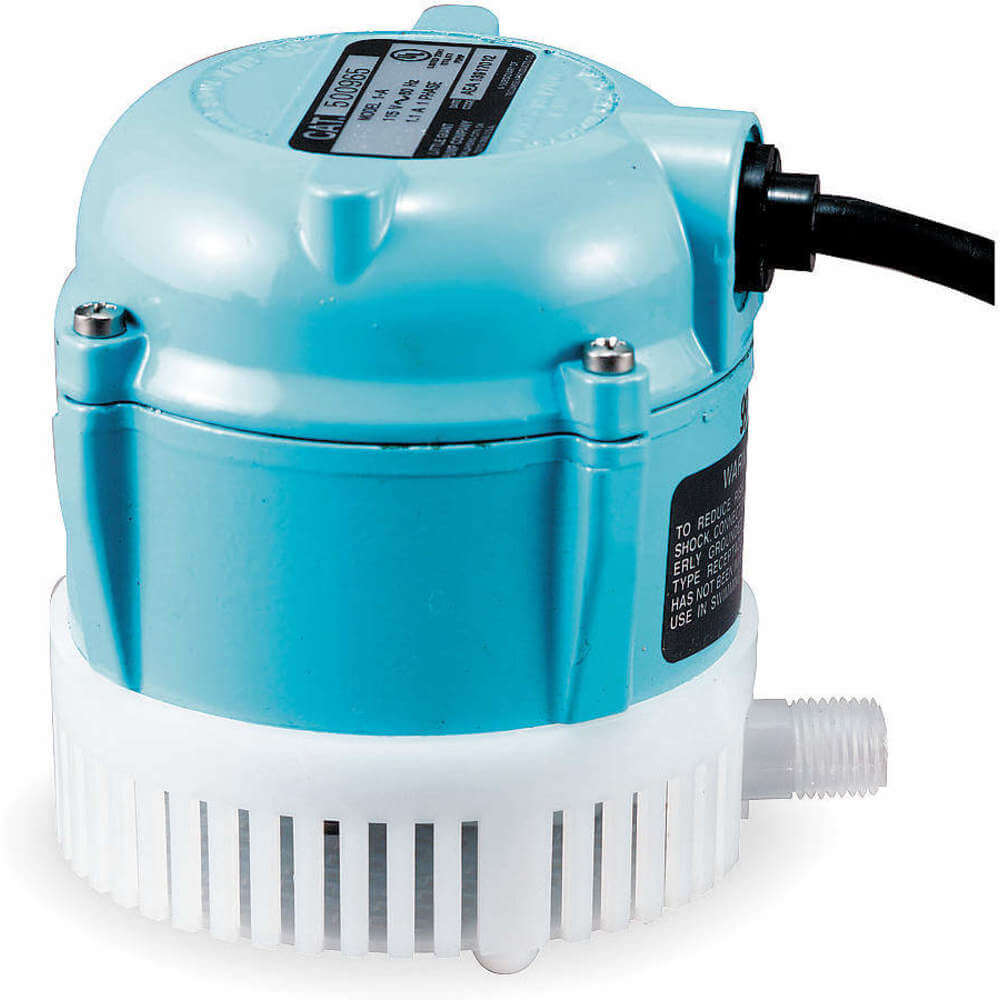

500203 | 1/200 hp | Cast Aluminum | 115V AC | 7 ft. | 1/4" | Screened | 6 ft. | 100 GPH | €194.72 |
