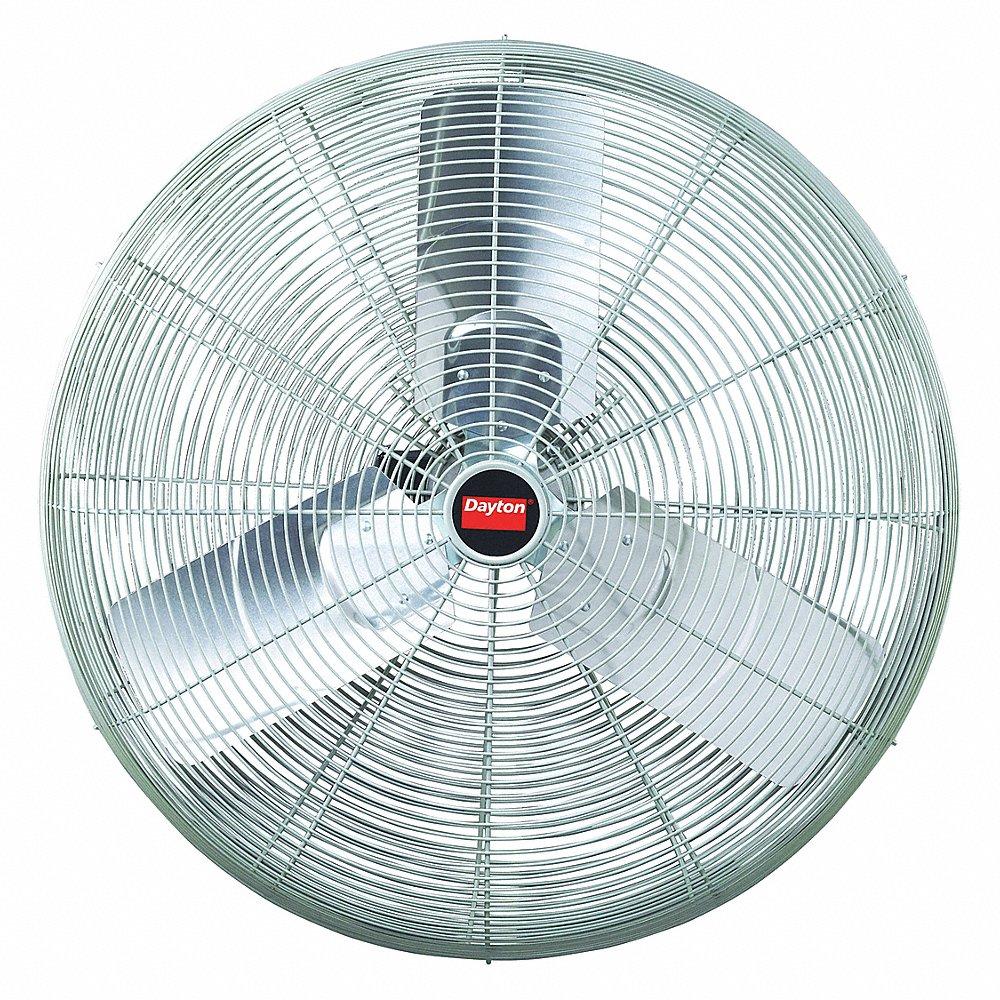

DAYTON 216NT6 Standard Duty Industrial Misting Fan, 30 Inch Blade Dia., 8800/9800 cfm, 115V AC
Get it by Monday, Feb 16
10.00% off
€843.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fan |
| Air Flow | 8800/9800 CFM |
| Air Velocity @ 10 Ft. | 1250/1070 FPM |
| Air Velocity @ 20 Ft. | 760/705 FPM |
| Air Velocity @ 40 Ft. | 300/280 FPM |
| Amps | 3.3/4.2A |
| Assembly Required | No |
| Base Dia. | 27" |
| Bearing Type | Ball |
| Blade Dia. | 30" |
| Blade Material | Aluminum |
| Color | Gray |
| Depth | 13 9/16" |
| Environmental Applications | Industrial |
| Fan Mounting Location | Pedestal |
| Features | Mounting Bolts |
| Guard Material | Steel |
| Height | 33" |
| Height Adjustment | 41 1/2" to 59" |
| Hz | 60 Hz |
| Includes | Air Circulator, Misting Hub Kit, Floor Pedestal |
| Max. Ambient Temp. | 104°F |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Hp | 1/2 hp |
| Motor Insulation | Class B |
| Nema Plug Configuration | 5-15P |
| Number Of Blades | 3 |
| Number Of Speeds | 2 |
| Oscillation | Non Oscillating |
| Phase | 1 |
| Product Type | Standard-Duty Industrial Misting Fan |
| Shaft Dia. | 1/2" |
| Sound Level | 75 dBA |
| Thermal Protection | Automatic Reset |
| Voltage | 115V AC |
| Watts | 370/450 W |
| Wheeled Base | Stationary |
| Width | 33" |
| Wire Guard Finish | Powder Coated |
Shipping Info:
| Ship weight (kg) | 46.46 |
| Ship height (cm) | 83.82 |
| Ship length (cm) | 34.45 |
| Ship width (cm) | 83.82 |
| Country of Origin | CN |
Product Variants
| Product | Model | Height | Depth | Max. Ambient Temp. | Motor Hp | Voltage | Sound Level | Number Of Speeds | Air Flow | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
216NT4 | 23" | 13 1/8" | 104°F | 1/4 hp | 115V AC | 72 dBA | 2 | 3080/4750 CFM | €752.48 | |
 |
216NT5 | 27" | 13 9/16" | 104°F | 1/3 hp | 115V AC | 73 dBA | 2 | 3850/6200 CFM | €870.00 | |
 |
216NV2 | 22 1/2" | 10 1/2" | 105°F | 1/15 hp | 115V AC | 68 dBA | 1 | 2670 CFM | €3,067.21 | |
 |
216NV3 | 33" | 15" | 105°F | 1/4 hp | 115/230V AC | 77 dBA | 1 | 5220 CFM | €3,516.64 | |
 |
7DC93 | 23" | 14 1/4" | 104°F | 1/4 hp | 115V AC | 70 dBA | 2 | 2900/4500 CFM | €581.23 | |
|
7DC95 | 23" | 14 1/4" | 104°F | 1/4 hp | 115V AC | 70 dBA | 2 | 2900/4500 CFM | €659.75 | |
|
7DC97 | 23" | 12 1/4" | 104°F | 1/4 hp | 115V AC | 76 dBA | 2 | 3055/4700 CFM | €566.89 |
