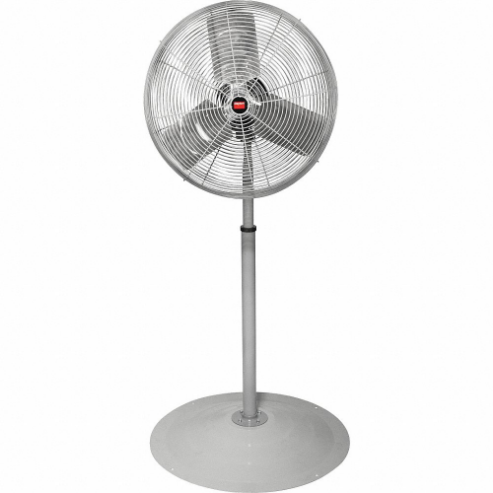

DAYTON 7DC93 Industrial Fan, 18 Inch Blade Dia., 2 Speeds, 2900/4500 cfm, 115V AC, 1 Phase
Get it by Tuesday, Mar 31
5.00% off
€496.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fan |
| Air Flow | 2900/4500 CFM |
| Air Velocity @ 10 Ft. | 970/670 FPM |
| Air Velocity @ 20 Ft. | 360/310 FPM |
| Air Velocity @ 40 Ft. | 110/95 FPM |
| Amps | 1.7/1.6A |
| Assembled | Yes |
| Assembly Required | No |
| Bearing Type | Ball |
| Blade Diameter | 18" |
| Blade Material | Aluminum |
| Cord Length | 10 ft. |
| Depth | 14 1/4" |
| Drive Type | Direct Drive |
| Environmental Applications | Industrial |
| Fan Accessory Style | Standard |
| Fan Cord Length | 10 ft. |
| Fan Housing Material | Steel |
| Fan Mounting Location | Pedestal |
| Fan Style | Standard |
| Guard Material | Steel |
| Height | 23" |
| Hz | 60 Hz |
| Includes | Mounting Bolts, Hex Key, Assembly Hardware |
| Max. Ambient Temp. | 104°F |
| Mobile/stationary | Stationary |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Hp | 1/4 hp |
| Motor Insulation | Class B |
| Motor Type | Permanent Split Capacitor |
| Number Of Blades | 3 |
| Number Of Speeds | 2 |
| Oscillating | No |
| Oscillation | Non Oscillating |
| Phase | 1 |
| Product Type | Standard-Duty Industrial Fan |
| Rpm | 1075/700 RPM |
| Shaft Dia. | 1/2" |
| Sound Level | 70 dBA |
| Thermal Protection | Auto |
| Voltage | 115V AC |
| Watts | 183/147 W |
| Wheeled Base | Stationary |
| Width | 23" |
| Wire Guard Finish | Polyester Powder Coated |
Shipping Info:
| Ship weight (kg) | 34.04 |
| Ship height (cm) | 58.42 |
| Ship length (cm) | 36.2 |
| Ship width (cm) | 58.42 |
| Country of Origin | CN |
Product Variants
| Product | Model | Height | Depth | Max. Ambient Temp. | Motor Hp | Voltage | Sound Level | Number Of Speeds | Air Flow | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
7DD01 | 27" | 12 1/4" | 104°F | 1/3 hp | 115V AC | 74 dBA | 2 | 3800/6100 CFM | €609.73 | |
 |

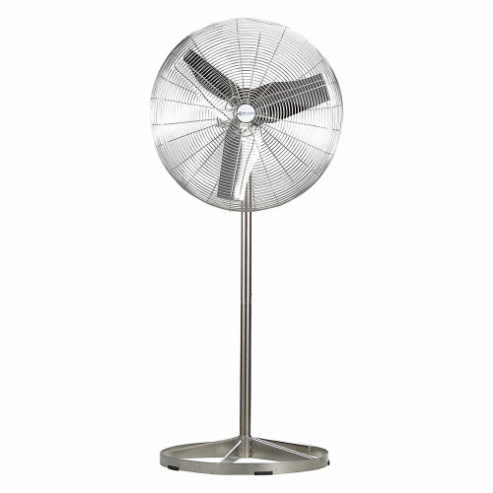

216NV3 | 33" | 15" | 105°F | 1/4 hp | 115/230V AC | 77 dBA | 1 | 5220 CFM | €3,409.06 | |
|
7DC99 | 23" | 16 3/4" | 104°F | 1/4 hp | 115V AC | 76 dBA | 2 | 3055/4700 CFM | €613.72 | |
|
7DD05 | 33" | 14 1/4" | 104°F | 1/2 hp | 115V AC | 78 dBA | 2 | 8712/9704 CFM | €751.42 | |
|
7DC97 | 23" | 12 1/4" | 104°F | 1/4 hp | 115V AC | 76 dBA | 2 | 3055/4700 CFM | €505.64 | |
 |

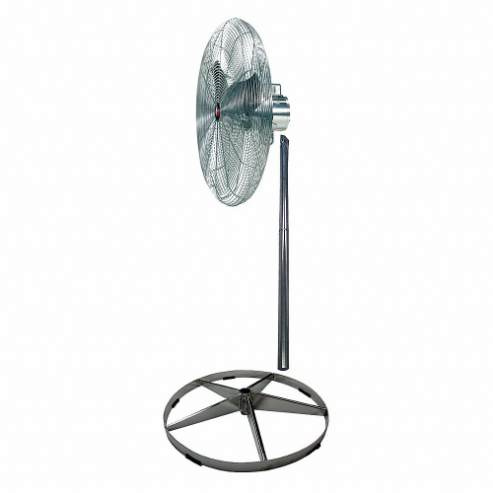

216NV2 | 22 1/2" | 10 1/2" | 105°F | 1/15 hp | 115V AC | 68 dBA | 1 | 2670 CFM | €2,973.38 | |
|
7DC95 | 23" | 14 1/4" | 104°F | 1/4 hp | 115V AC | 70 dBA | 2 | 2900/4500 CFM | €599.72 |
