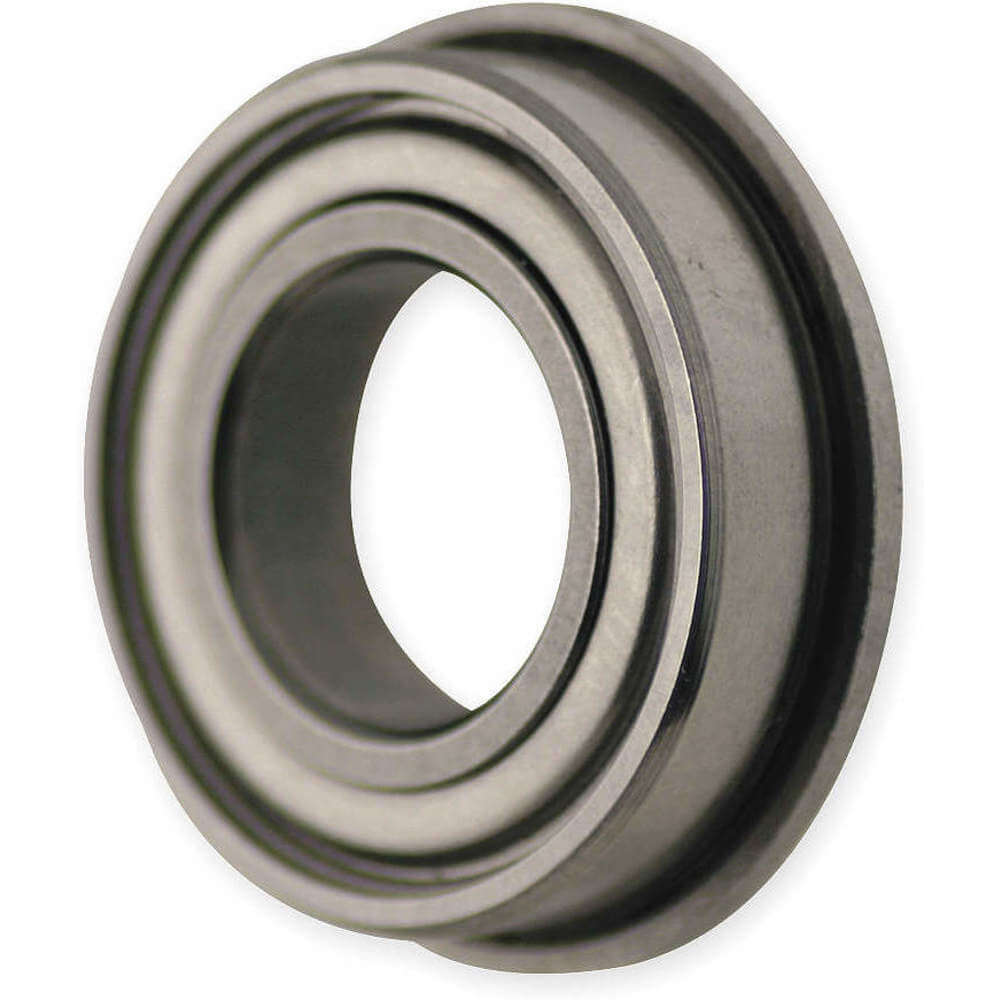

DAYTON 1ZGJ4 Radial Bearing Flanged Bore 15 Mm
Item: AB4NLBModel: 1ZGJ4
7 In Stock
Ships within 2 days via
5.00% off
€14.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Radial Ball Bearing |
| Abec Rating | 1 |
| Abec Tolerance Rating | 1 |
| Application | Radial And Thrust Load Application |
| Bearing Finish | Chrome Plated |
| Bearing Industry Number | 61802 |
| Bearing Material | Steel |
| Bearing Type | Double Shielded, Flanged |
| Bore Dia. | 15 mm |
| Bore Dia. Tolerance | -10 µm to 0 µm |
| Cage Finish | Chrome |
| Cage Material | Steel |
| Closure | Double Shielded |
| Dynamic Load Capacity | Not Available |
| Flange Dia. | 26 mm |
| Flange Thickness | 1.1 mm |
| Flange Type | Flanged |
| Included Retaining Ring | No |
| Lubricant Material | Grease |
| Lubrication | Grease |
| Max. Speed | 28000 RPM |
| No. Of Rows | 1 |
| Outer Ring Width | 5 mm |
| Outside Dia. | 24 mm |
| Outside Dia. Tolerance | -13 µm to 0 µm |
| Retaining Ring Dia. | Not Applicable |
| Retaining Ring Groove | No |
| Retaining Ring Thickness | Not Applicable |
| Ring Material | Alloy, Steel |
| Seal/shield Type | Double Shielded |
| Shield Finish | Chrome Plated |
| Shield Material | Alloy Steel |
| System Of Measurement | Metric |
| Width | 5 mm |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 0.64 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 2.54 |
| HS code | 8482105044 |
| Country of Origin | CN |
Product Variants
| Model | Bore Dia. | Bearing Type | Outer Ring Width | Seal/shield Type | Flange Dia. | Flange Thickness | Closure | Bearing Industry Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1ZGD8 | 1/8" | Double Shielded, Flanged | 0.156" | Double Shielded | 11/25" | 0.031" | Double Shielded | - | €8.48 | |
| 1ZGD9 | 0.187" | Double Shielded, Flanged | 0.196" | Double Shielded | 0.565" | 0.042" | Double Shielded | R3 | €7.40 | |
| 1ZGE1 | 1/4" | Double Shielded, Flanged | 0.196" | Double Shielded | 0.69" | 0.042" | Double Shielded | R4 | €7.92 | |
| 1ZGE2 | 3/8" | Double Shielded, Flanged | 0.281" | Double Shielded | 0.969" | 0.062" | Double Shielded | R6 | €9.56 | |
| 1ZGE3 | 1/2" | Double Shielded, Flanged | 0.312" | Double Shielded | 1.225" | 0.062" | Double Shielded | R8 | €13.56 | |
| 1ZGE4 | 1/8" | Double Sealed, Flanged | 0.156" | Double Sealed | 11/25" | 0.031" | Double Sealed | - | €9.00 | |
| 1ZGE5 | 0.187" | Double Sealed, Flanged | 0.196" | Double Sealed | 0.565" | 0.042" | Double Sealed | R3 | €9.00 |
