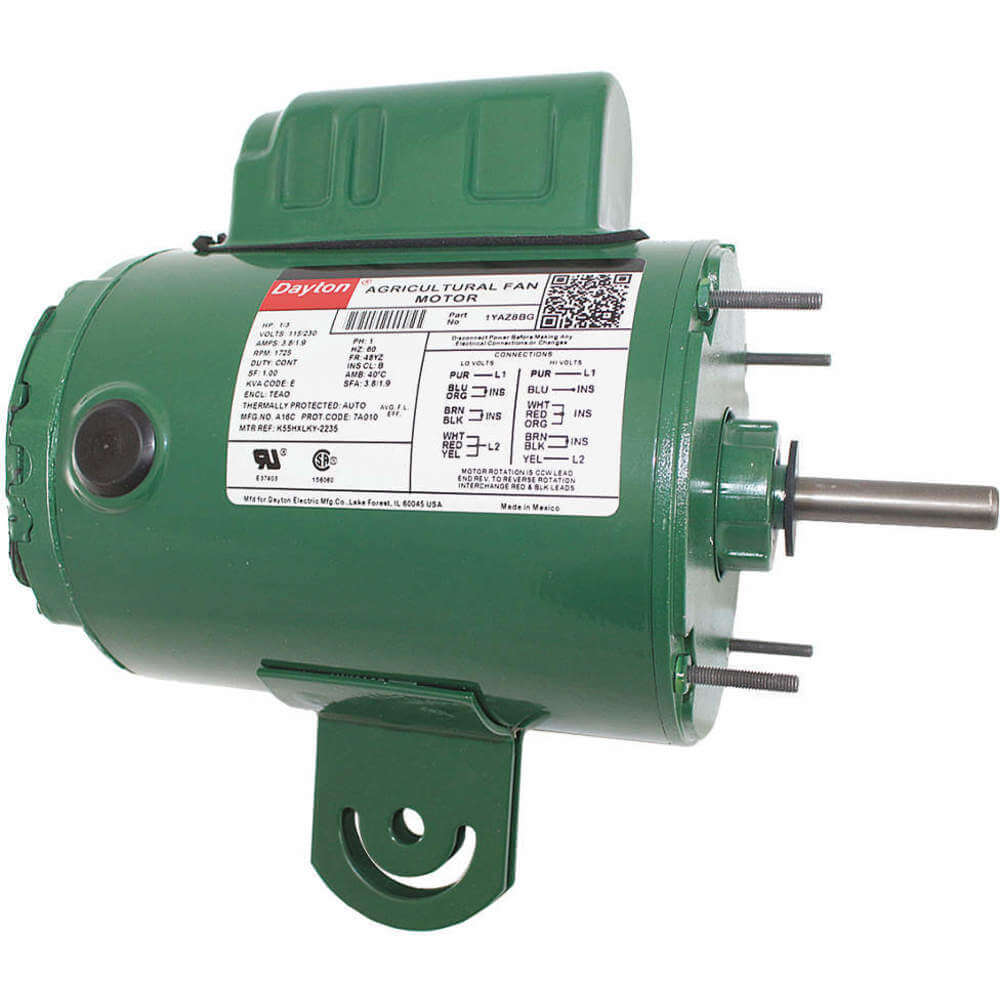

DAYTON 1YAZ8 Aeration Fan Motor Psc Teao 1/3hp 1725 Rpm
Get it by Wednesday, Jul 1
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€391.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Aeration Fan Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor Required | Included |
| Color | Green |
| Duty | Continuous Air Over |
| Duty Cycle | Continuous |
| Efficiency | 61% |
| Frame | 48YZ |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3.8/1.9A |
| Hp | 1/3 hp |
| Included | Shaft Slinger, Gasketed Capacitor Cover, Extended Thru Bolts, Extended Thru Bolts |
| Ins. Class | Class B |
| Length Less Shaft | 8 1/8" |
| Max. Ambient Temp. | 40°C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Yoke |
| Motor Service Factor | 1 |
| Motor Shaft Design | Double Flat |
| Motor Shaft Rotation | CW, CCW |
| Motor Sub Application | Agricultural Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Yoke |
| Nameplate Speed | 1725 RPM |
| No. Of Speed | 1 |
| Nominal Efficiency | 61% |
| Overall Length | 10 9/16" |
| Phase | 1 |
| Replacement For | 4M255 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 7/16" |
| Shaft Type | Double Flat |
| Thermal Protection | Automatic |
| Voltage | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 8.25 |
| Ship height (cm) | 27.43 |
| Ship length (cm) | 34.54 |
| Ship width (cm) | 24.13 |
| HS code | 8501514040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Hp | Motor Mounting Type | Overall Length | Shaft Length | Efficiency | Motor Mounting Position | Capacitor Required | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

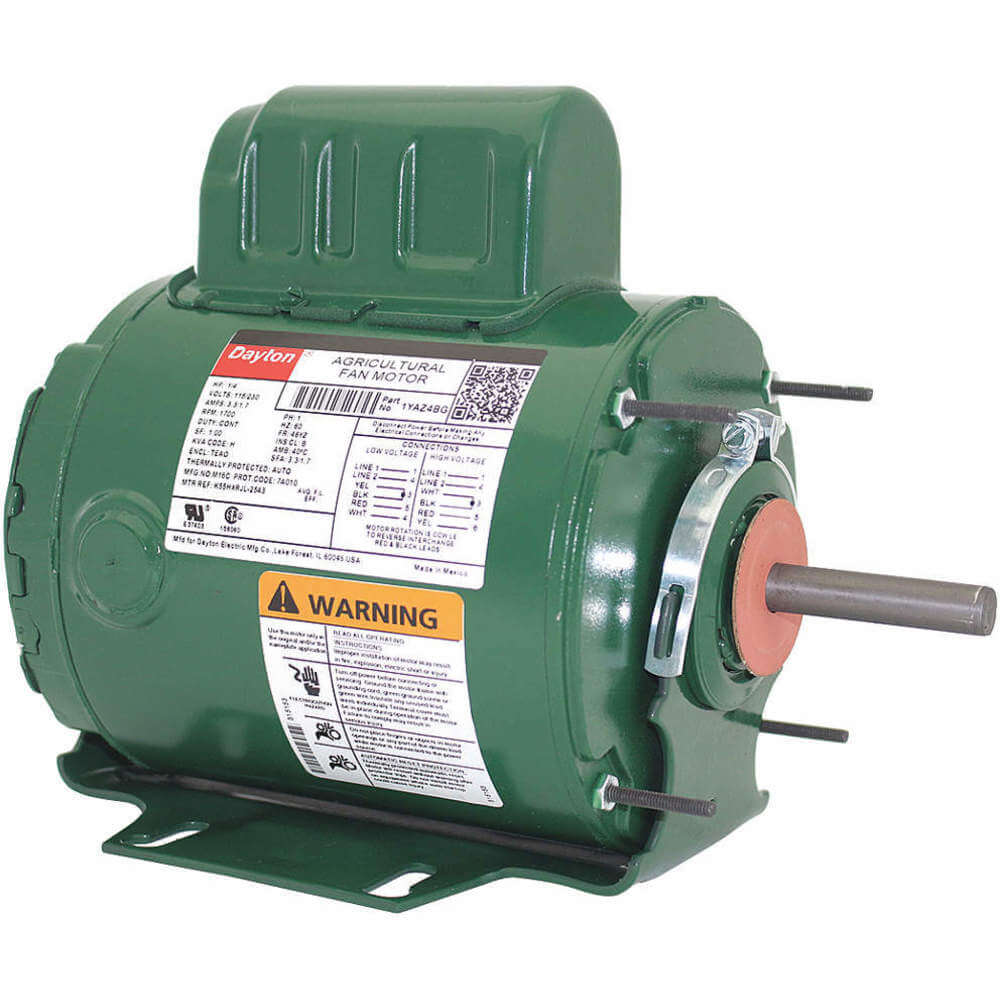

1YAZ4BG | 1/4 hp | Cradle Base | 9 15/16" | 2 7/16" | 62.5% | Horizontal | Yes | Green | €335.83 | |
 |

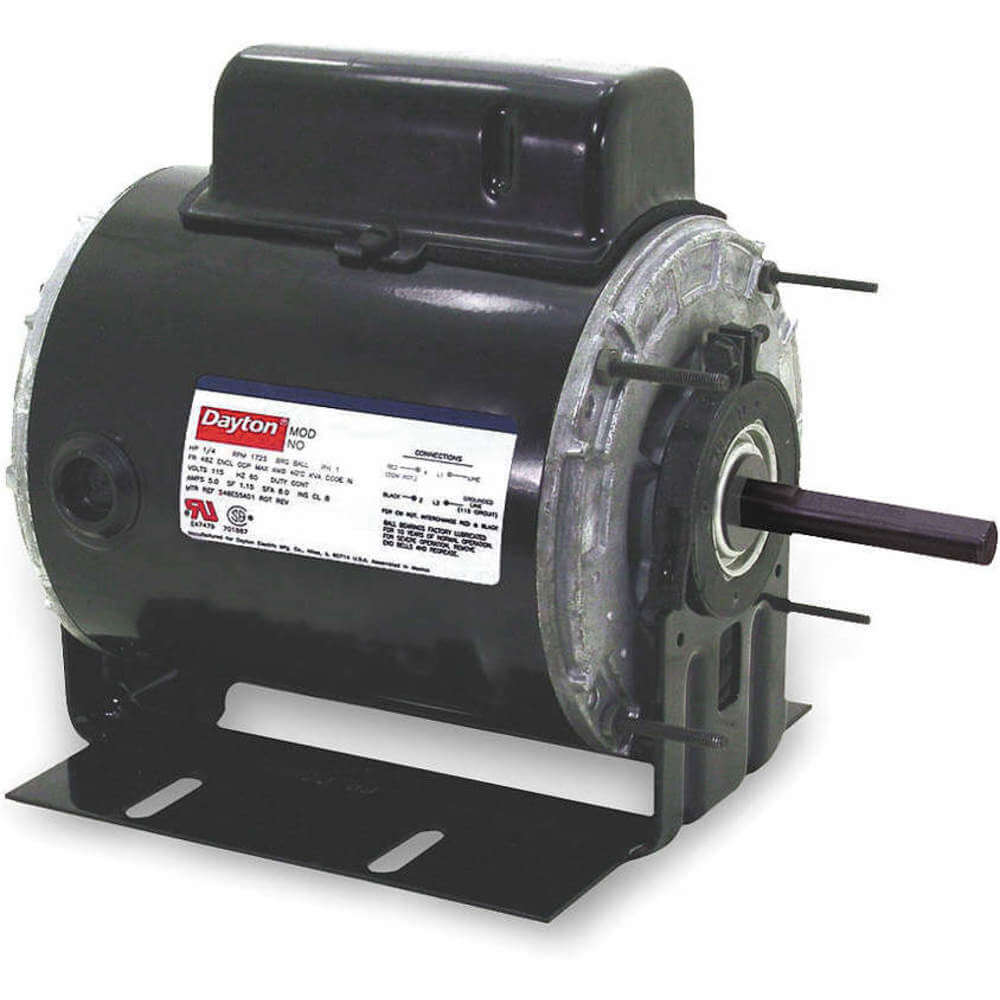

1YAZ5 | 1/3 hp | Cradle Base | 10 7/16" | 2 1/2" | 61% | Horizontal | Included | Gray | €358.44 | |
 |

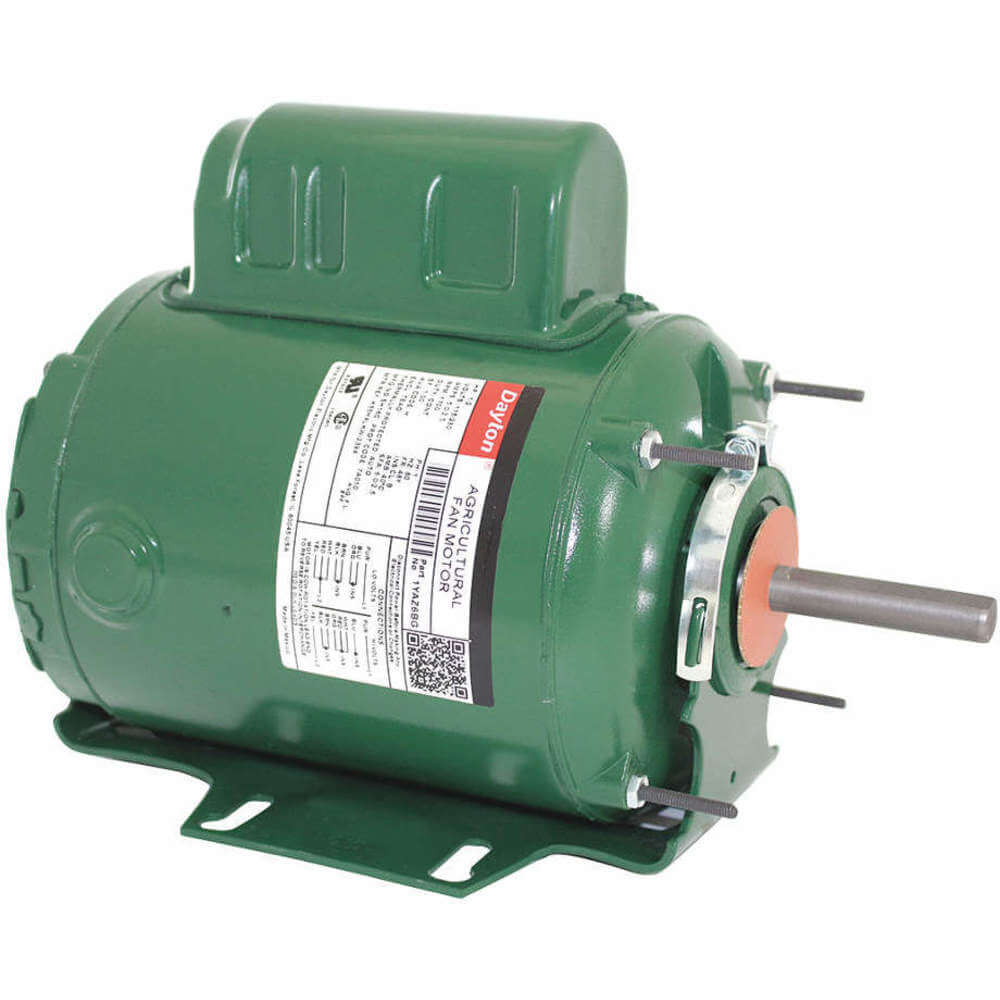

1YAZ6BG | 1/2 hp | Cradle Base | 10 15/16" | 2 1/2" | 70.8% | Horizontal | Yes | Gray | €428.40 | |
 |

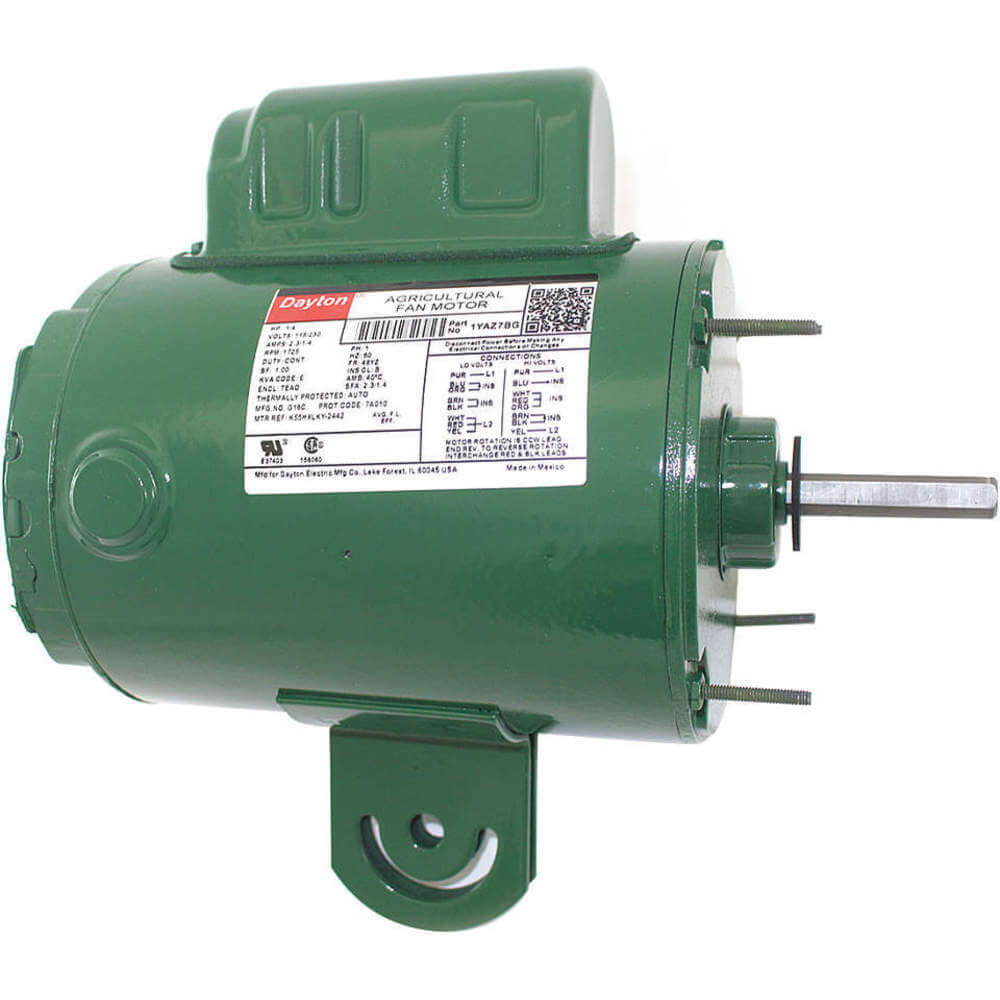

1YAZ7BG | 1/4 hp | Yoke | 10 1/2" | 2 7/16" | 68.5% | All Angle | Yes | Green | €420.51 | |
 |
1YAZ9BG | 1/2 hp | Yoke | 10 9/16" | 2 1/2" | 69.6% | All Angle | Yes | Green | €450.29 |
