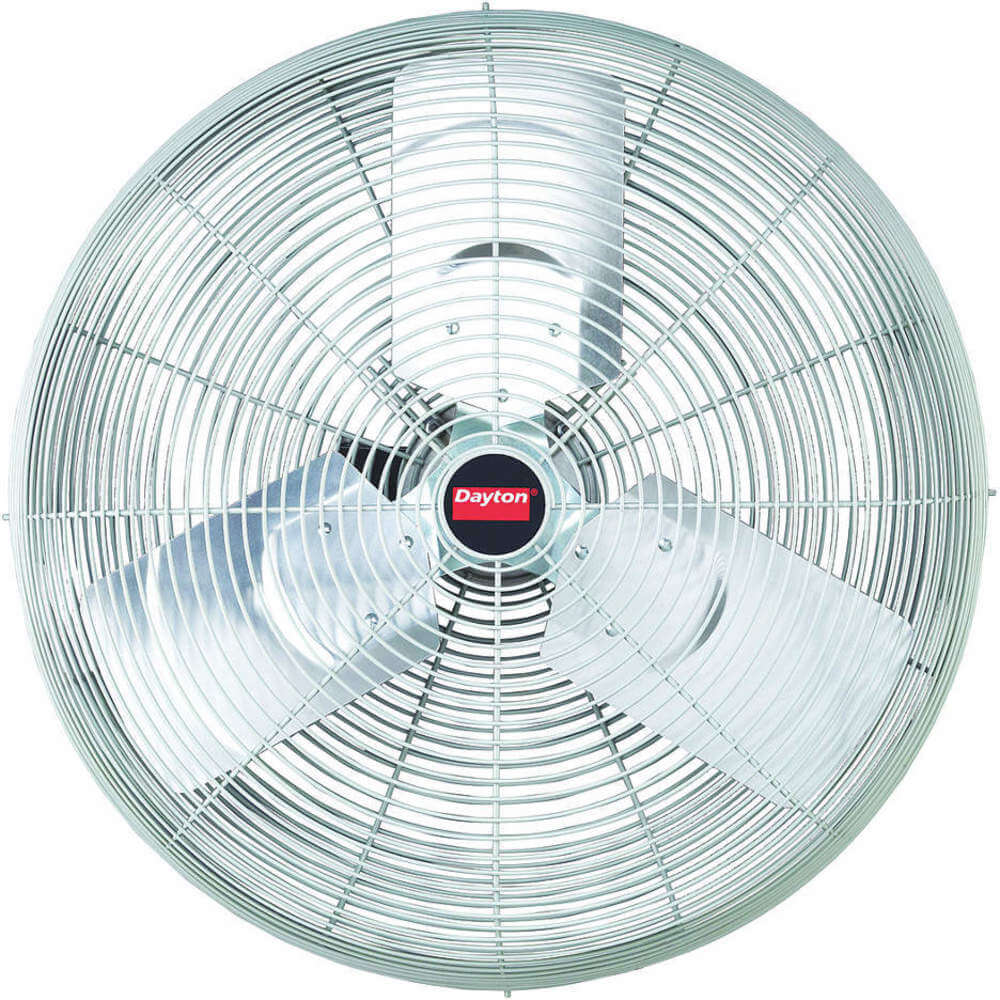

DAYTON 1VCF3 Air Circulator 24 Inch 6400 Cfm 115v
Get it by Friday, Dec 19
10.00% off
€467.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Circulator |
| Air Flow | 4500/6450 CFM |
| Air Velocity (fpm) @ 10 Ft. | 1020/710 |
| Air Velocity (fpm) @ 20 Ft. | 410/325 |
| Air Velocity (fpm) @ 40 Ft | 185/145 |
| Air Velocity (fpm) @ 40 Ft | 185/145 FPM |
| Air Velocity (fpm) @ 60 Ft. | 80/60 FPM |
| Air Velocity (fpm) @ 60 Ft. | 80/60 |
| Air Velocity @ 10 Ft. | 1000/850 FPM |
| Air Velocity @ 20 Ft. | 600/500 FPM |
| Air Velocity @ 40 Ft. | 200/120 FPM |
| Amps | 4.2/3.3A |
| Assembled | Yes |
| Assembly Required | No |
| Bearing Type | Ball |
| Blade Dia. | 24" |
| Blade Material | Aluminum |
| Cfm Low | 4460 |
| Cfm/watt | 13.86 CFM/W |
| Cfm/watt | 13.86 |
| Color | Gray |
| Cord Length | 10 ft. |
| Depth | 18 1/4" |
| Drive Type | Direct Drive |
| Environmental Applications | Industrial |
| Fan Accessory Style | Standard |
| Fan Cord Length | 10 ft. |
| Fan Housing Material | Steel |
| Fan Mounting Location | Fan Head Only |
| Fan Speed | 1075/600 RPM |
| Fan Style | Standard |
| Guard Material | Steel |
| Height | 27" |
| Height Adjustment | Fixed Height |
| Housing Material | Steel |
| Hz | 60 Hz |
| Includes | Mounting Bolts |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 17 3/4" |
| Mobile/stationary | Mobile |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Hp | 1/2 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 1075/750 RPM |
| Motor Type | Permanent Split Capacitor |
| Mounting Location | I Beam, Pedestal, Wall |
| Nema Plug Configuration | 5-15P |
| No. Of Conductors | 3 |
| Number Of Blades | 3 |
| Number Of Speeds | 2 |
| Oscillating | Yes |
| Oscillating/non-oscillating | Oscillating |
| Oscillation | Oscillating |
| Outside Dia. | 27" |
| Phase | 1 |
| Product Type | Standard-Duty Industrial Fan |
| Rpm | 1100/850 RPM |
| Shaft Dia. | 1/2" |
| Sound Level | 74 dBA |
| Thermal Protection | Automatic Reset |
| Voltage | 115V AC |
| Wattage | 429/353 W |
| Watts | 440/360 W |
| Wheeled Base | Stationary |
| Width | 27" |
Shipping Info:
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 50.29 |
| Ship length (cm) | 68.07 |
| Ship width (cm) | 68.33 |
| HS code | 8414596090 |
| Country of Origin | CN |
Product Details:
- Mobile/Stationary (Stationary)
Product Variants
| Product | Model | Blade Dia. | Phase | Number Of Speeds | Oscillating/non-oscillating | Motor Hp | Voltage | Sound Level | Assembled | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
13F045 | 18" | 1 | 2 | Non Oscillating | 1/4 hp | 115V AC | 72 dBA | Yes | €393.74 | |
 |
13F047 | 18" | 1 | 2 | Oscillating | 1/4 hp | 115V AC | 72 dBA | Yes | €472.27 | |
 |
13V398 | 18" | 1 | 2 | Oscillating | 1/5 hp | 120V AC | 70 dBA, 66 dBA | No | €371.05 | |
|
13V399 | 20" | 1 | 2 | Oscillating | 1/5 hp | 120V AC | 68 dBA, 65 dBA | No | €364.52 | |
 |
13V401 | 18" | 1 | 2 | Oscillating | 1/5 hp | - | 70 dBA, 66 dBA | No | €351.64 | |
|
13V402 | 20" | 1 | 2 | Oscillating | 1/5 hp | 120V AC | 68 dBA, 65 dBA | No | €408.45 | |
 |
1LXN4 | 30" | 1 | 1 | Non Oscillating | 1 hp | 115V AC | 92 dBA | Yes | €2,175.97 |
