DAYTON 1TMW3 Farm Duty Motor Capacitor Start Tefc 1/3hp 1725rpm
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€596.31 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Farm Duty Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Capacitor Required | Included |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 57.5% |
| Finish | Enamel |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6.6/3.3A |
| Hp | 1/3 hp |
| Includes | Shaft Slinger, Gasketed Conduit Box, Shaft Key, Removable Base |
| Ins. Class | Class B |
| Length Less Shaft | 9" |
| Max. Ambient Temp. | 40°C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | High Torque |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 57.5% |
| Number Of Speeds | 1 |
| Overall Length | 10 7/8" |
| Phase | 1 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Manual |
| Voltage | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 27.69 |
| Ship length (cm) | 49.78 |
| Ship width (cm) | 29.21 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Hp | Motor Design | Frame | Overall Length | Shaft Length | Efficiency | Capacitor Required | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1TMW2BG | 2 hp | Capacitor Start/Run | 145TC | 14 7/16" | 2 1/8" | 81.5% | Yes | 115/230V AC | €1,157.41 | |
 |
1TMW5 | 1/2 hp | Capacitor Start | 56C | 11 3/8" | 1 7/8" | 62% | Included | 115/230V AC | €550.45 | |
 |

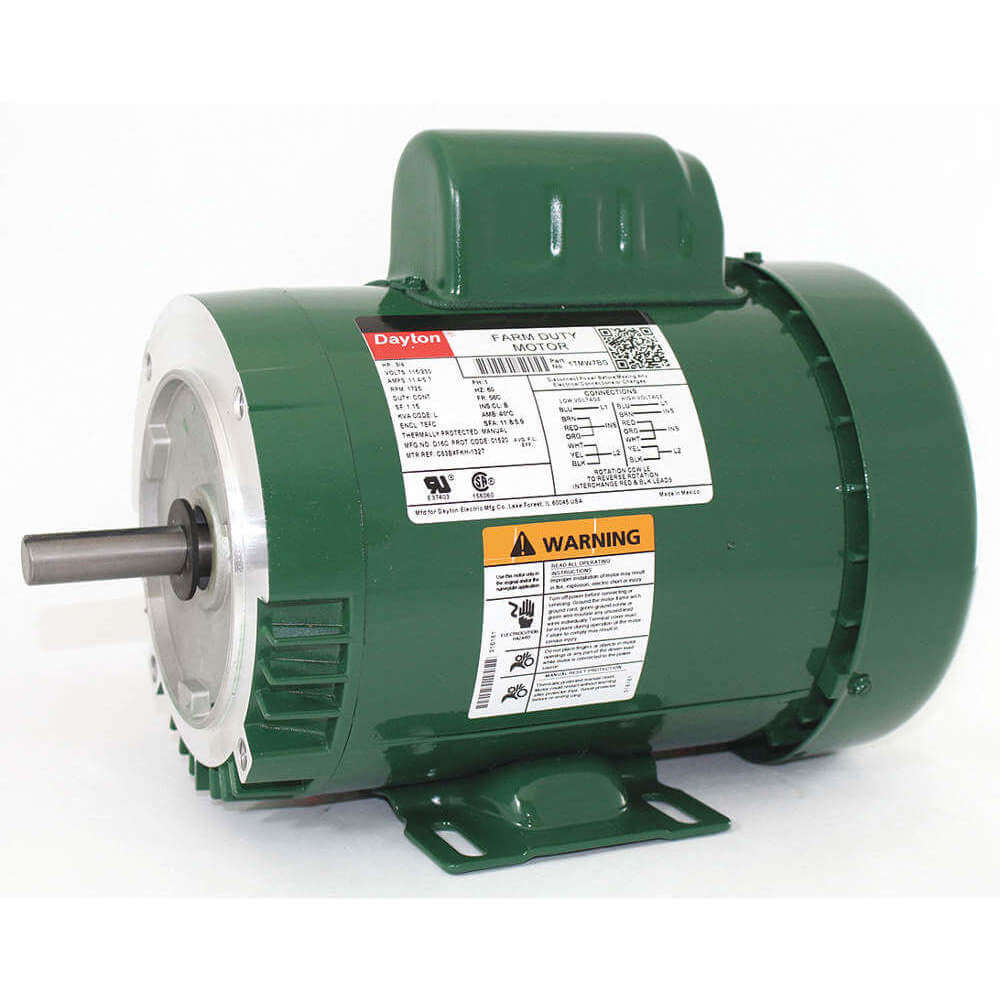

1TMW7BG | 3/4 hp | Capacitor Start | 56C | 11 15/16" | 1 7/8" | 67.7% | Yes | 115/230V AC | €677.77 | |
 |

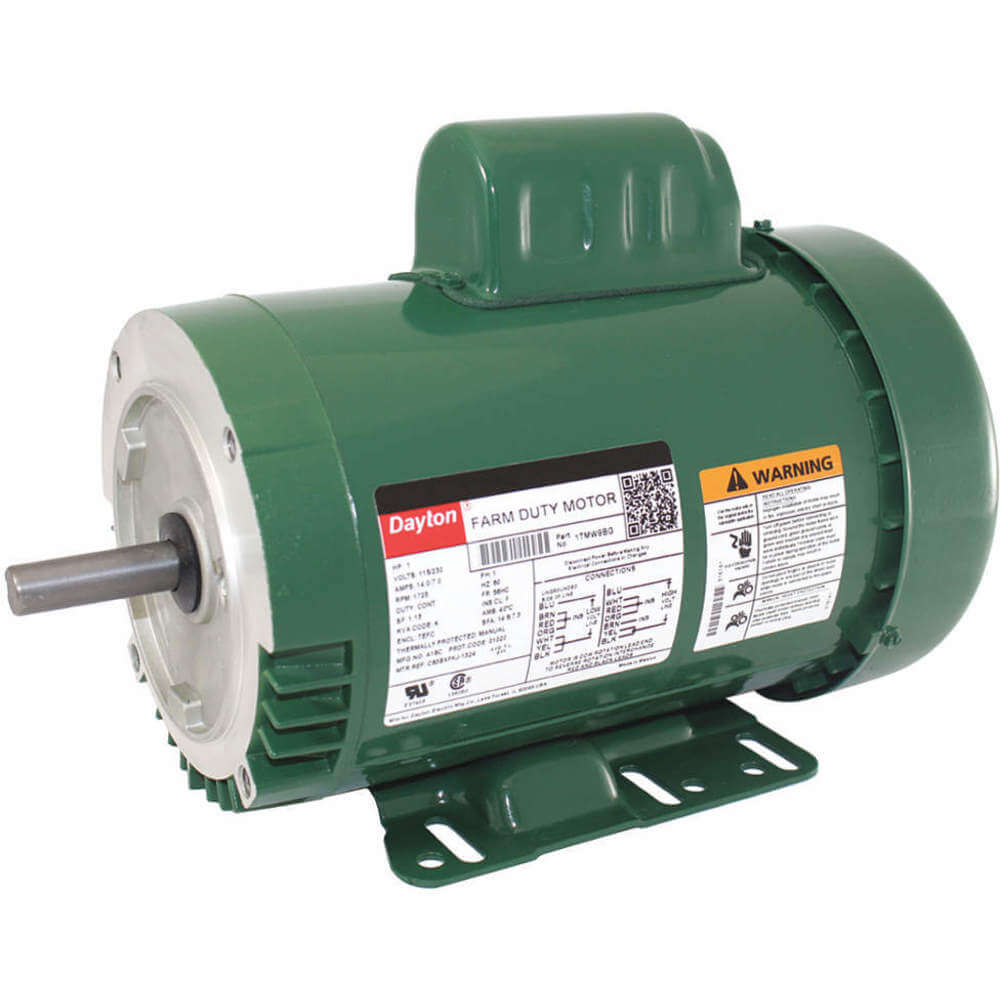

1TMW9 | 1 hp | Capacitor Start | 56HC | 12 7/8" | 1 7/8" | 69% | Included | 115/230V AC | €815.72 | |
 |

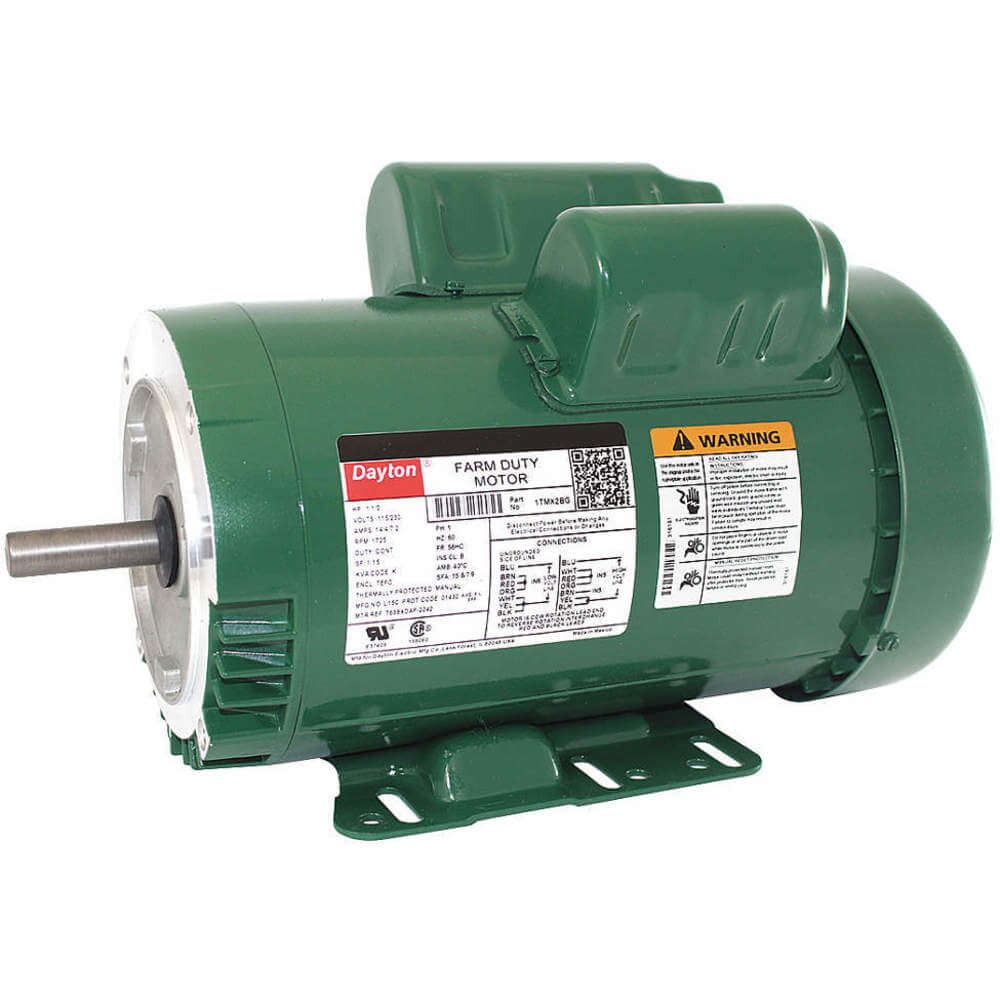

1TMX2 | 1 1/2 hp | Capacitor Start/Run | 56HC | 13 7/8" | 1 7/8" | 81.8% | Included | 115/230V AC | €894.41 |
