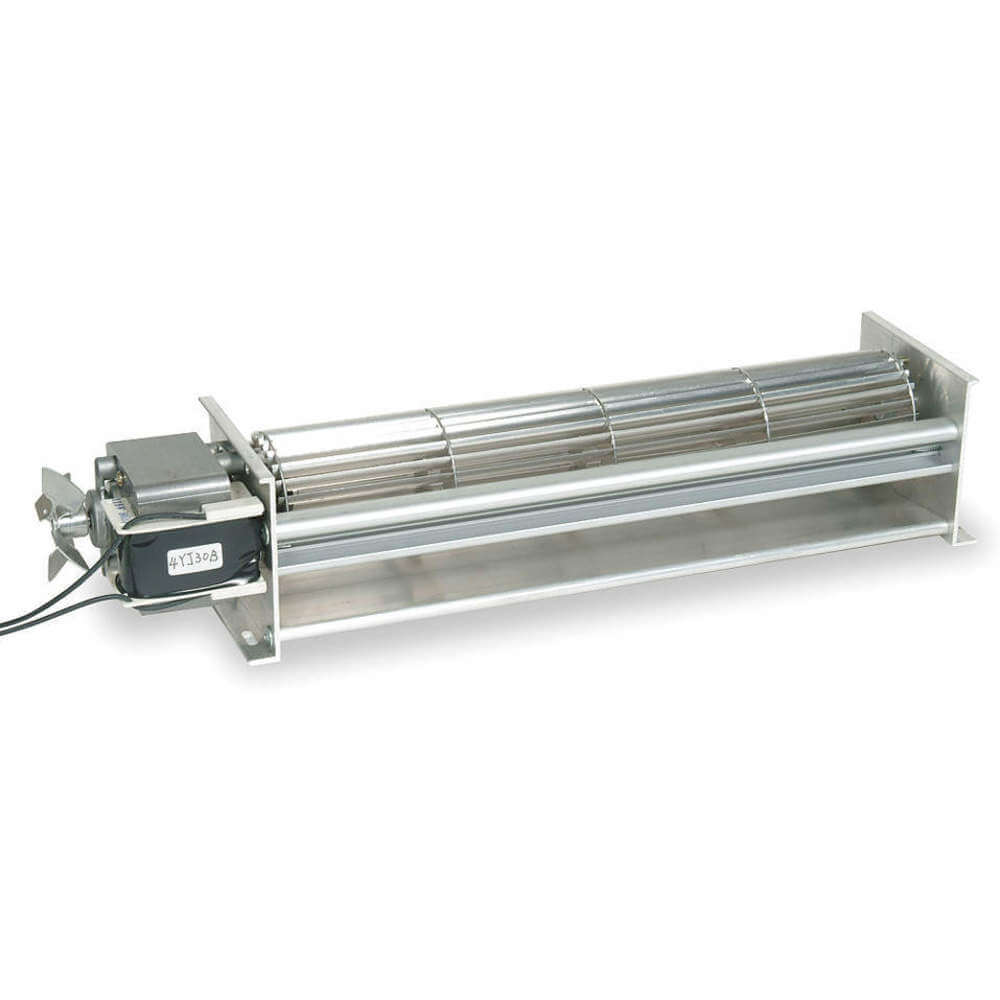

DAYTON 1TDU3 Blower 77 Cfm 115v 0.50a 3130 Rpm
Item: AB3HCRModel: 1TDU3
7 In Stock
Ships within 2 days via
10.00% off
€138.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | OEM Blower |
| Airflow @ 0.000 In Sp | 77 CFM |
| Airflow @ 0.100 In Sp | 64 CFM |
| Airflow @ 0.200-in. Sp | 40 CFM |
| Airflow @ 0.250 In Sp | 14.6 CFM |
| Amps | 0.5A |
| Assembly | Assembled |
| Bearing Type | Sleeve |
| Blower Conduit Box | No |
| Blower Item | Transflow Blower |
| Blower Outlet Shape | Rectangular |
| Blower Type | Transflow Blower |
| Blower Wheel Diameter | 2 7/16" |
| Blower Wheel Width | 4 1/2" |
| Cfm @ 0.000-in. Sp | 77 |
| Cfm @ 0.100-in. Sp | 64 |
| Cfm @ 0.200-in. Sp | 40 CFM |
| Current | 0.5A |
| Dimension A | 4 3/16" |
| Dimension B | 3 1/2" |
| Dimension C | 7 15/16" |
| Dimension D | 6 5/16" |
| Dimension E | 10 7/8" |
| Dimension W | 5 3/4" |
| Drive Type | Direct Drive |
| For Ventilation Type | Exhaust |
| Full Load Amps | 0.5A |
| Housing Depth | 7.9" |
| Housing Height | 3 1/2" |
| Housing Material Grade | Carbon Steel , Grade C45 |
| Housing Width | 4.1" |
| Hz | 60 Hz |
| Lead Length | 13" |
| Max. Ambient Temp. | 104°F |
| Max. Inlet Temp. | 104°F |
| Maximum Inlet Air Temperature | 104°F |
| Maximum Static Pressure | 0.25 in. wc |
| Motor Duty Class | Continuous |
| Motor Enclosure Design | Open |
| Motor Horsepower | 1/100 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 3130 RPM |
| Motor Type | Shaded Pole |
| Mounting Orientation | Multiposition |
| Mounting Position | All Position |
| Nameplate Voltage | 115V AC |
| No. Of Inlets | 1 |
| Number Of Inlets | 1 |
| Oem Replacement | 4C743 |
| Outlet Height | 1" |
| Outlet Shape | Rectangular |
| Outlet Type | Non Flanged |
| Outlet Width | 5 1/8" |
| Overall Depth | 4 1/8" |
| Overall Height | 3 1/2" |
| Overall Width | 7 7/8" |
| Phase | 1 |
| Rpm | 3130 |
| Thermal Overload Protection | Yes |
| Thermal Protection | Auto |
| Wheel Dia. | 2 3/8" , 2.437" |
| Wheel Material | C45 Carbon Steel |
| Wheel Type | Forward Curve |
| Wheel Width | 4 1/2" |
| With Flange | No |
Shipping Info:
| Ship weight (kg) | 1.4 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 10.64 |
| Ship width (cm) | 20.16 |
| HS code | 8414596060 |
| Country of Origin | US |
Product Details:
- With/Without Flange (Without Flange)
- Supercedes 4C743
Product Variants
| Product | Model | Outlet Shape | Overall Height | Overall Width | Overall Depth | Outlet Height | Outlet Width | Motor Enclosure Design | Max. Inlet Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1TDN1 | Round | 3 3/4" | 3 3/16" | 4" | Not Applicable | Not Applicable | Open | 104°F | €118.31 | |
 |
1TDN2 | Round | 3 7/8" | 3 15/16" | 4" | Not Applicable | Not Applicable | Open | 104°F | €130.52 | |
 |
1TDN3 | Rectangular | 4 5/8" | 3 1/2" | 4 1/2" | 1 5/8" | 1 1/2" | Open | 104°F | €102.85 | |
|
1TDN4 | Rectangular | 4 1/2" | 4 3/16" | 4 1/2" | 1 5/8" | 2" | Open | 104°F | €102.26 | |
 |
1TDN5 | Rectangular | 4 5/8" | 4 11/16" | 4 1/2" | 1 5/8" | 2" | Open | 104°F | €153.56 | |
 |
1TDN6 | Round | 5 3/4" | 5" | 6 7/16" | Not Applicable | Not Applicable | Open | 104°F | €163.32 | |
 |
1TDN7 | Round | 5 3/4" | 5 1/8" | 6 7/16" | Not Applicable | Not Applicable | Open | 104°F | €149.33 |
