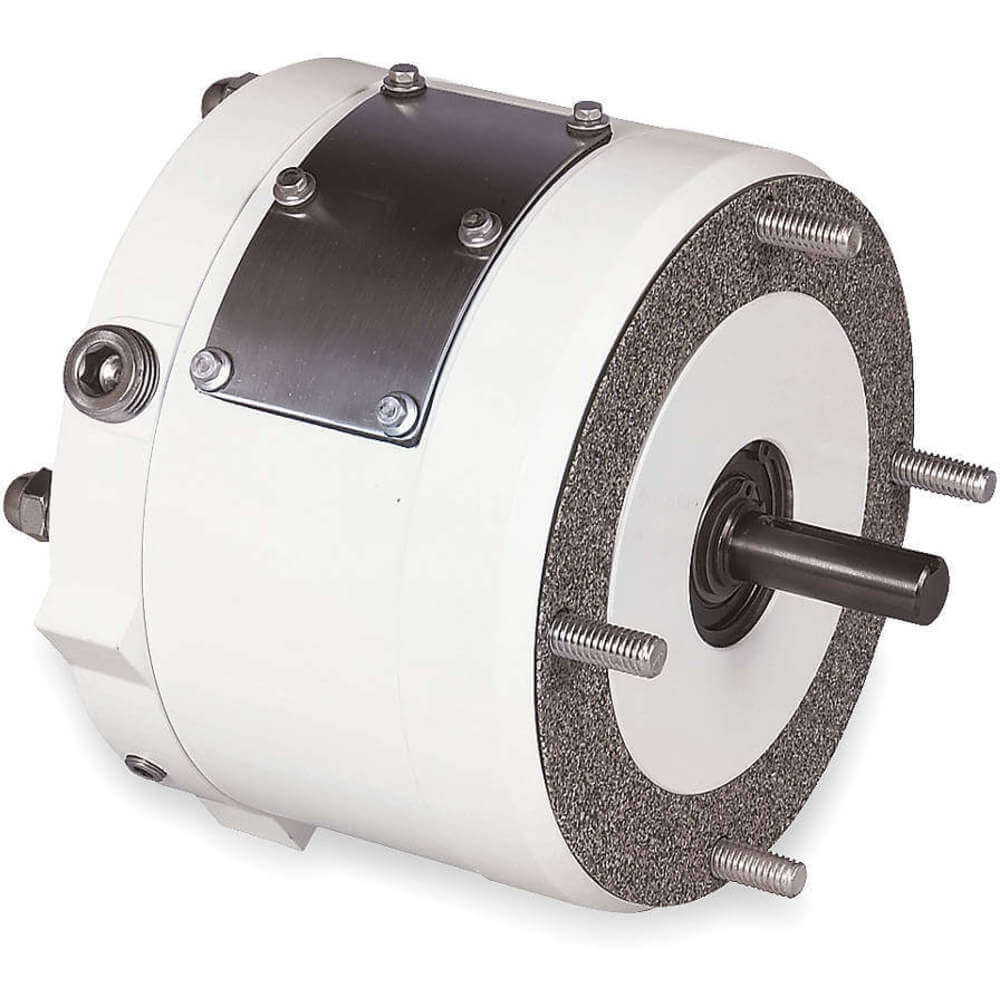

DAYTON 1L388 Brake Motor 3 Feet Lb
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,060.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Brake |
| Ambient (c) | 40 |
| Application | Door Openers, For Rapid Stopping And Holding Power Conveyors, General Machine Drives |
| Bolt Circle Dia. | 5 7/8" |
| Bolt Circle Diameter | 5.875" |
| Brake Mouting Position | Horizontal |
| Clutch/brake Type | C Face Magnetic Disc |
| Coil Voltage | 110/208-220V Ac @ 50 Hz, 115/208-230V Ac @ 60 Hz |
| Continuous Duty | Yes |
| Converts | Nema C-Face Motors And Gearmotors to Brake Motors Or Brake Gearmotors |
| Enclosure Type | Totally Enclosed |
| Finish | Epoxy Paint |
| For Environment | Food Production, Washdown |
| For Use With | Single Phase Motors, When Wired Per Instructions |
| Frequency | 50/60 Hz |
| Horsepower @ Rpm | 1 hp @ 1725 RPM, 2 hp @ 3450 RPM |
| Housing Material Finish | White Epoxy Paint |
| Keyway Depth | 3/32" |
| Keyway Width | 3/16" |
| Lead Length | 15" |
| Lever Release | Manual |
| Lever Type | Manual |
| Max. Ambient Temp. | 40°C |
| Max. Hp @ 1725 Rpm | 1 |
| Max. Hp @ 1725 Rpm | 1 hp |
| Max. Hp @ 3450 Rpm | 2 hp |
| Max. Hp @ 3450 Rpm | 2 |
| Maximum Speed | 3450 RPM |
| Motor Frame Designation | NEMA 56C |
| Mounting Location | Between Motor And Reducer, NEMA C Face Motor |
| Mounting Orientation | Horizontal |
| Mounts On | NEMA C Face Motor or Between Motor and Reducer |
| Nema/iec Frame | 56C |
| Outside Dia. | 6 22/25" |
| Outside Diameter | 6.88" |
| Overall Length | 4.94" |
| Phase | Single |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2" |
| Static Torque | 3 Ft.-Lb. |
| Static Torque | 3 lbs.-ft. |
| Type | C- Face Magnetic Disc |
| Voltage @ 50 Hz | 110/208-220 |
| Voltage @ 60 Hz | 115/208-230V |
Shipping Info:
| Ship weight (kg) | 6.08 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 19.05 |
| HS code | 8505200000 |
| Country of Origin | US |
Product Variants
| Product | Model | Static Torque | Motor Frame Designation | Type | Enclosure Type | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|
|
1L389 | 6 lbs.-ft. | 140Tc Nema | C- Face Magnetic Disc | Totally Enclosed | 5/8" | €1,393.39 |
