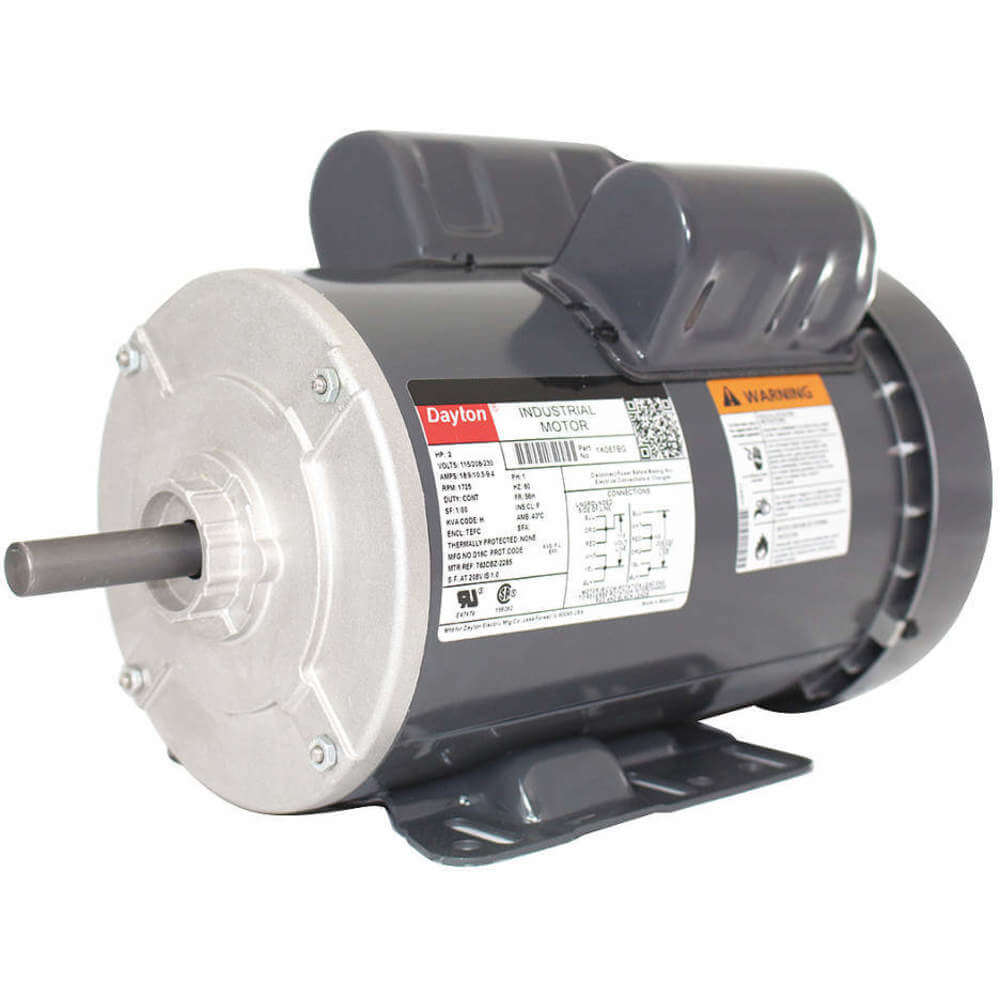

DAYTON 1K067BG General Purpose Motor Carbon Steel Tefc 2 Hp 1725 Rpm 56h
Get it by Friday, Aug 21
5.00% off
€652.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 78.1% |
| Frame | 56H |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 18.9/10.3-9.4A |
| Hp | 2 hp |
| Included | Conduit Box, Shaft Key |
| Insulation Class | Class F |
| Length Less Shaft | 12" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start, Run |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | None |
| Motor Type | Capacitor Start, Run |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 78.1% |
| Overall Length | 13 7/8" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Speed | 1701-1800 RPM |
| Thermal Protection | None |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 24.89 |
| Ship length (cm) | 40.13 |
| Ship width (cm) | 26.42 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Phase | Hp | Frequency | Full Load Amps | Service Factor | Motor Type | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10C899 | 208-230/460V AC | 3 | 3/4 hp | 50/60 Hz | 2.8/1.5A | 1 | Three Phase | Rigid Base | €444.80 | |
 |
10C901 | 208-230/460V AC | 3 | 1/2 hp | 50/60 Hz | 2/1A | 1.15 | Three Phase | Rigid Base | €410.64 | |
 |
11W365 | 230/460V AC | 3 | 1/4 hp | 60 Hz | 1/0.5A | 1.15 | Three Phase | - | €412.90 | |
|
11W368 | 230/460V AC | 3 | 1/3 hp | 60 Hz | 1.5/0.7A | - | Three Phase | - | €408.76 | |
 |
11W369 | 230/460V AC | 3 | 1 1/2 hp | 60 Hz | 4.4/2.2A | 1.15 | Three Phase | - | €1,301.70 | |
 |
01518ST3QAP254T-W22 | 460V AC | 3 | 15 hp | 50/60 Hz | 18A | 1.25 | Three Phase | Rigid Base | €4,875.87 | |
 |
02018ST3QAP256T-W22 | 460V AC | 3 | 20 hp | 50/60 Hz | 24.1A | 1.25 | - | Rigid Base | €6,341.37 |
